·Reduce the Risk of Resin Leakage
Resin 3D Printer

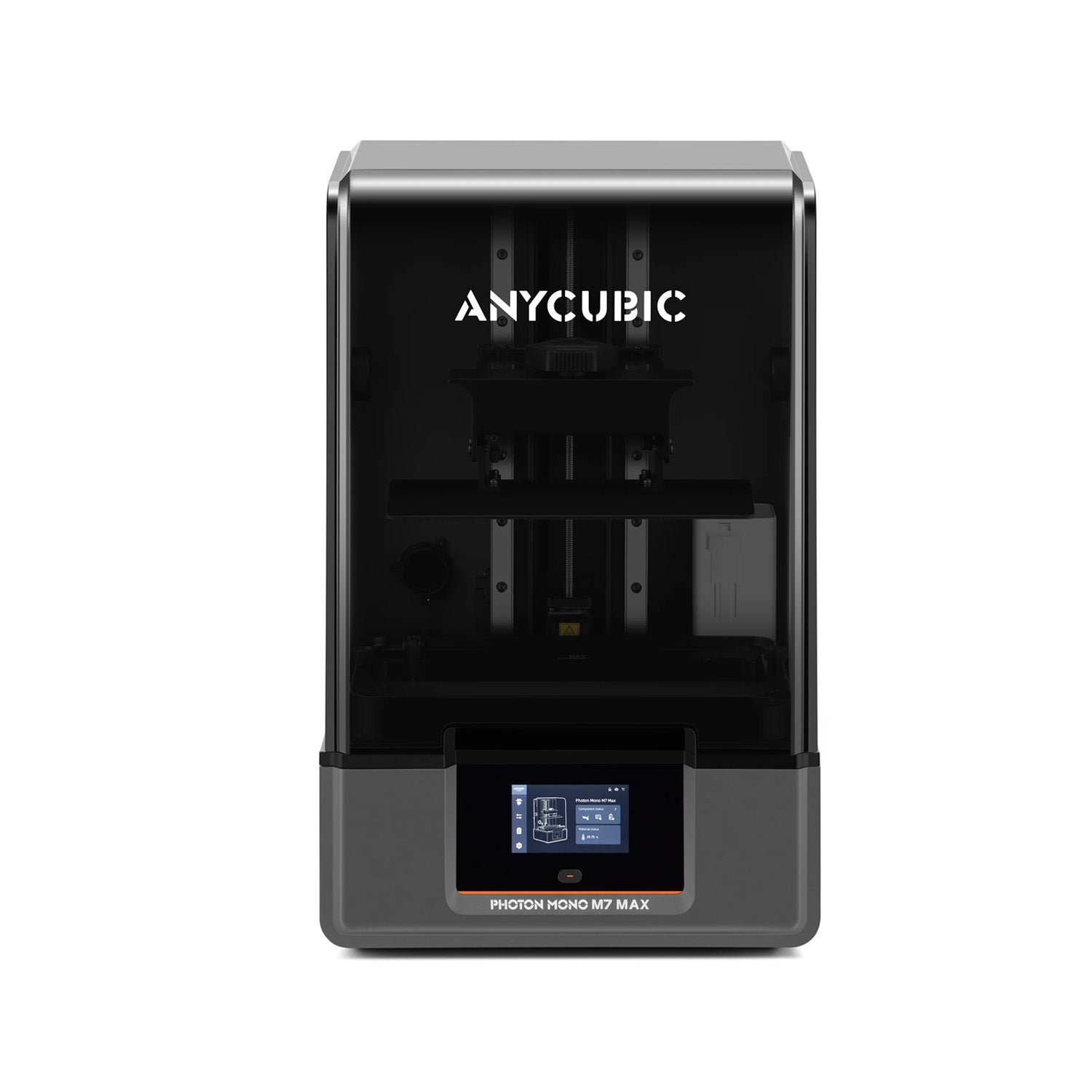

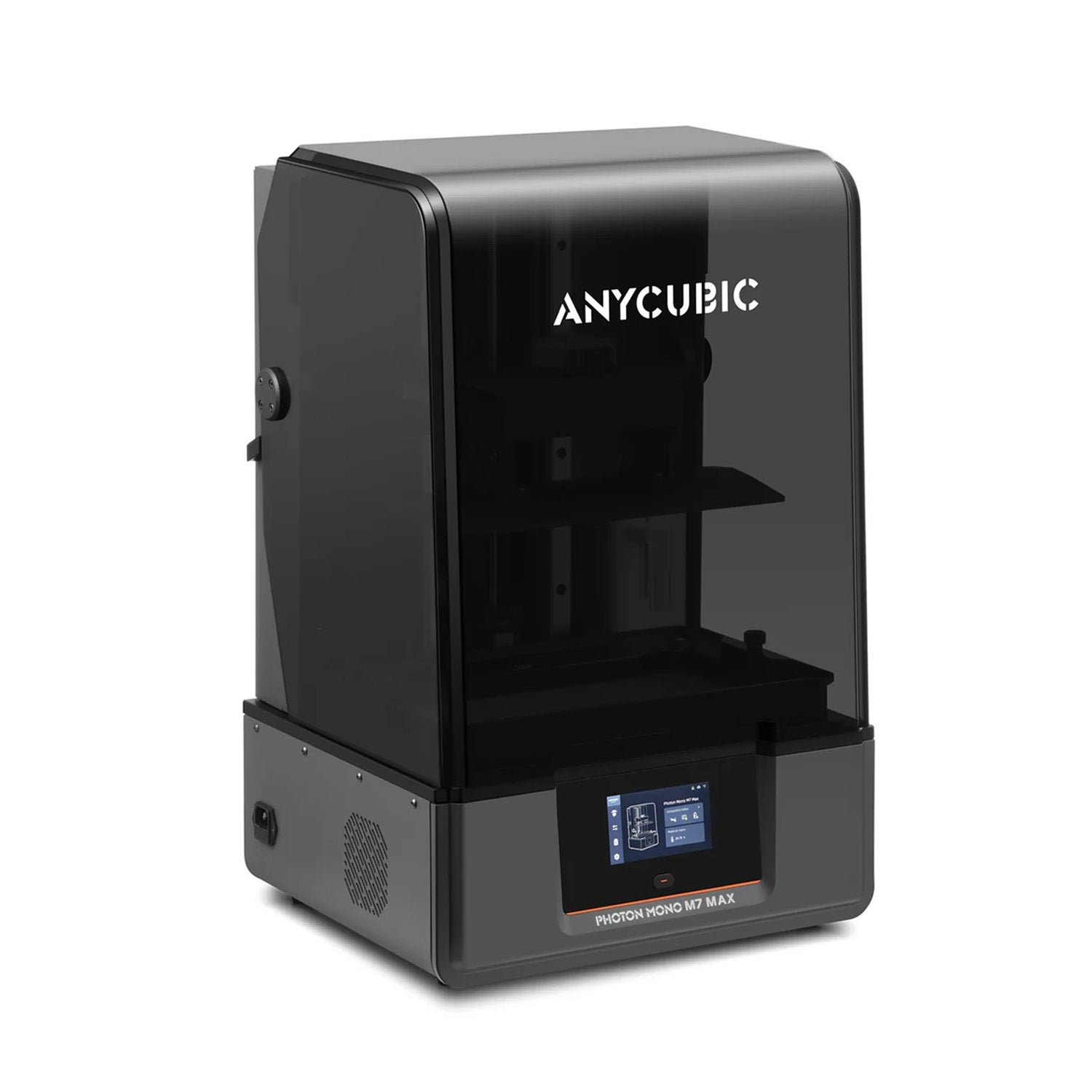

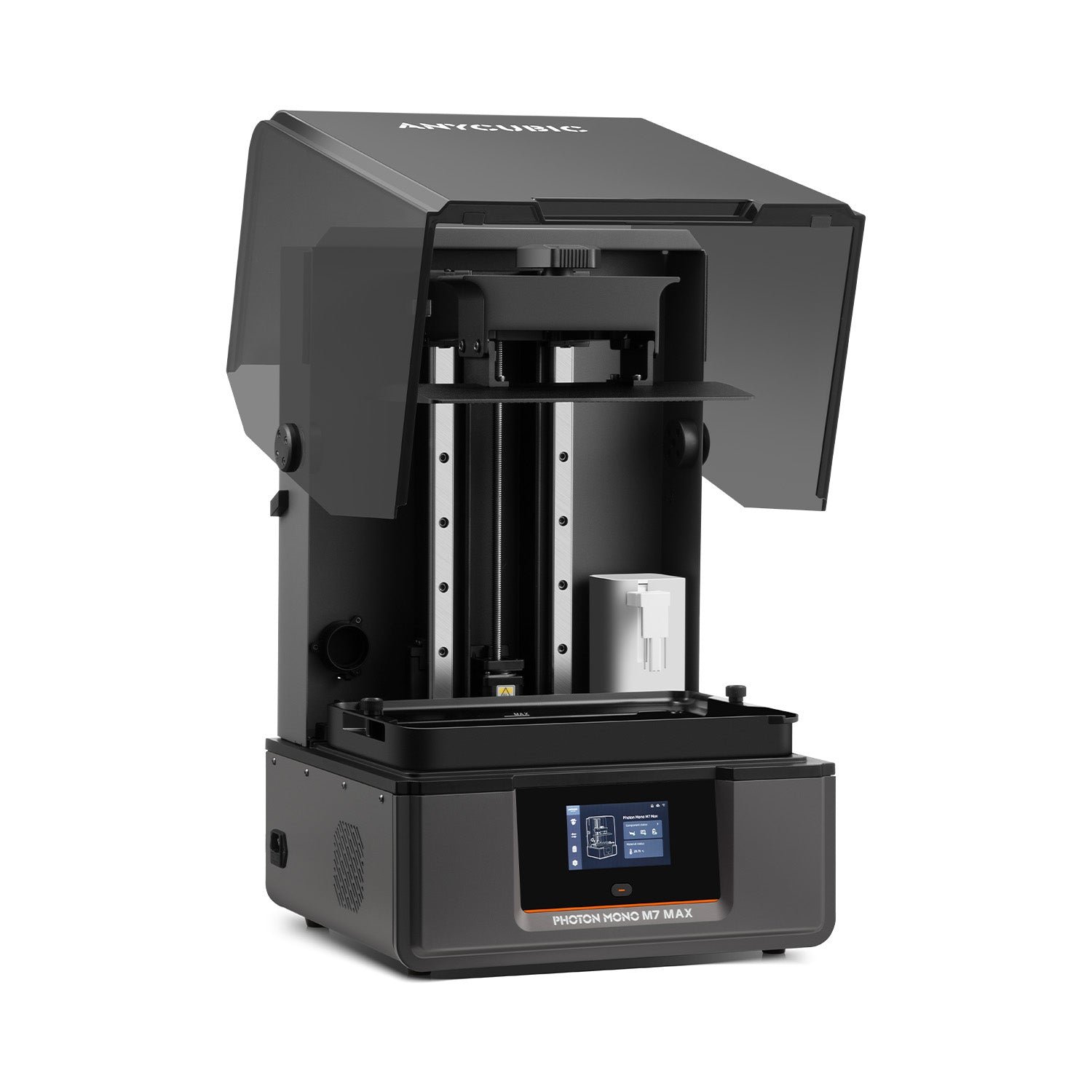

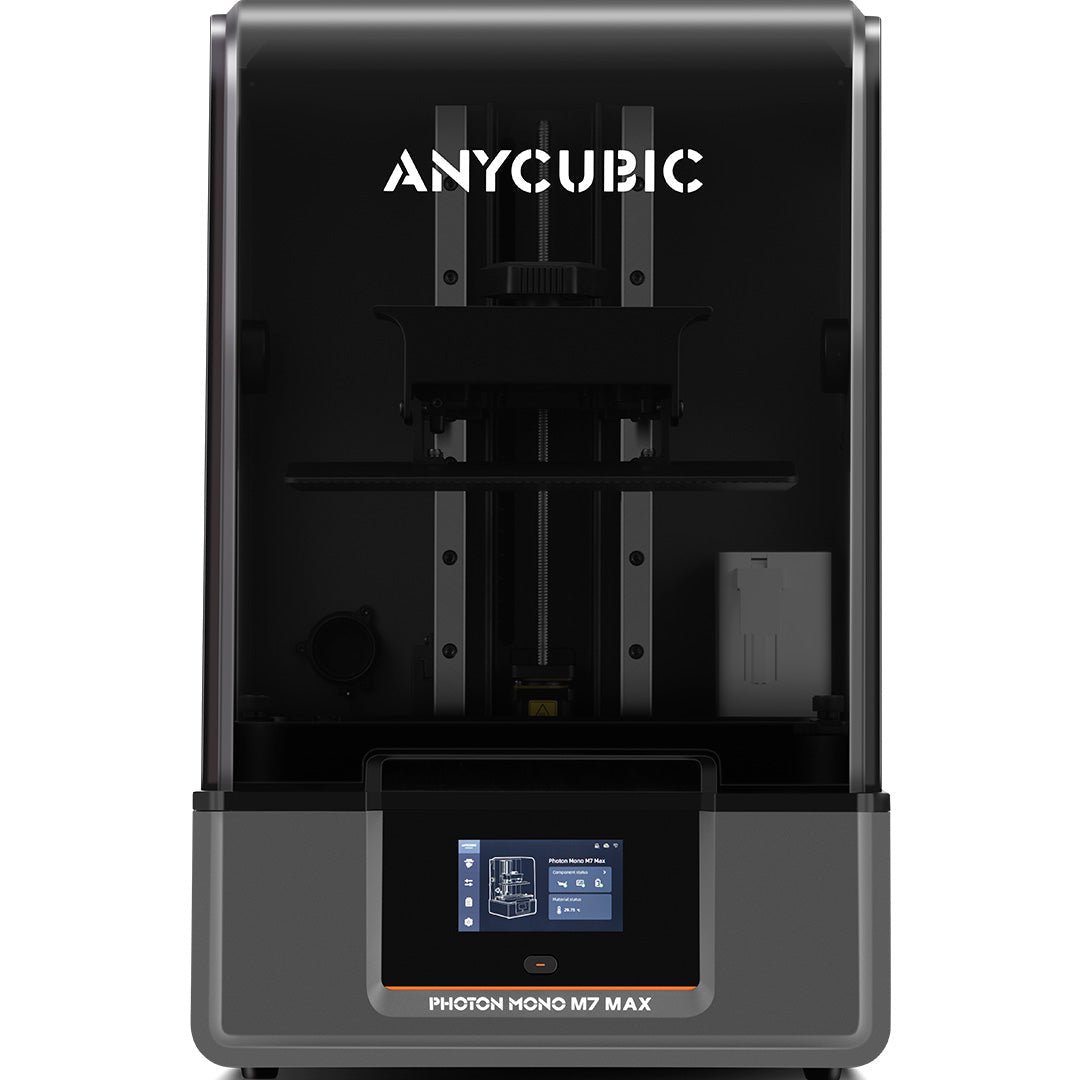

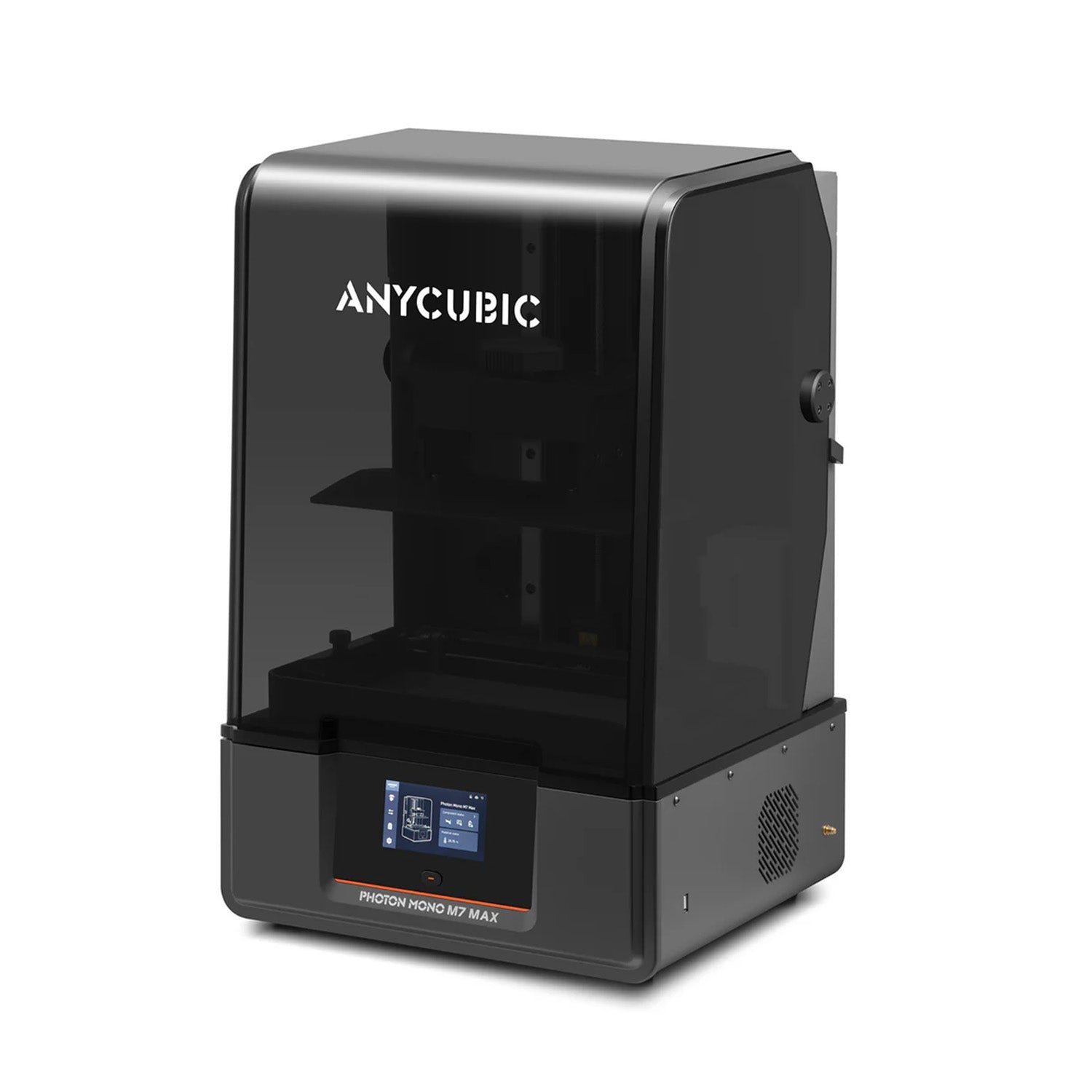

Abycubic Photon Mono M7 Max
rate_review Be the first to review
NPR
164,000
alarm
Promo Ends In: 00:00:00
Out of Stock
Quantity
compare_arrows
Compare with Resin 3D Printer
1
Why Choose Photon Mono M7 Max
14.7L Extra-Large Build Volume
Outstanding Print Speed of 86mm/h

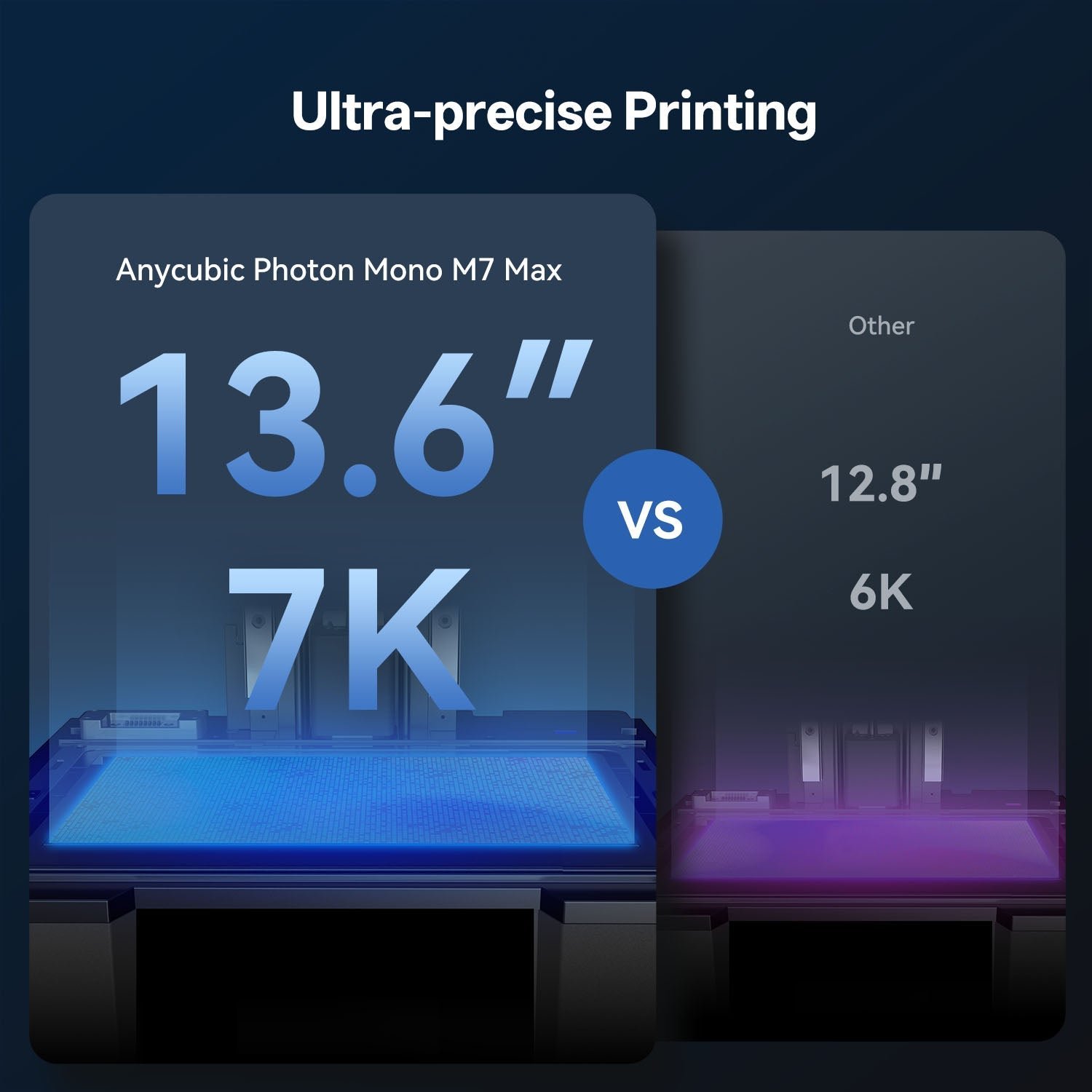

Ultra-precise Printing

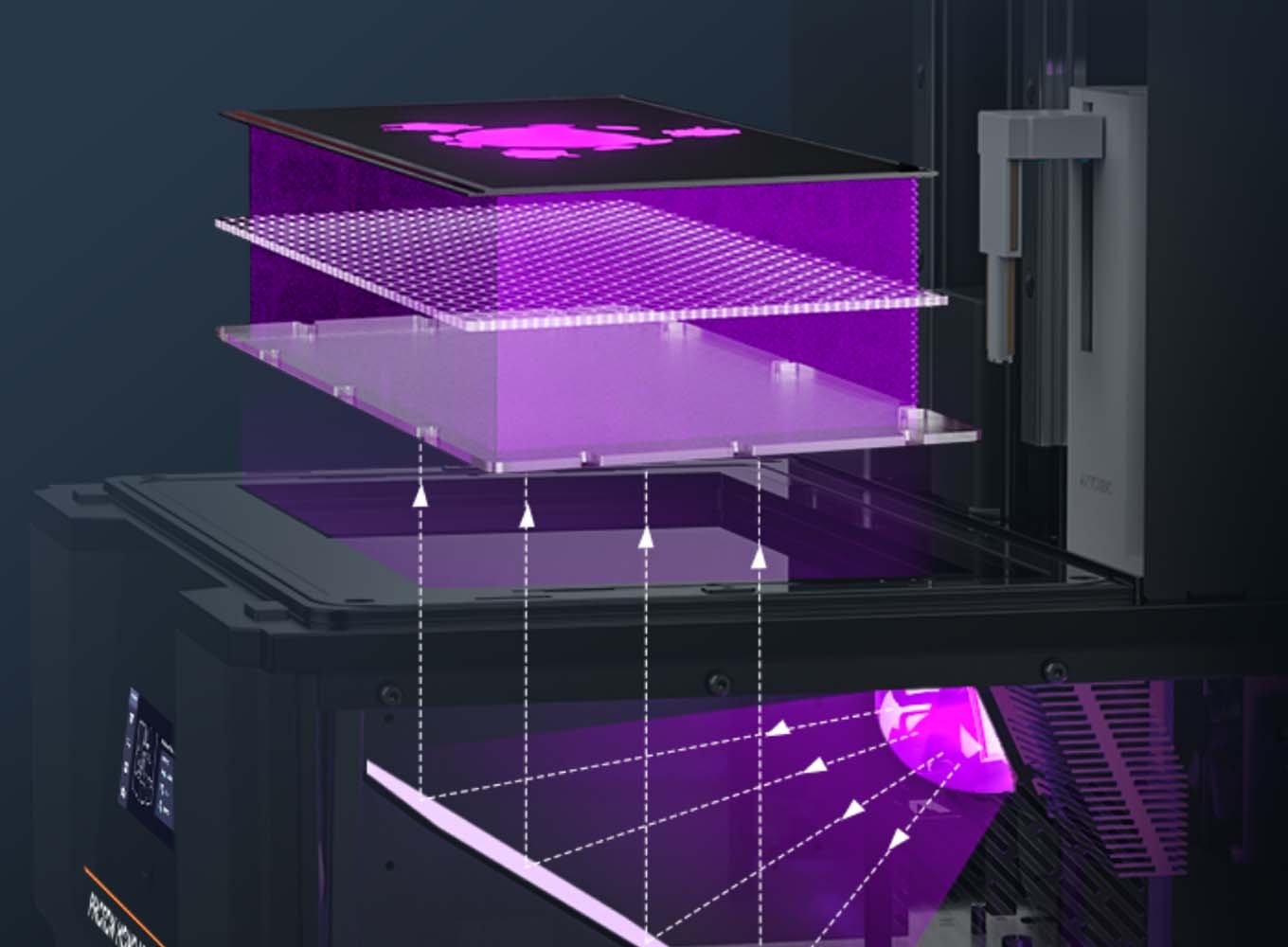

Improved Lighturbo3.0 Light Source

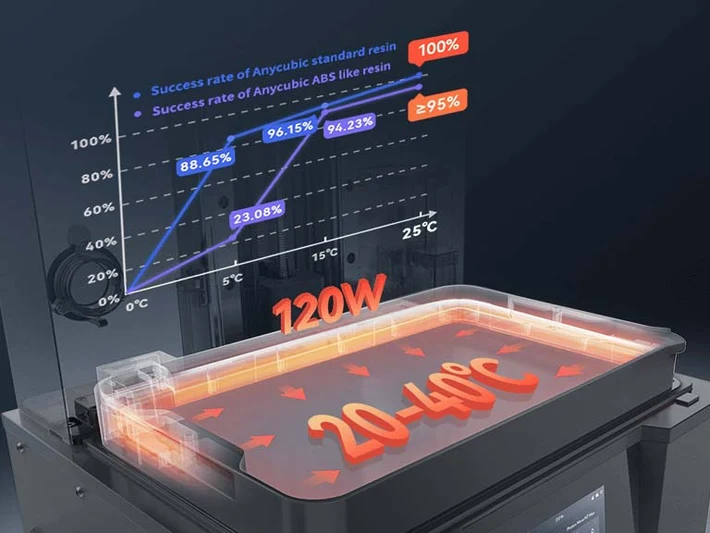

Temperature-controlled Resin Vat
Resin Auto-recycling Management
Bigger. Better. Beyond.

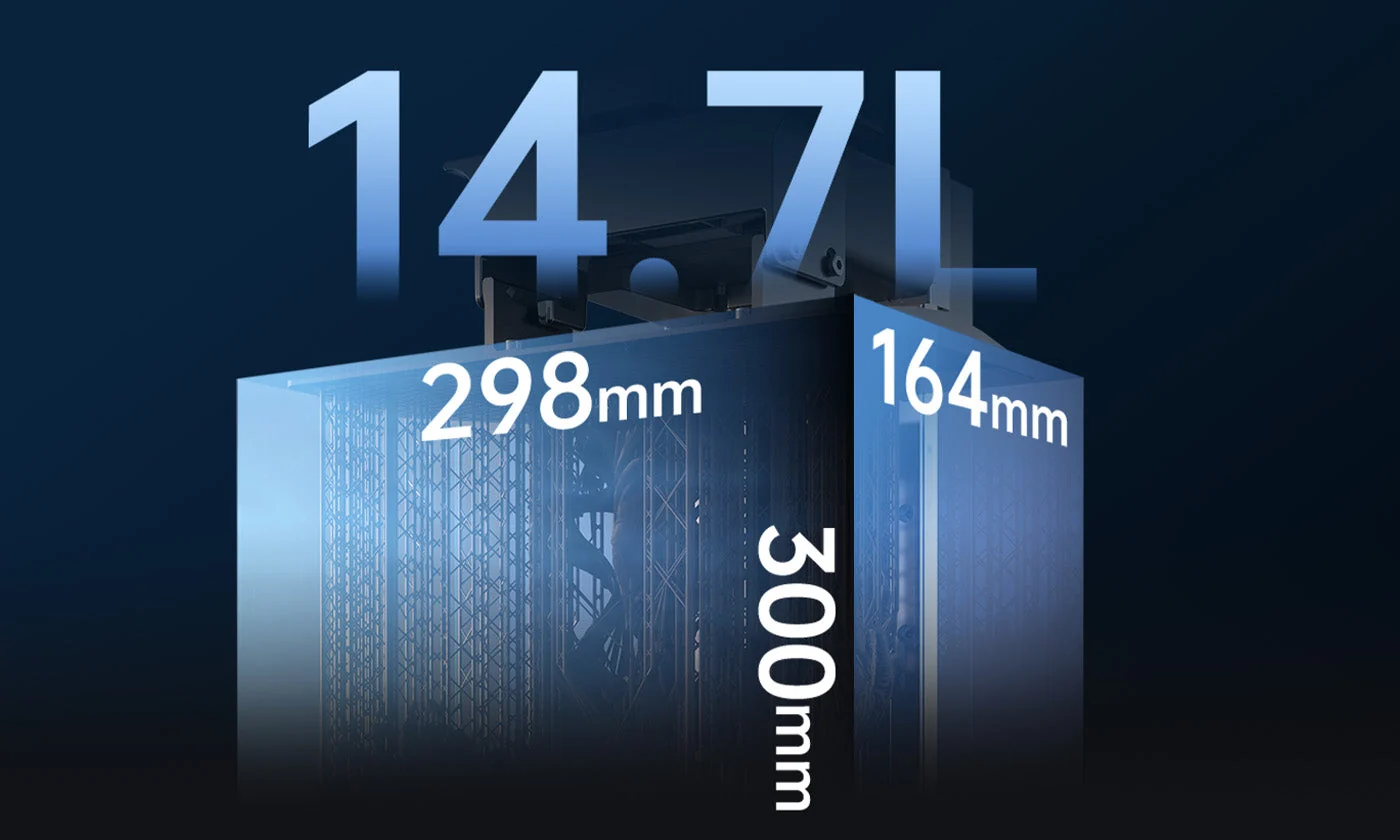

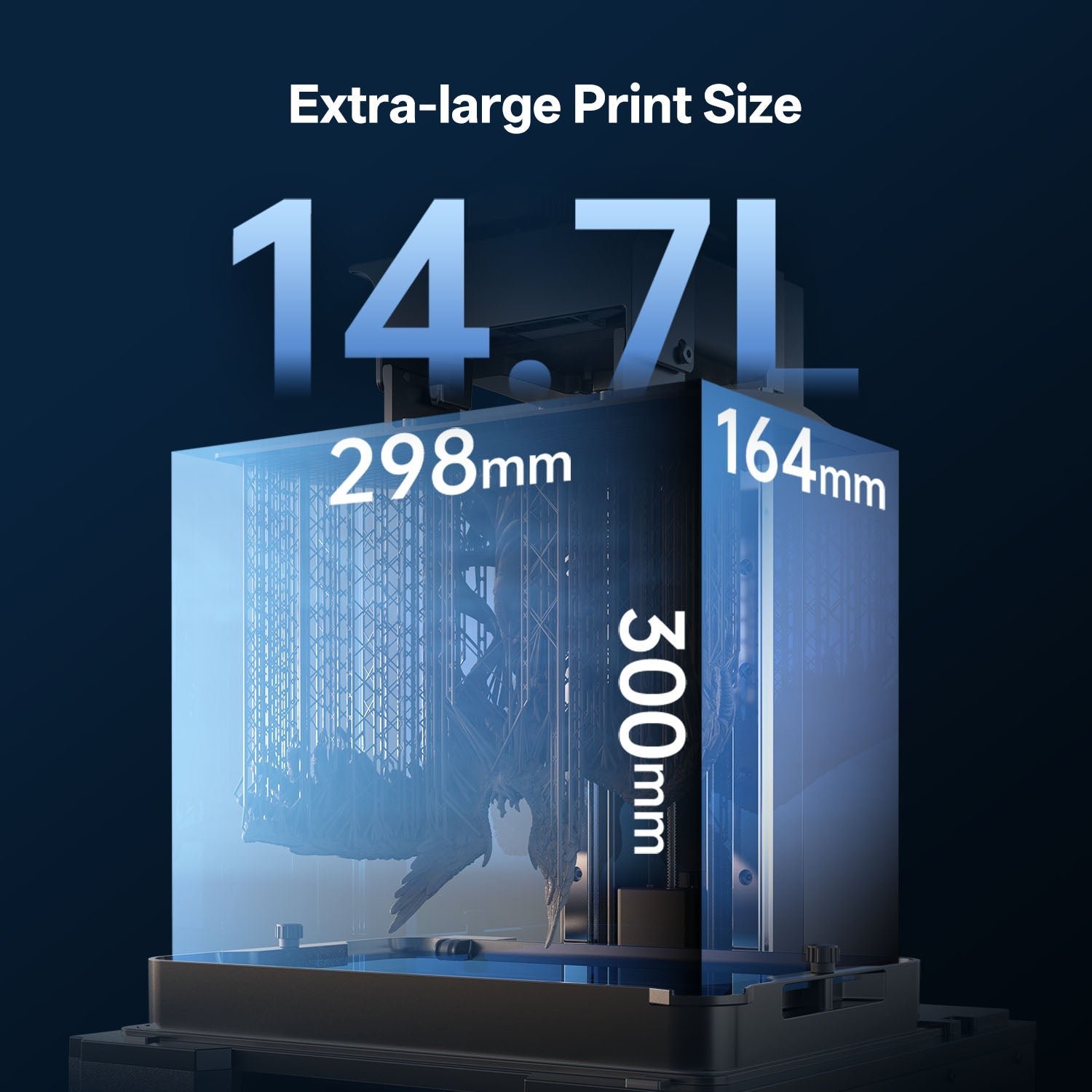

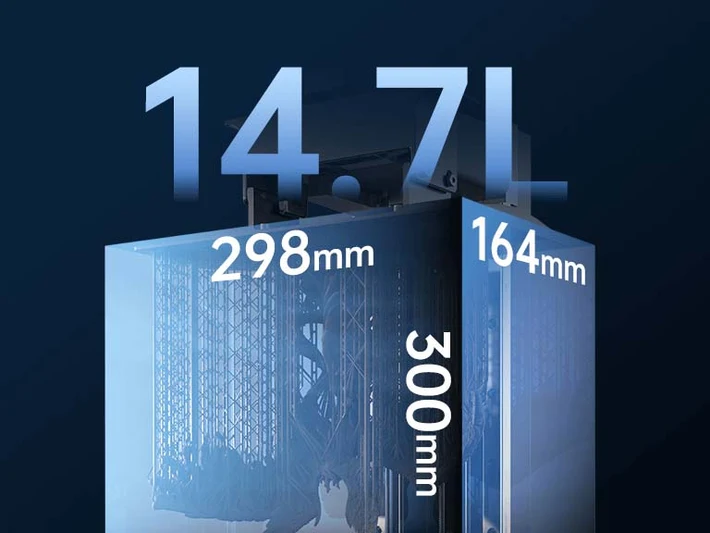

14.7L Extra-Large Build Volume
Outstanding Print Speed of 86mm/h

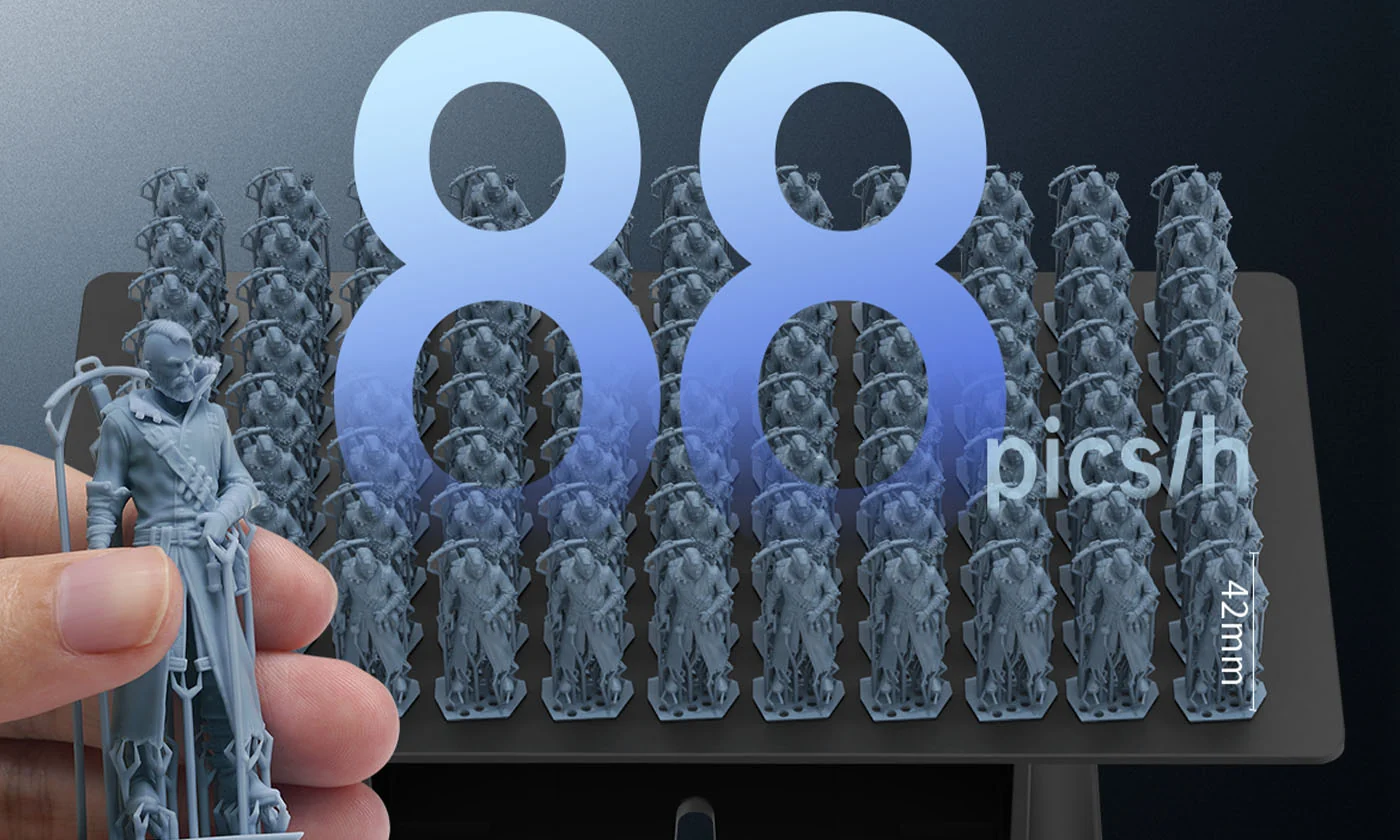

Large-quantity Printing Efficiency X2

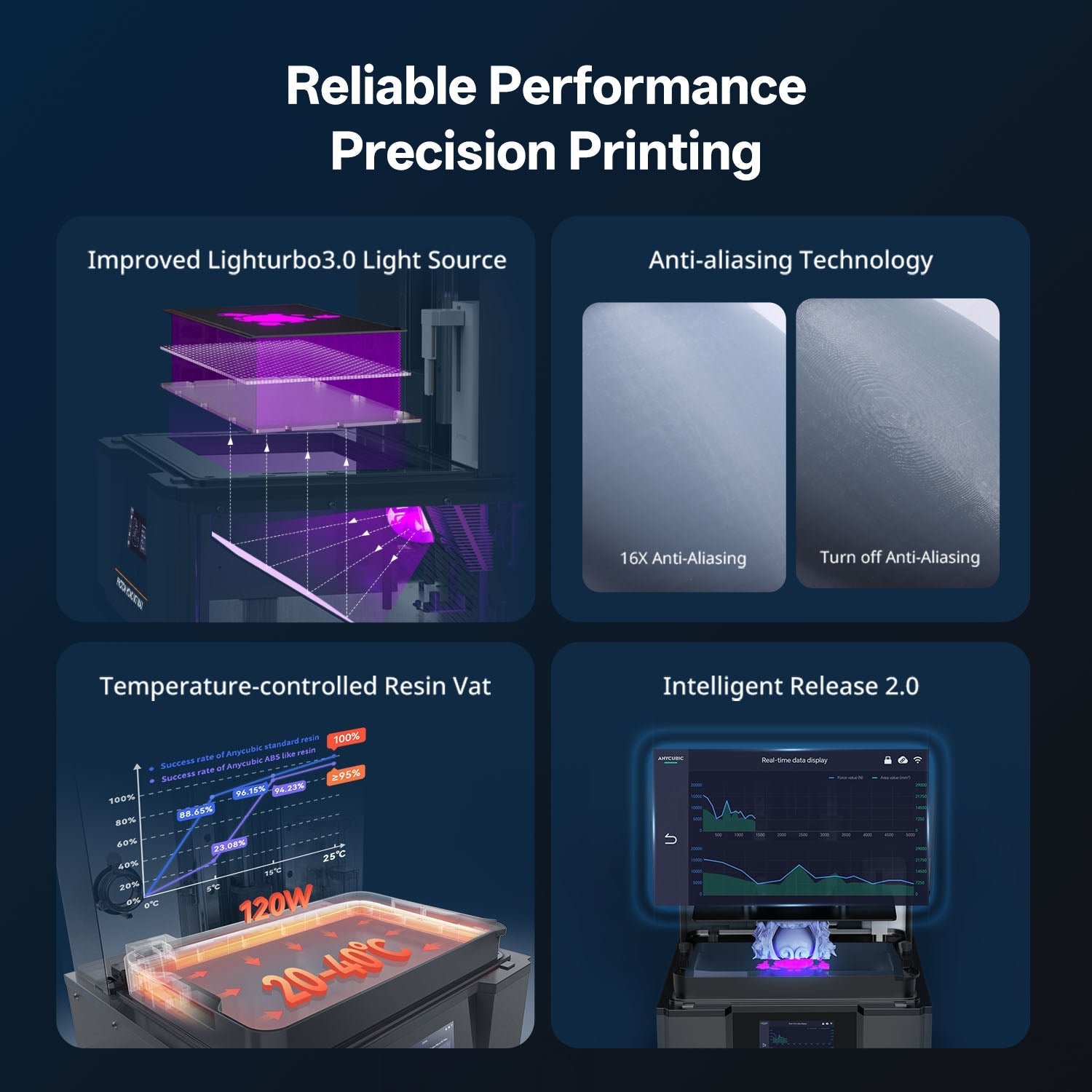

Reliable Performance. Precision Printing.

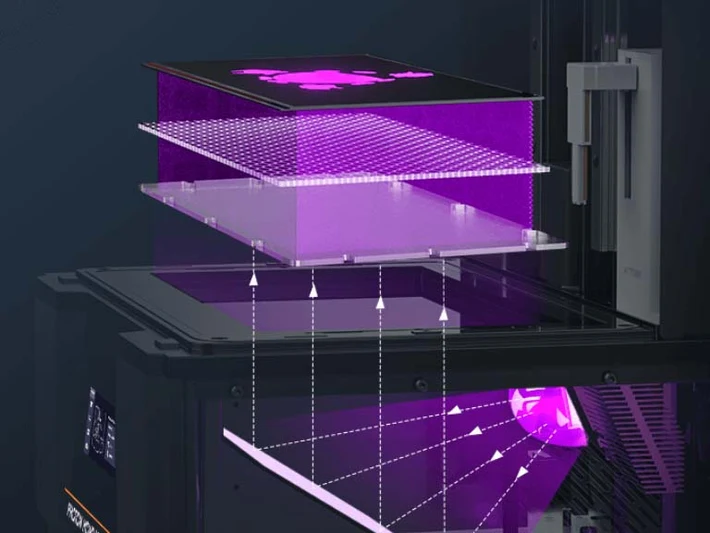

Improved Lighturbo3.0 Light Source

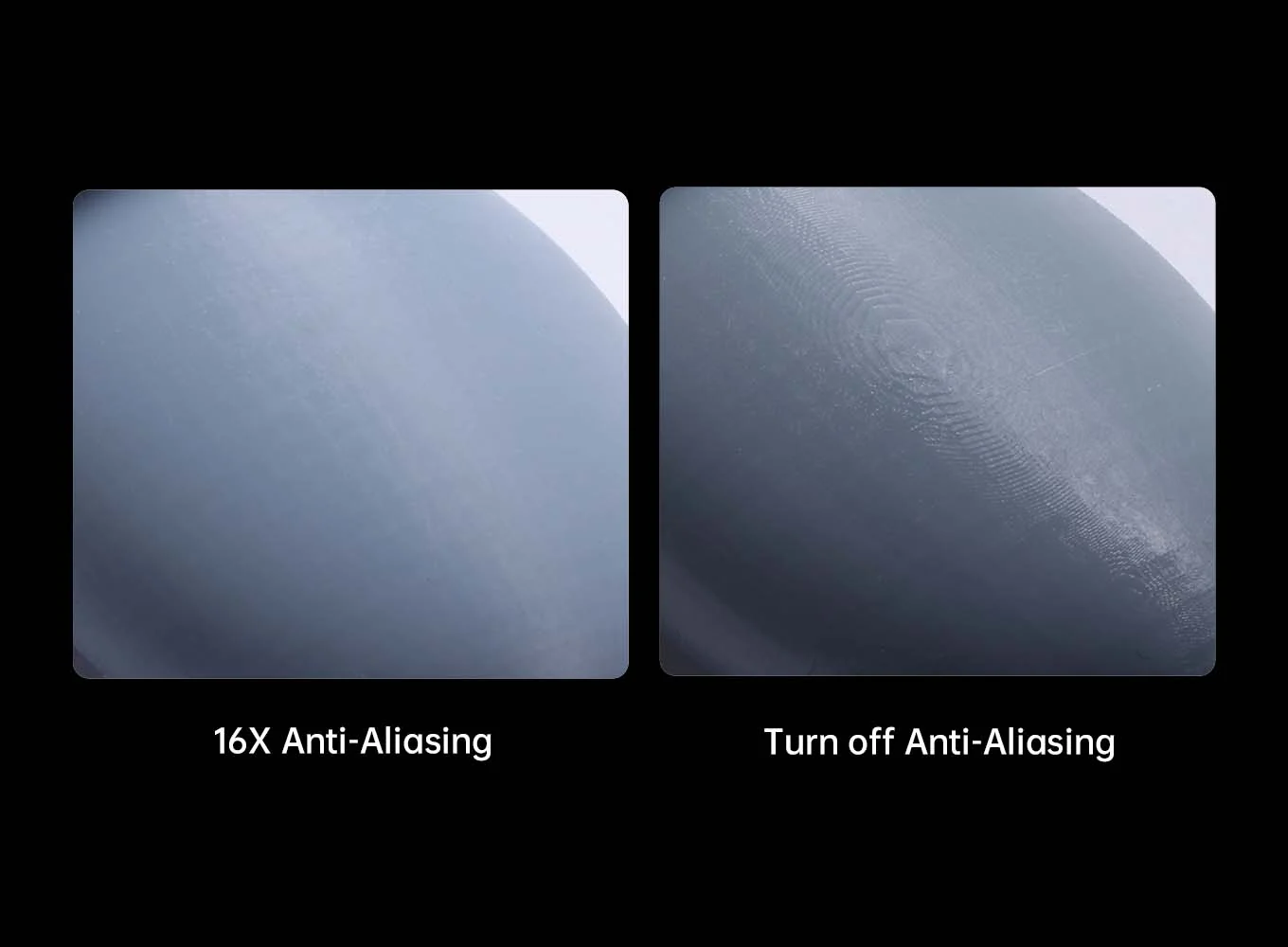

Anti-aliasing Technology

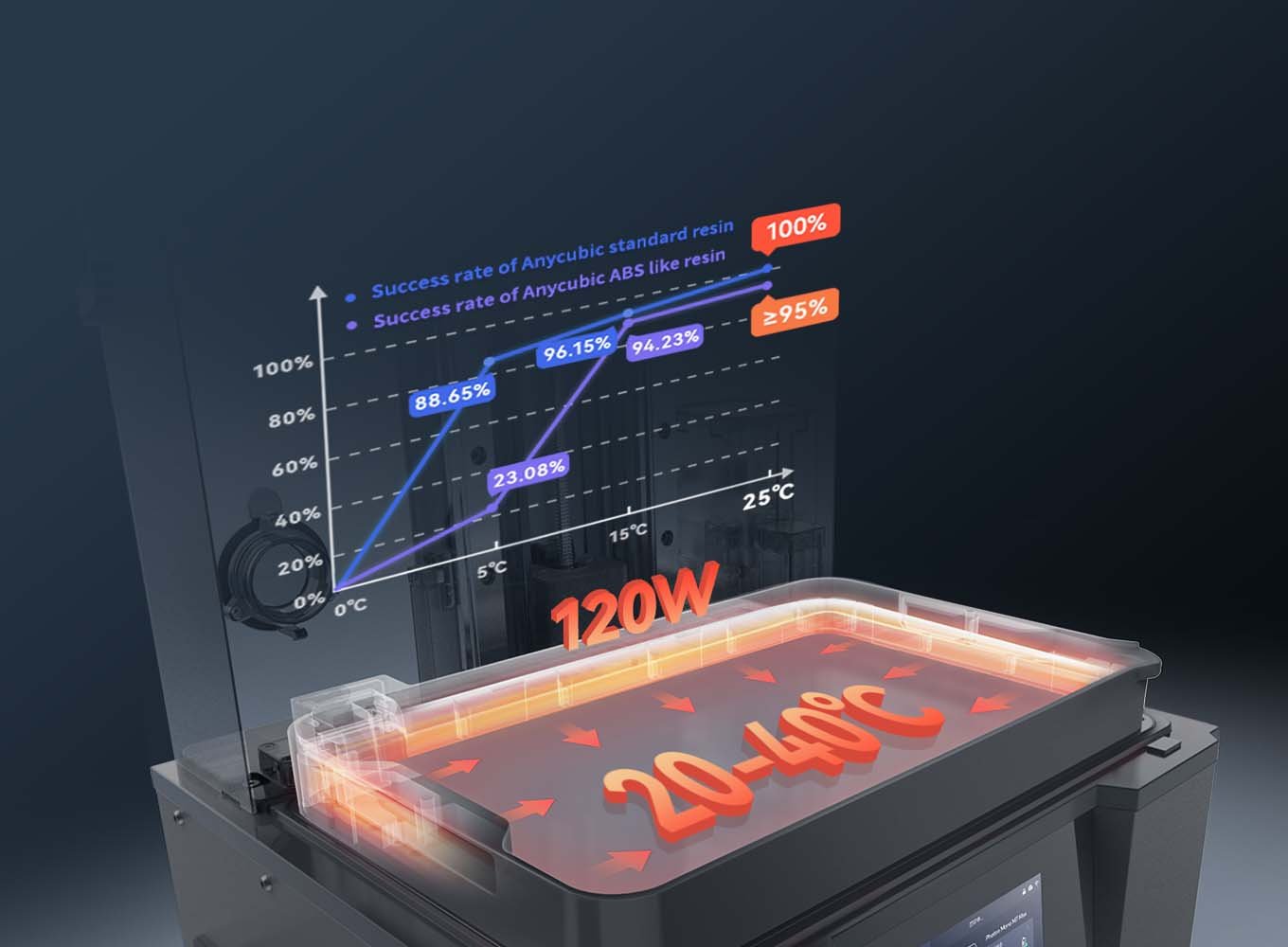

Temperature-controlled Resin Vat

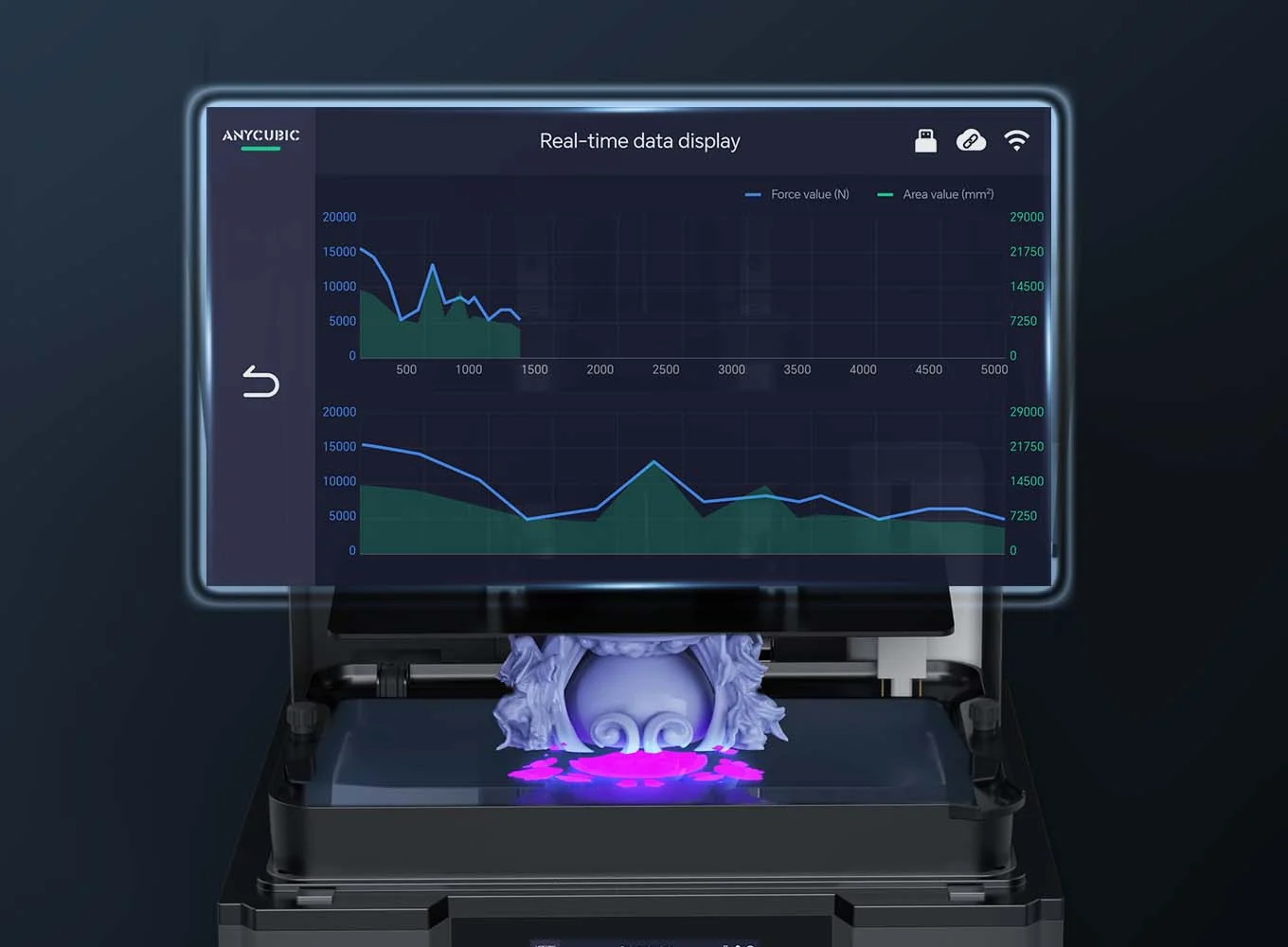

Intelligent Release 2.0
More Upgrades. More User-friendly.

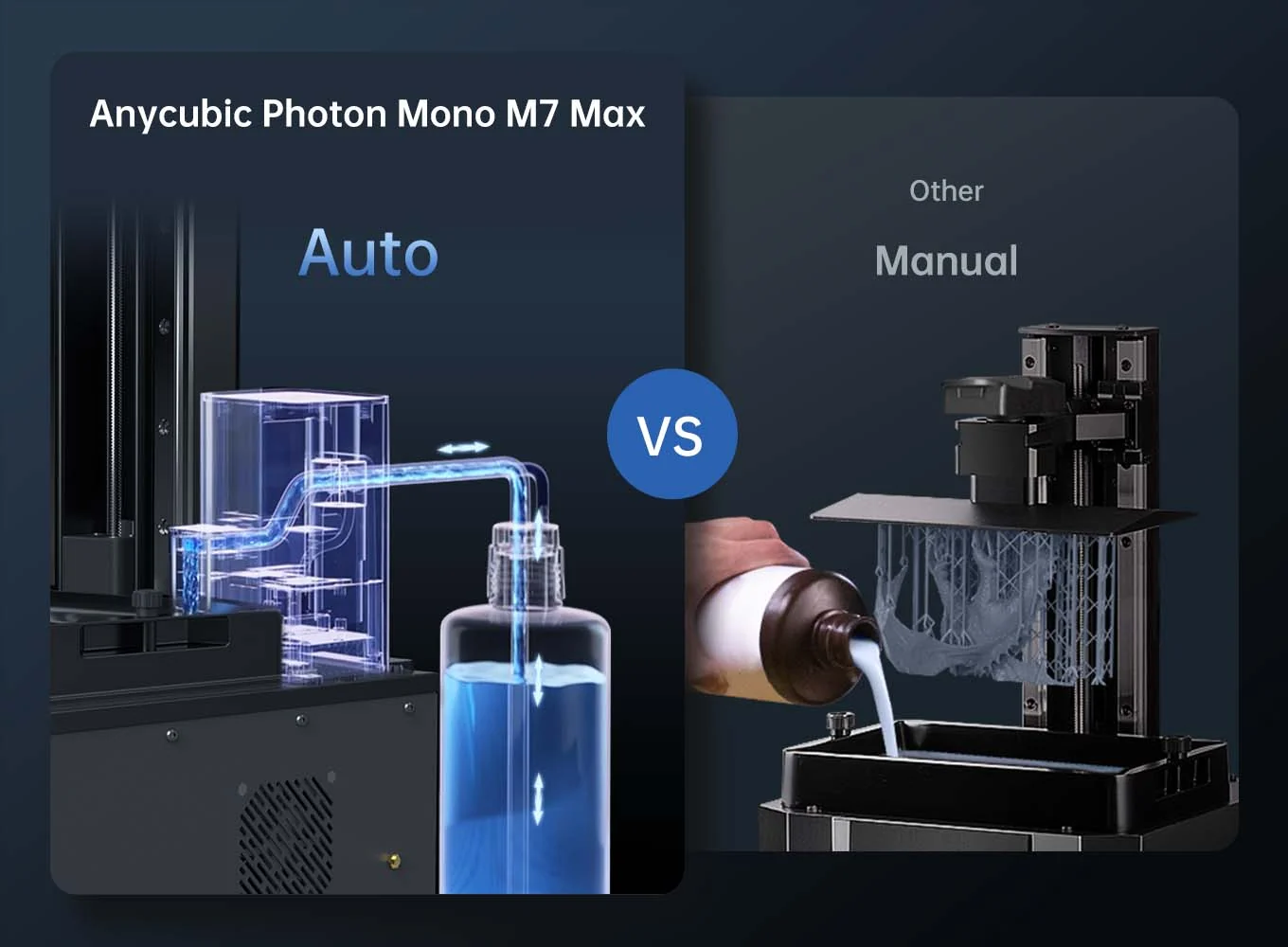

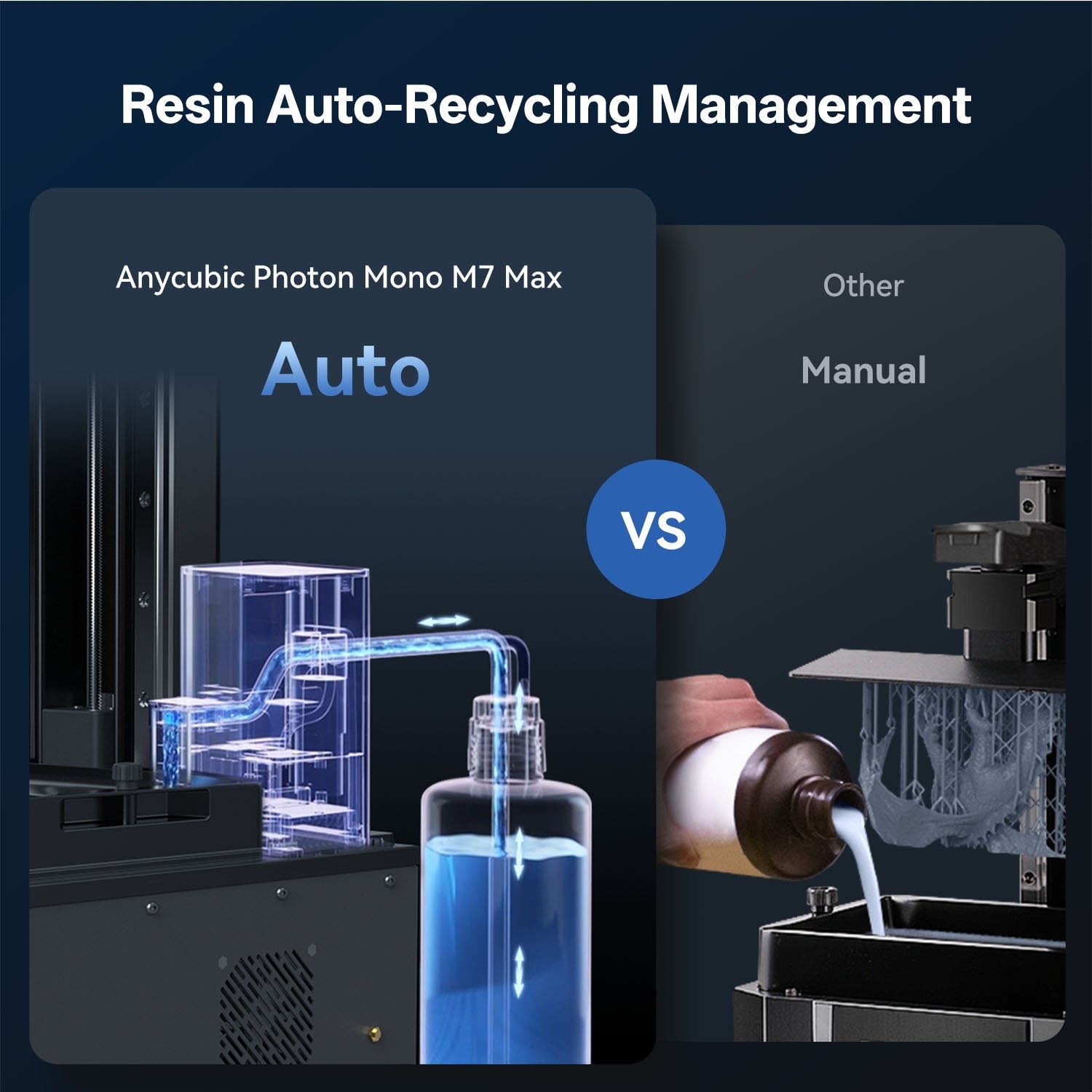

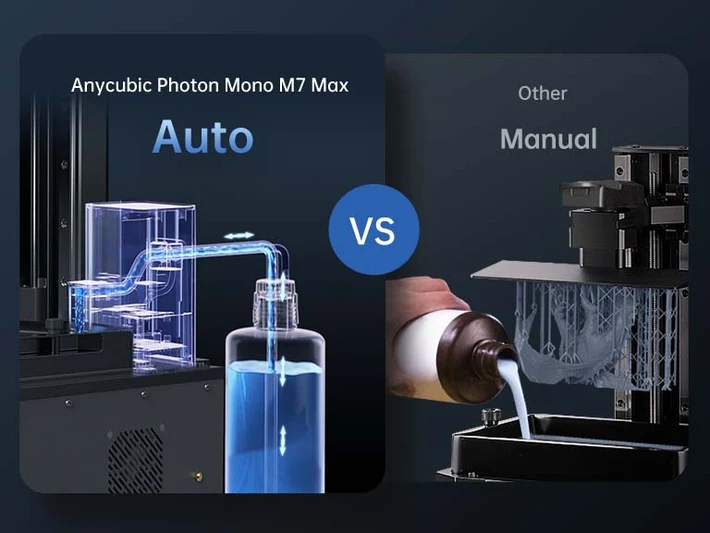

Automatic Feeding and Recycle Management

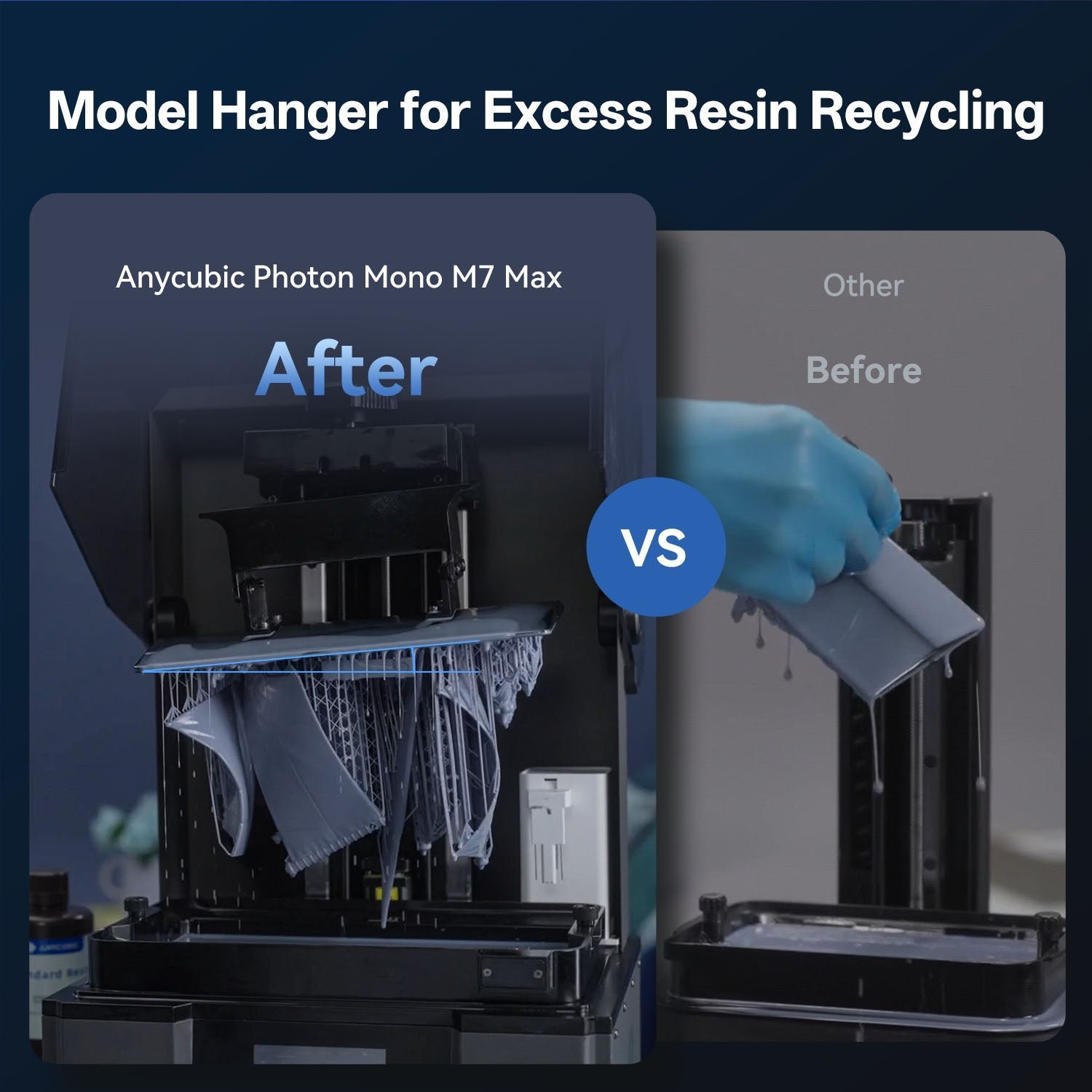

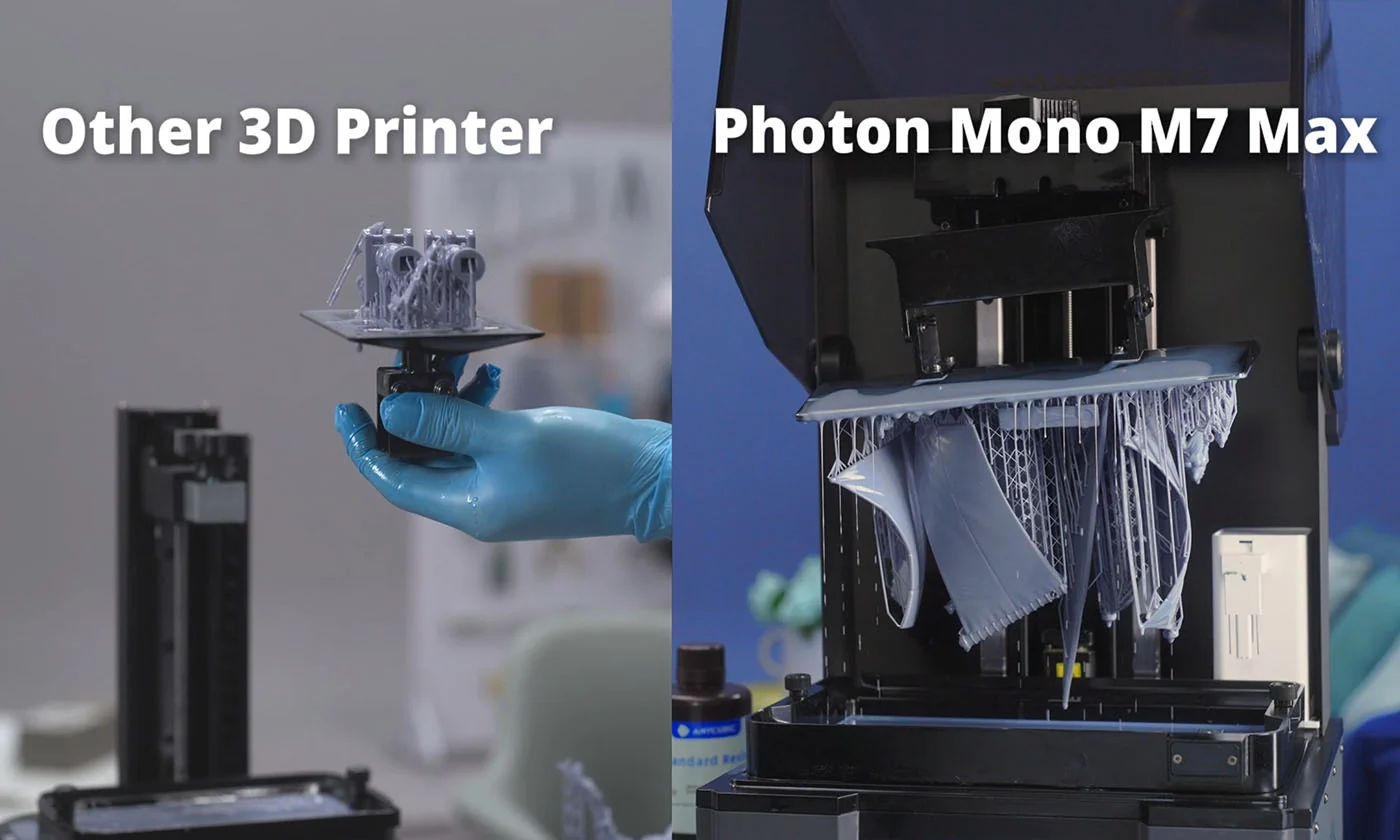

Model Hanger, Excess Resin Recycling
Compatible with Mainstream Resins

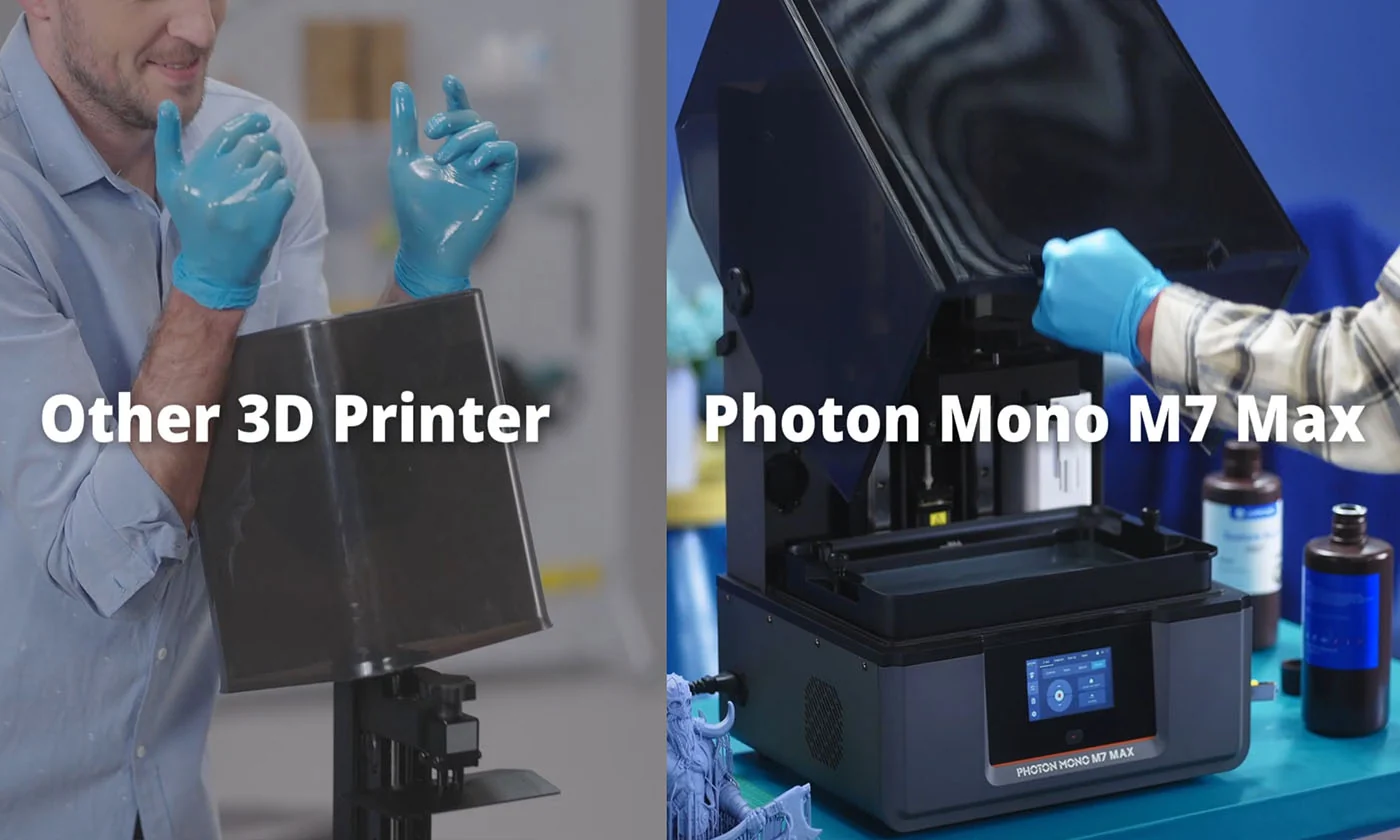

Hinged Flip Cover, One-handed Operation

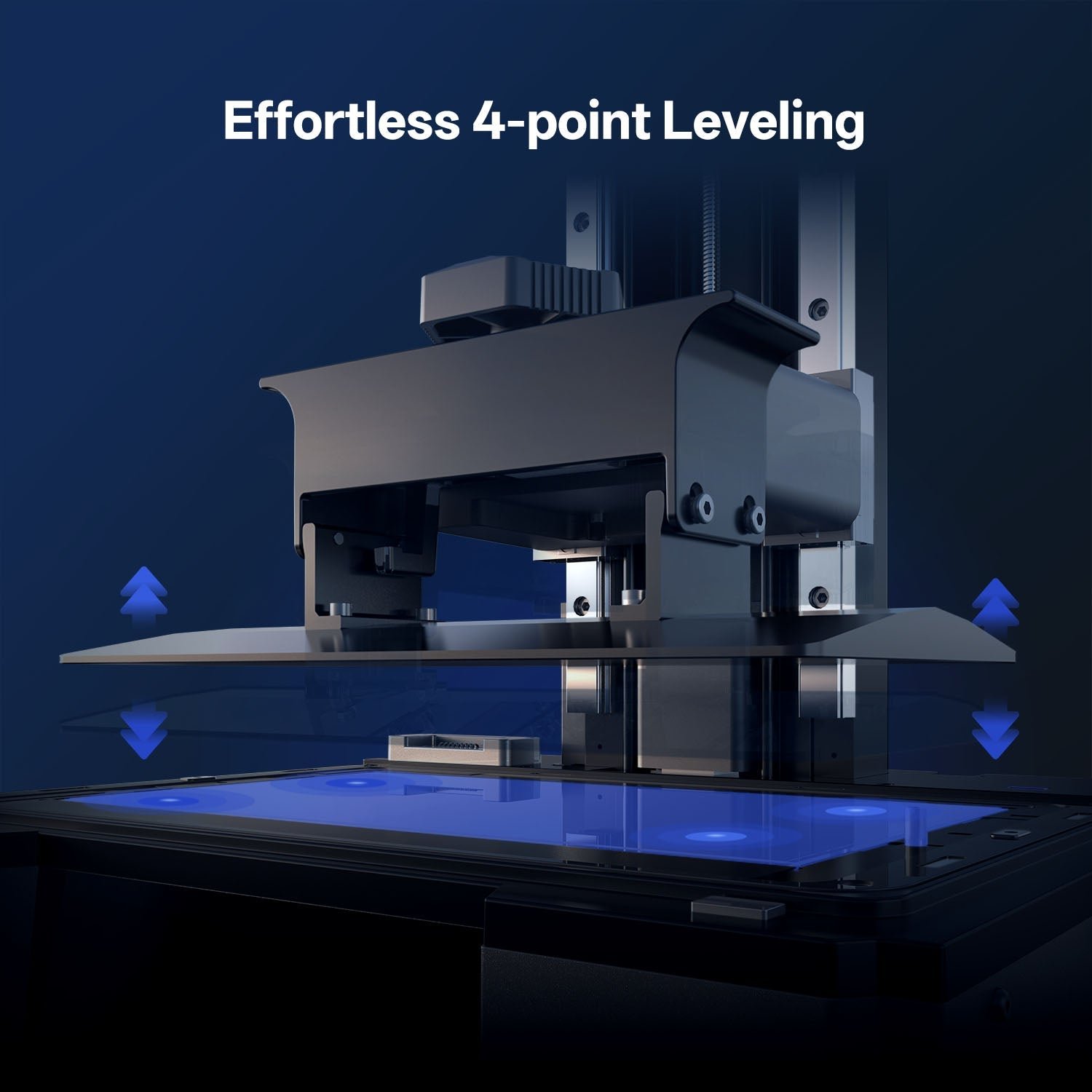

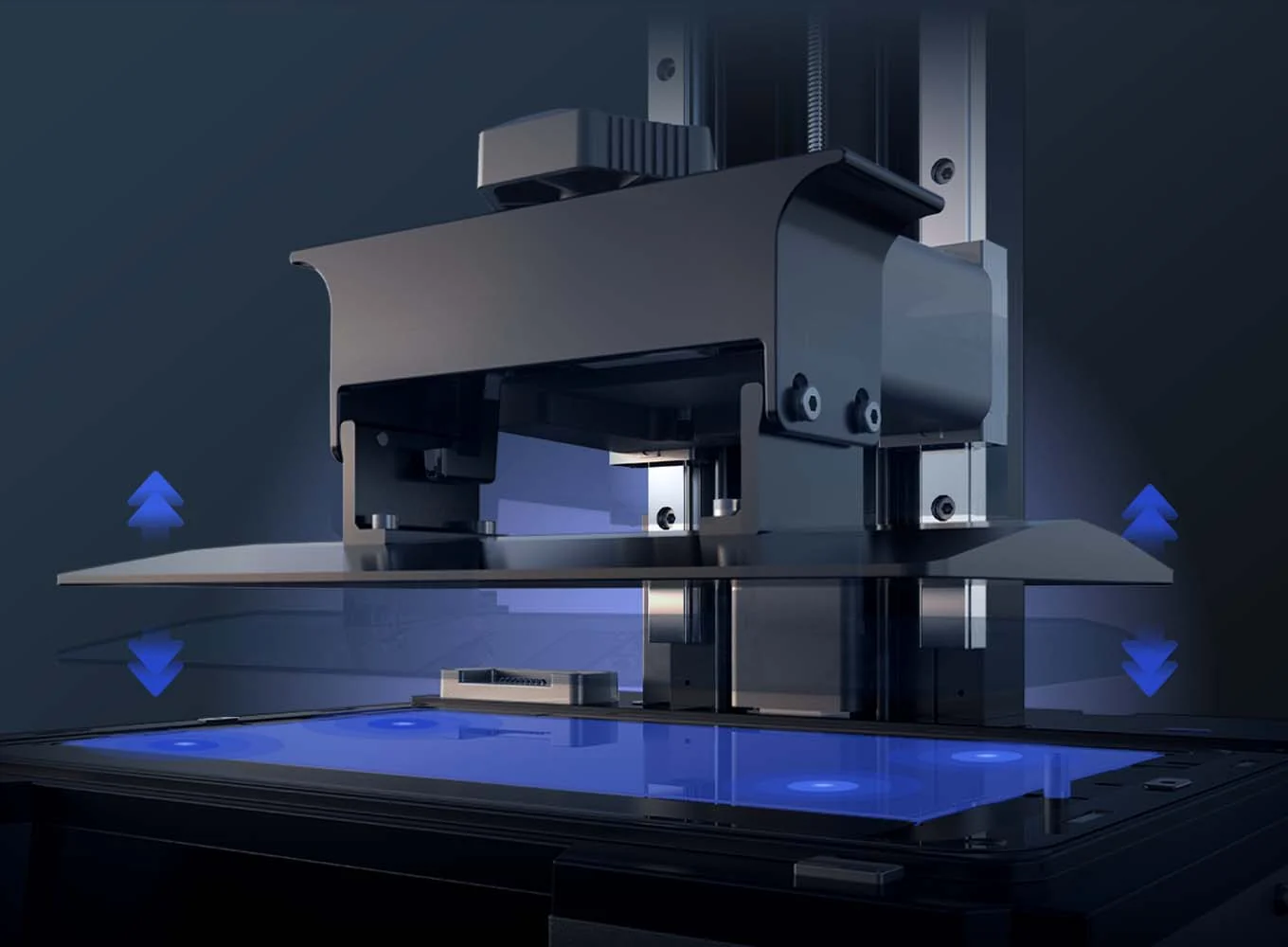

Effortless 4-Point Leveling

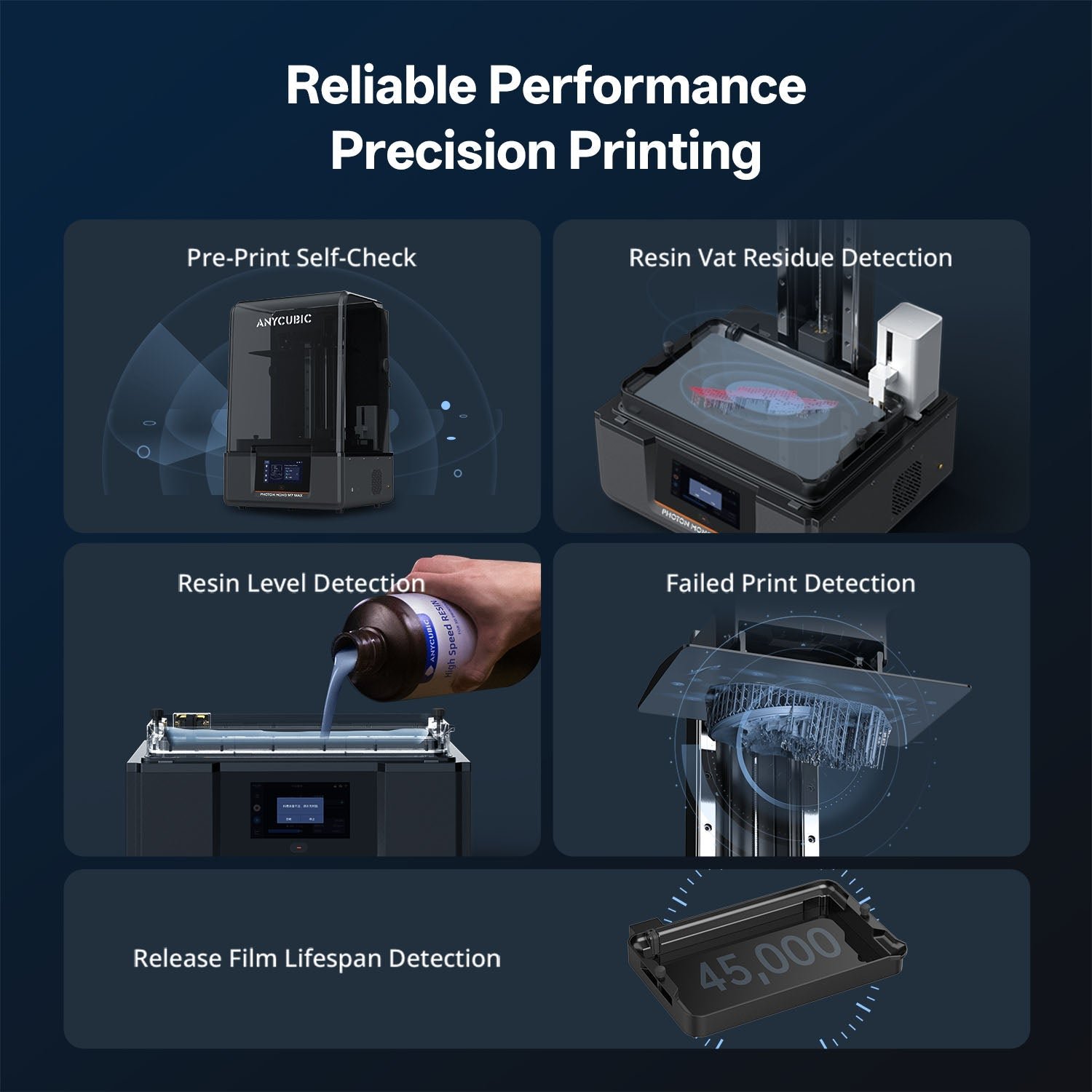

Intelligent Detection. Seamless Printing.

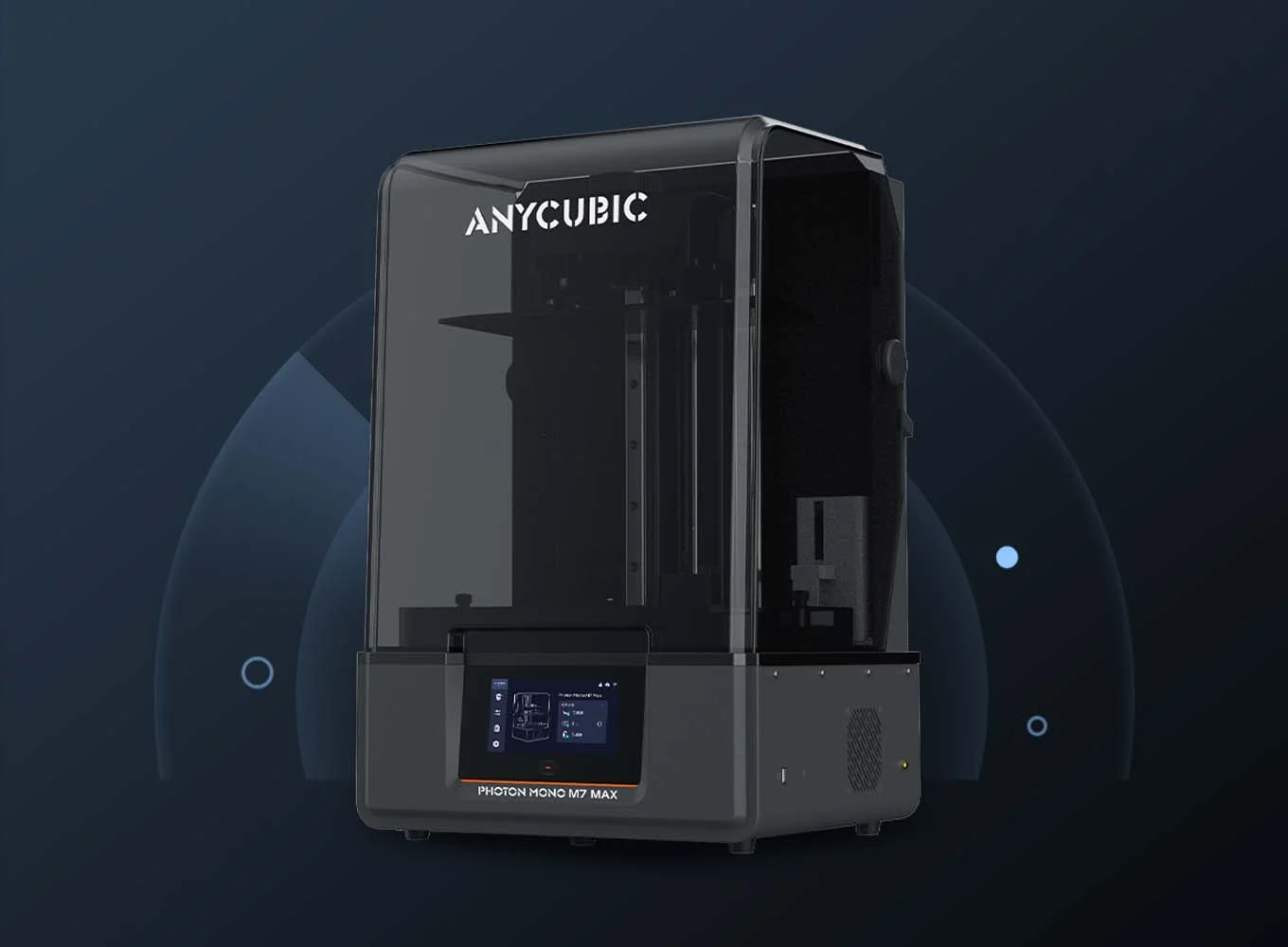

Pre-Print Self-Check

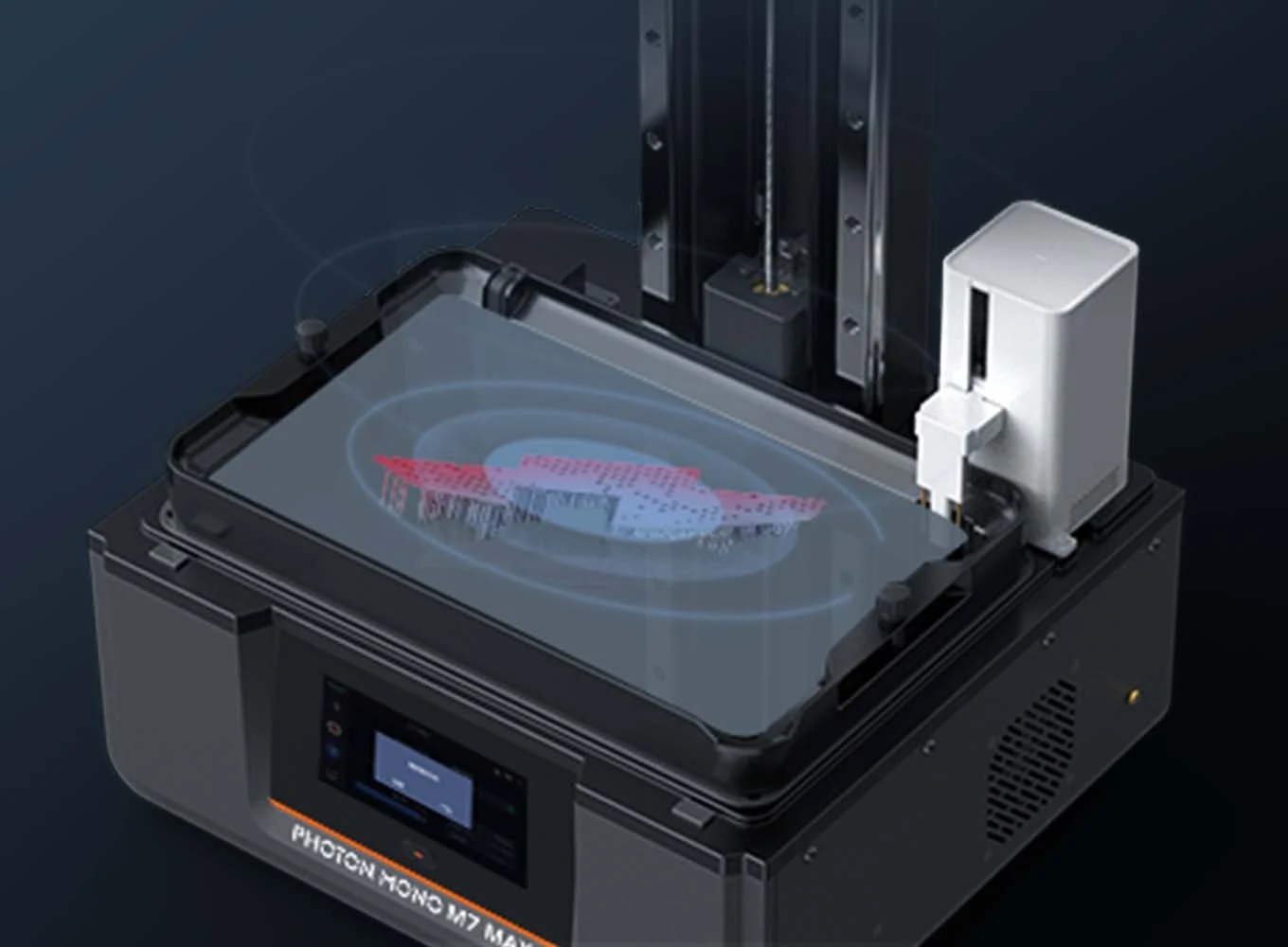

Resin Vat Residue Detection

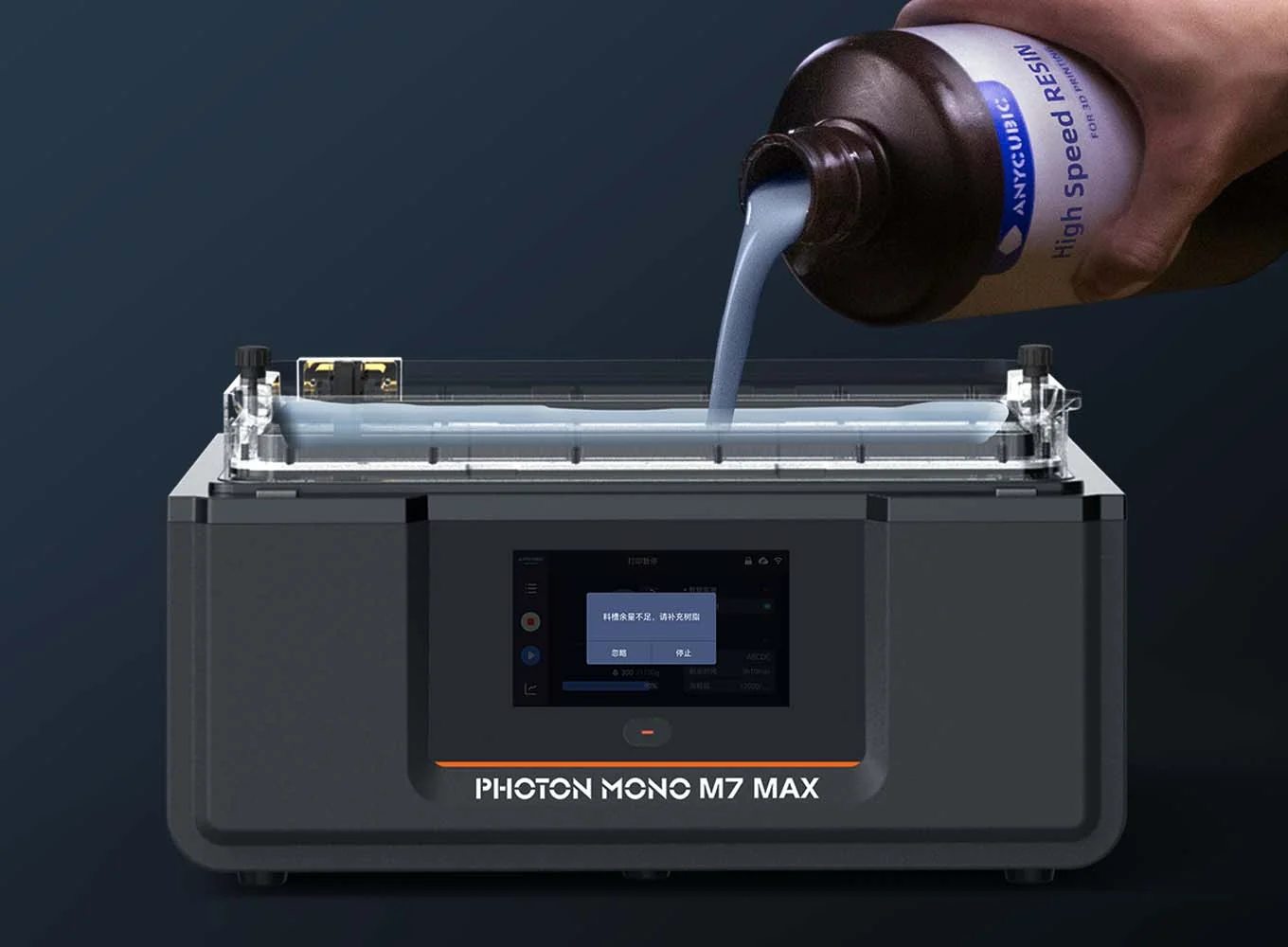

Resin Level Detection

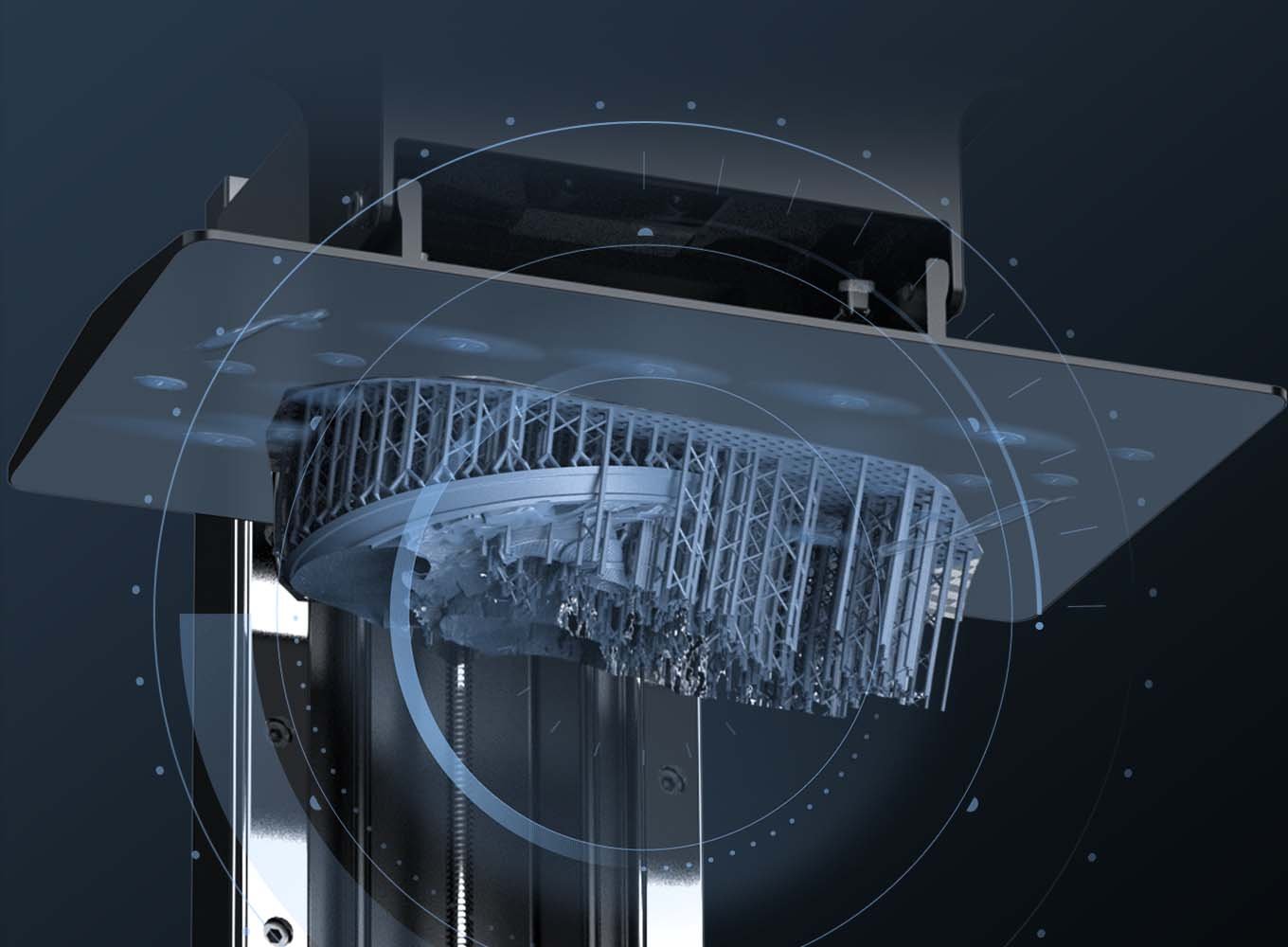

Failed Print Detection

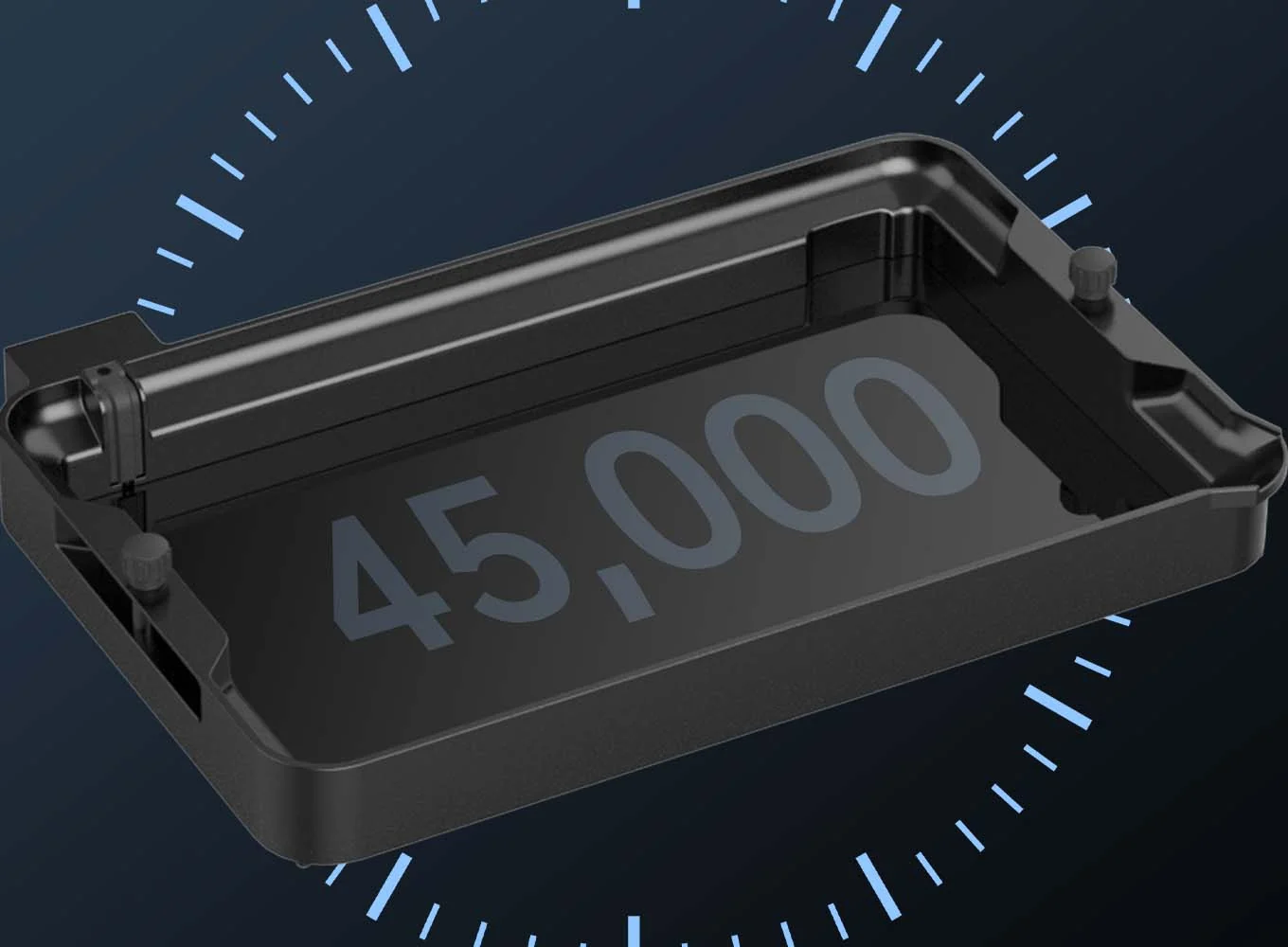

Release Film Lifespan Detection
Exposure Screen Protection.
The Anycubic Ecosystem.

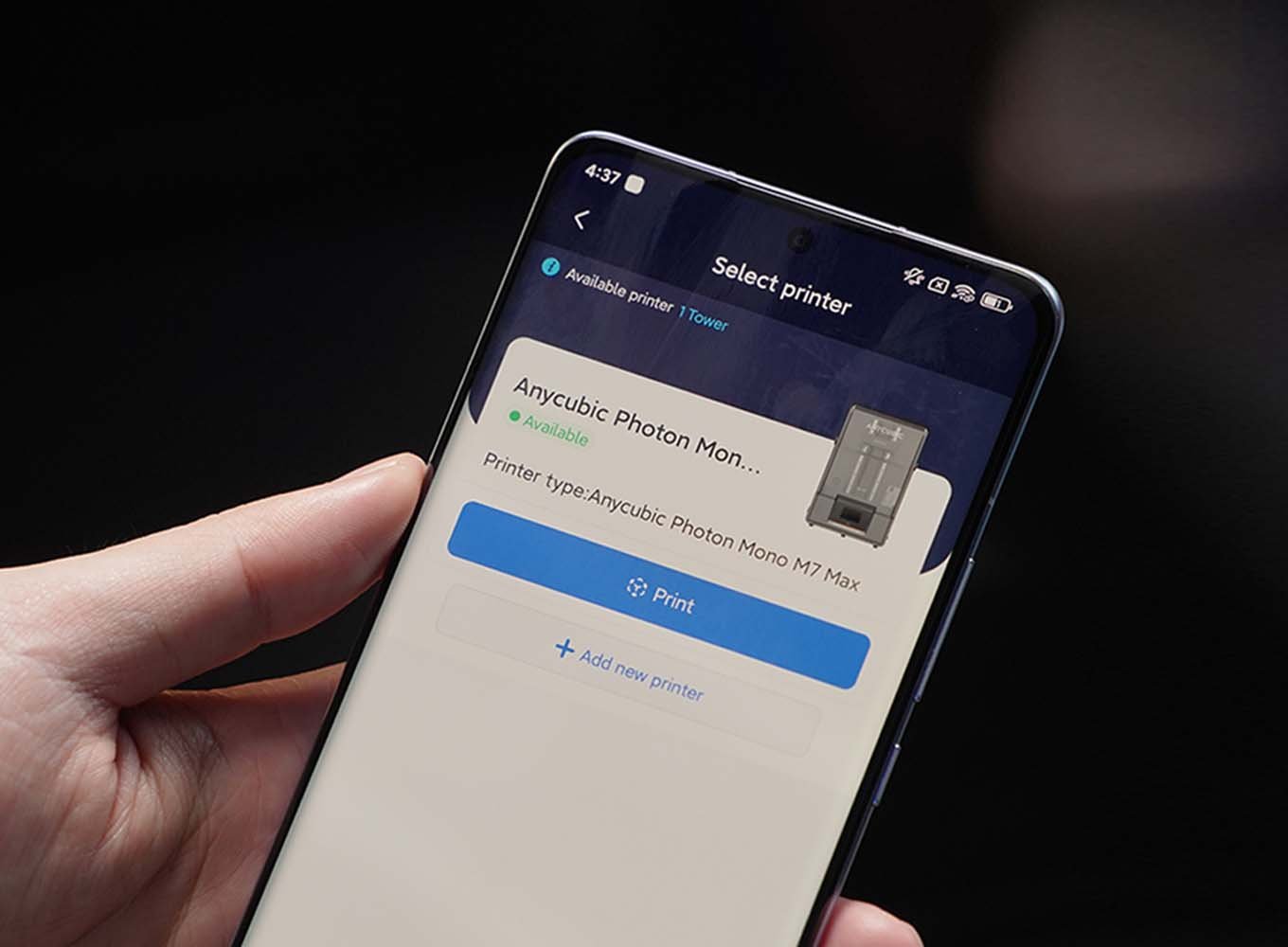

The Anycubic APP

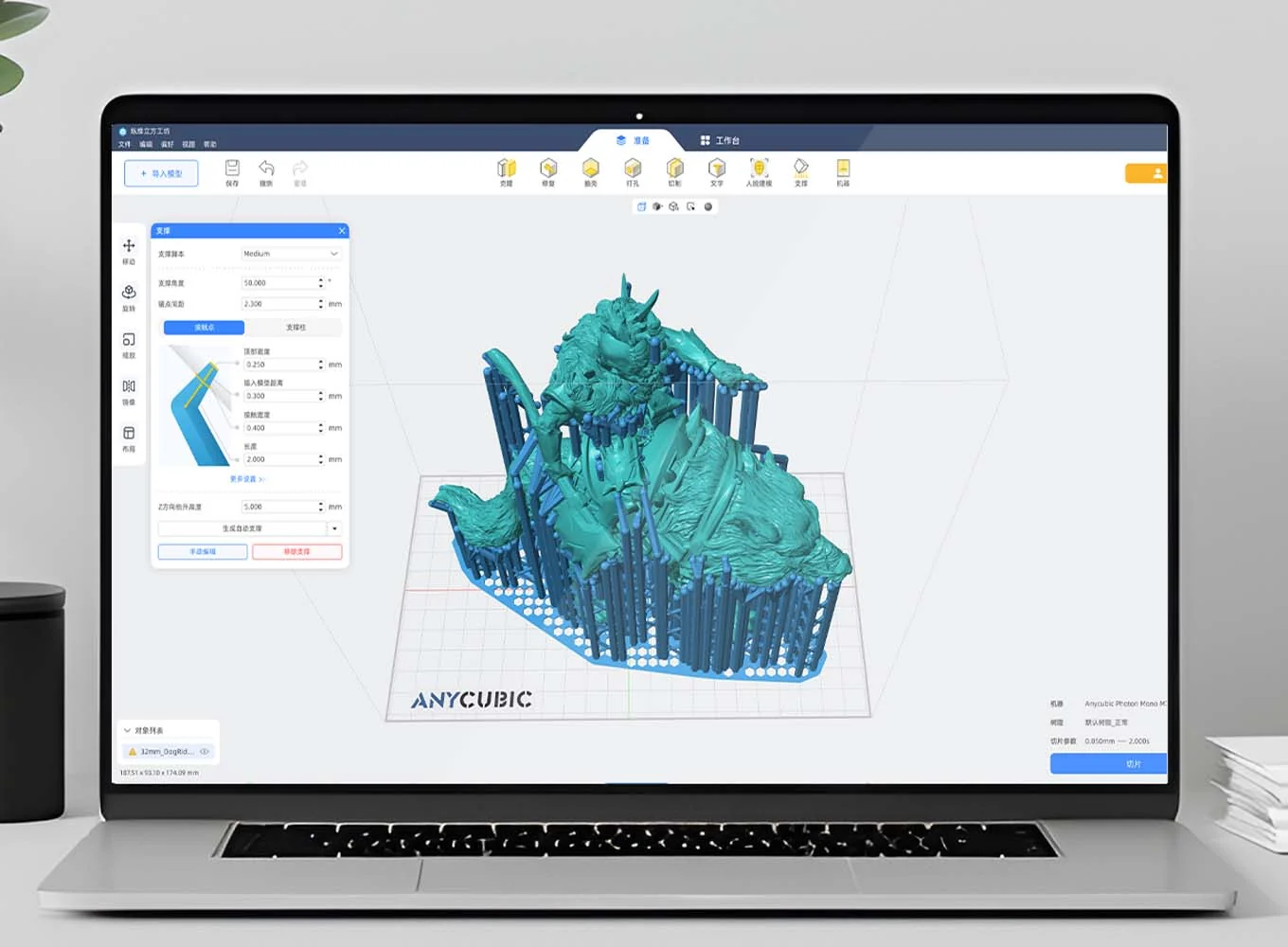

The Latest Anycubic Photon WorkShop
Makeronline Creativity Community
Technical Specifications
Detailed hardware & material parameters
| Item | Specification | |
|---|---|---|
| General | Brand | ANYCUBIC |
| Category | Resin 3D Printer | |
| Core Printing Performance | Printing Volume | 298*164*300mm³ (14.7L) |
| Printing Speed | Max Speed ≤63mm/h; Standard Resin (0.05mm): ≤31mm/h; Standard Resin (0.1mm): ≤63mm/h; High-Speed Resin (0.1mm): ≤86mm/h | |
| Layer Height Range | 0.01 – 0.15mm | |
| X/Y Axis Resolution | 46 × 46μm | |
| Light Source | COB Light Source+ Fresnel Lens+Light Uniformity Algorithm | |
| Light Intensity | 4500 ±10% μW/cm² | |
| Material Compatibility | High-speed, Water-washable, Standard, ABS-like, and Plant-based Resins, etc | |
| System & Mechanical Design | Build Platform | Laser-engraved Aluminum Build Plate |
| Z Axis | Dual Linear Rails with 10 μm Precision | |

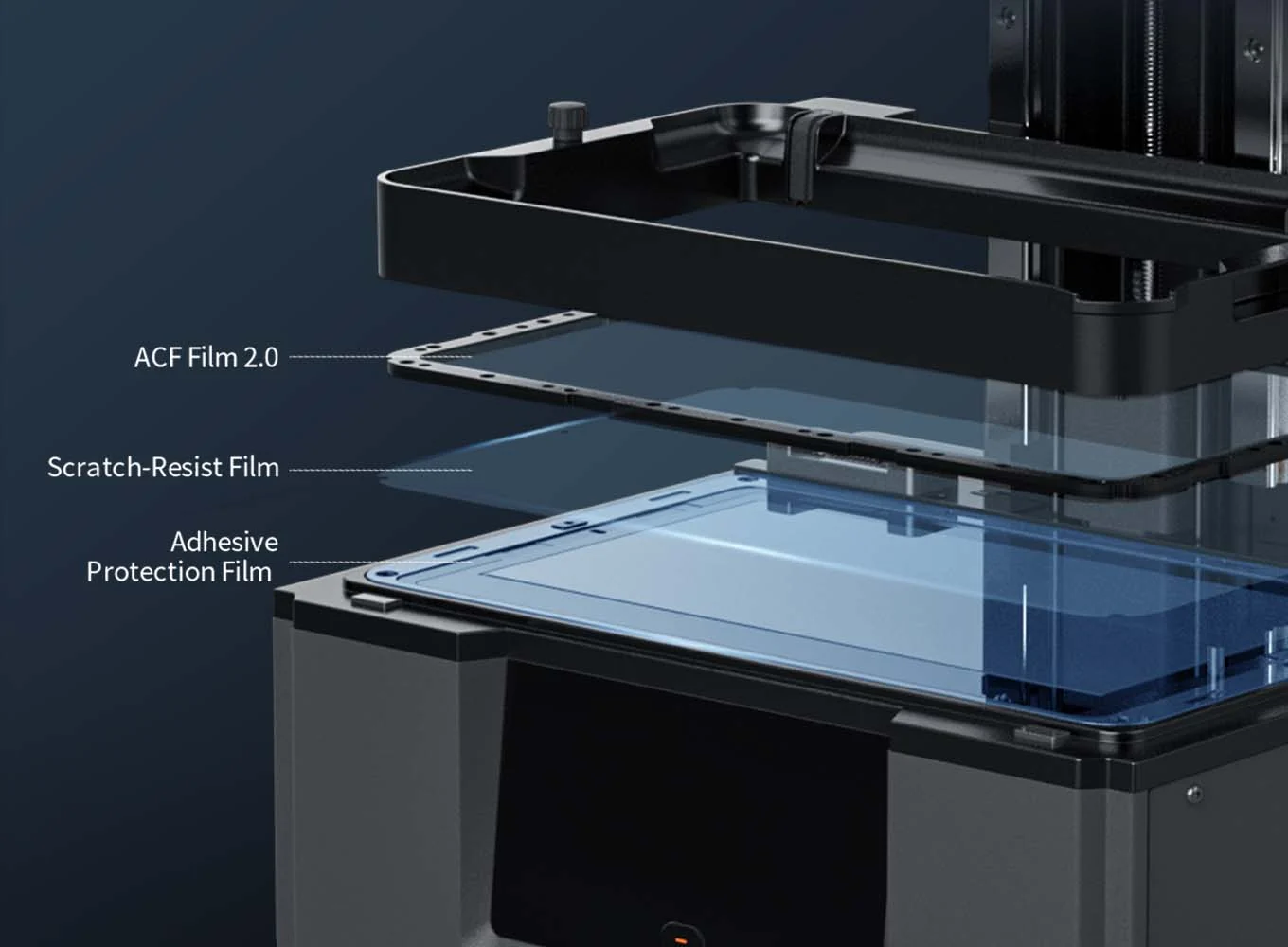

| Release Film | Improved ACF Film | |
| Resin Vat | ≤1.3L, Unibody Design with Scale Markings | |
| Machine Leveling | 4-point Manual Leveling | |
| Power Loss Resume | Supported | |
| Power Supply | 180W | |
| Protection Film | Replaceable Scratch-resistant Film | |
| Resin Auto Fill Unit | Supported | |
| Dynamic Temperature Control Resin Vat | Supported | |
| Slicing Software | Photon Workshop, Chitubox, Lychee Slicer (Scheduled) | |
| File Transfer | USB/WiFi/LAN (Scheduled) | |
| User Experience & Features | Hinged Cover | UV-blocking; Supports One-handed Operation and Hover at Angles > 45° |
| Operating Scree | 4.3" Touch-Control | |
| Air Purifier | Optional Accessory | |

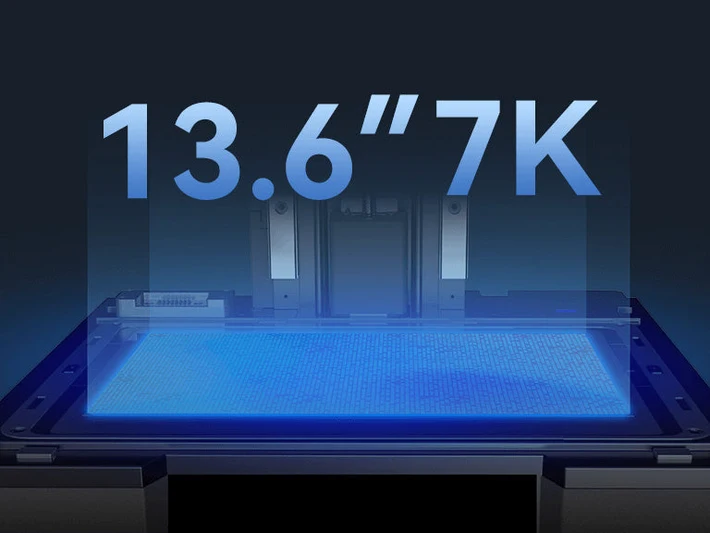

| Lcd Screen | 13.6-inch Monochrome LCD, 7K Resolution | |
| Anycubic App | Supported | |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP | |
| Machine Weight | 24kg | |
| Package Weight | 28.5kg | |
| Product Dimensions | 425*362*652mm³ | |
| Packaging Dimensions | 785*520*490mm³ | |
