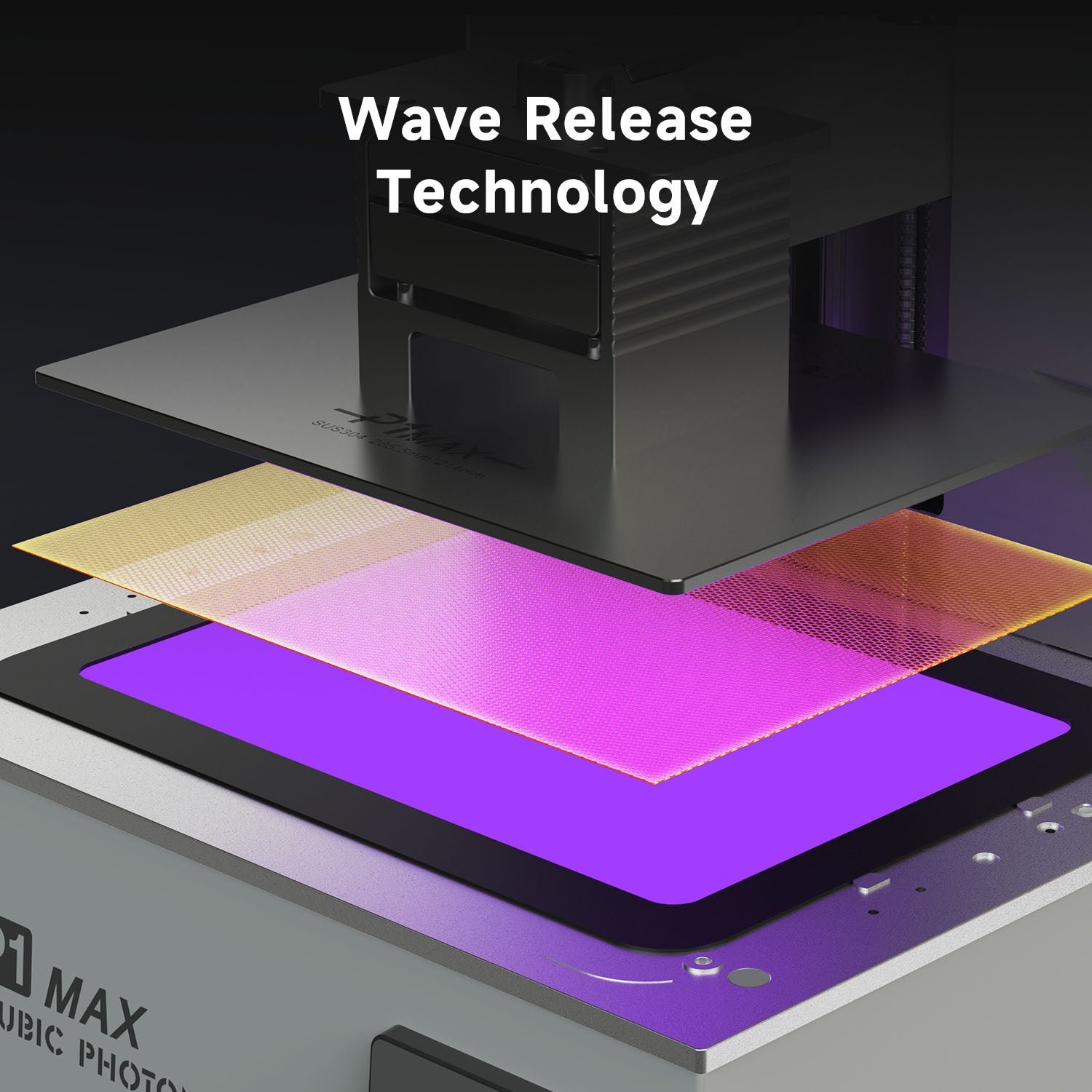

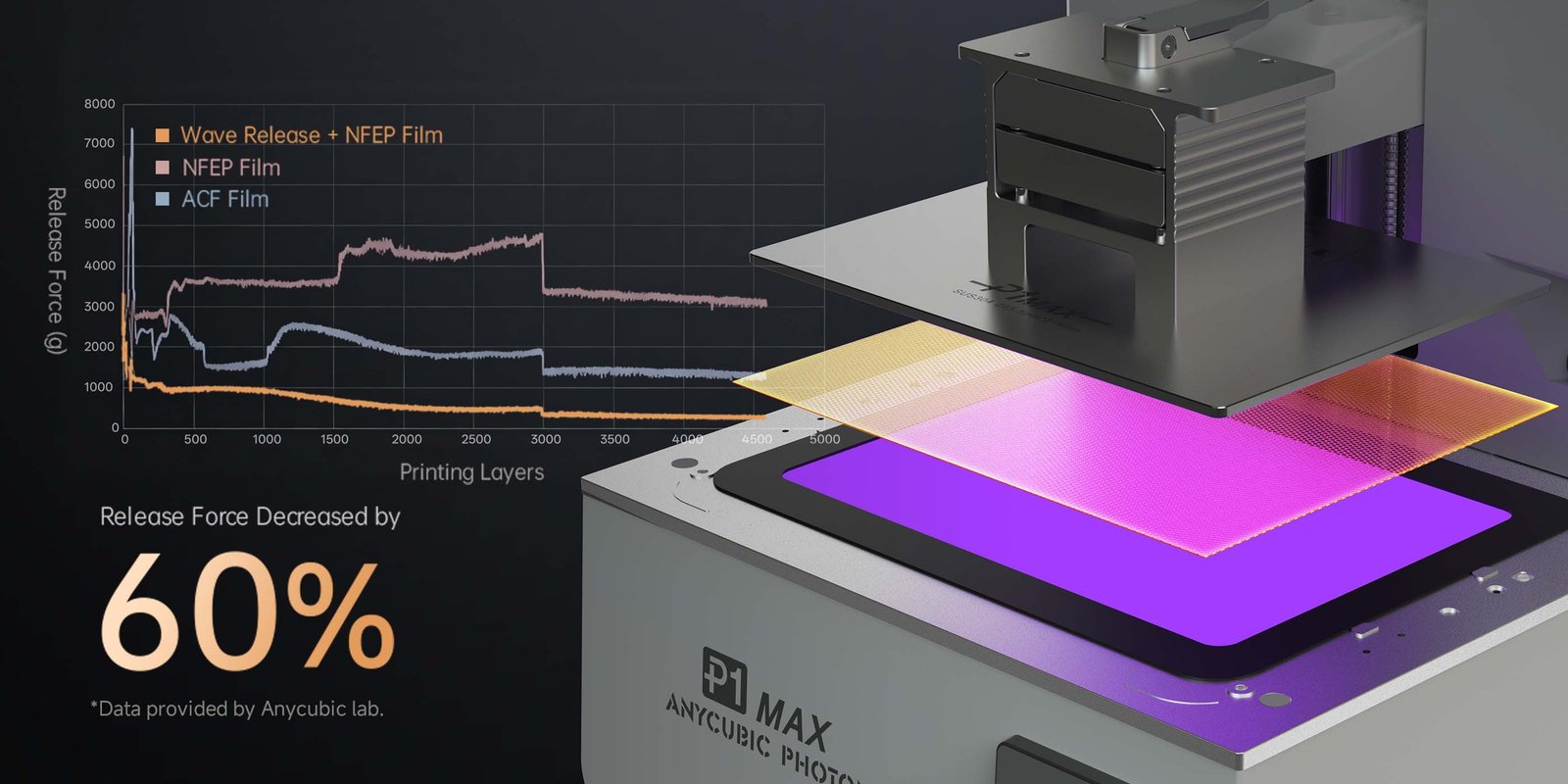

Wave Release Technology reduces release force by 60% during the lift cycle compared to standard smooth NFEP films. This leads to faster and more reliable print cycles.
Resin 3D Printer

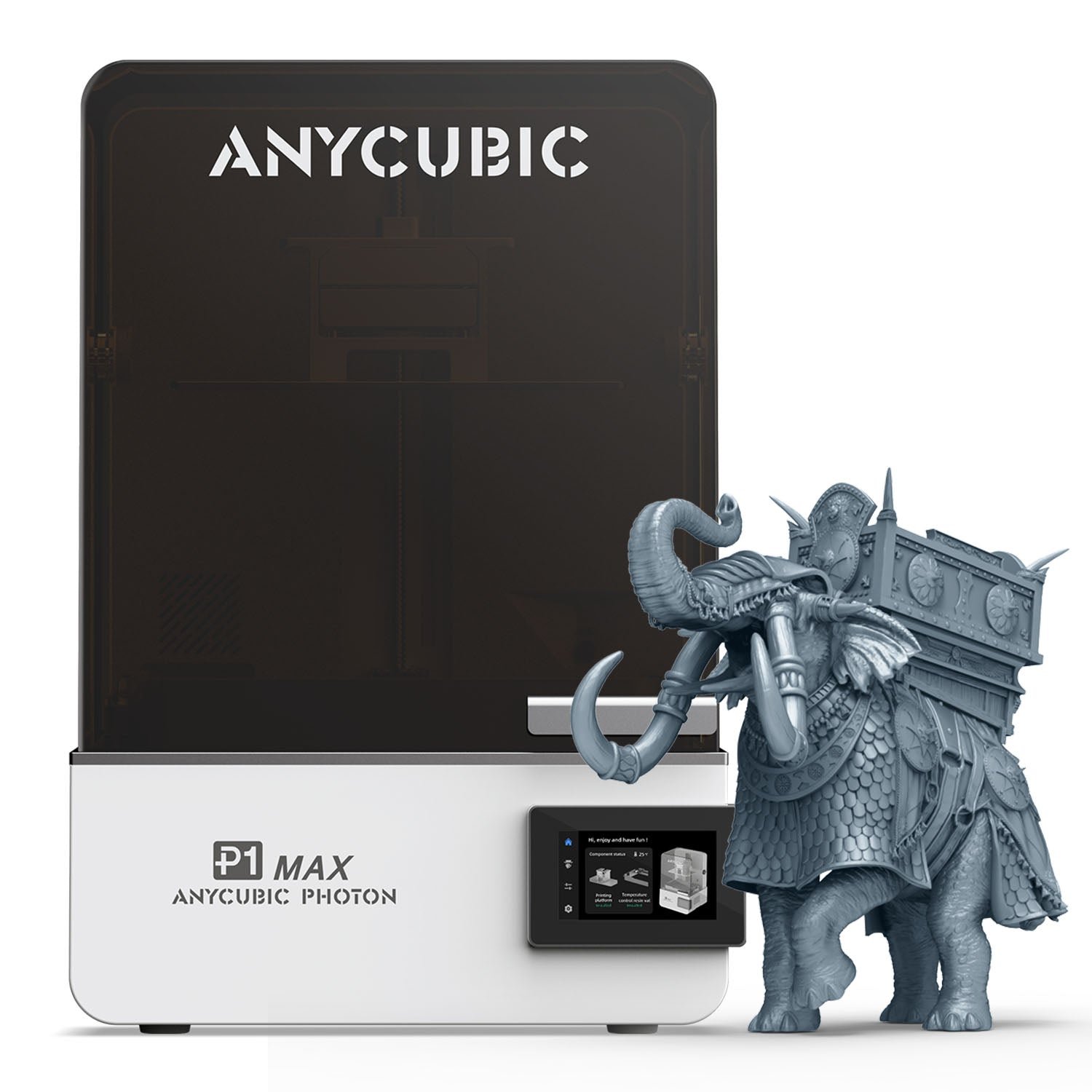

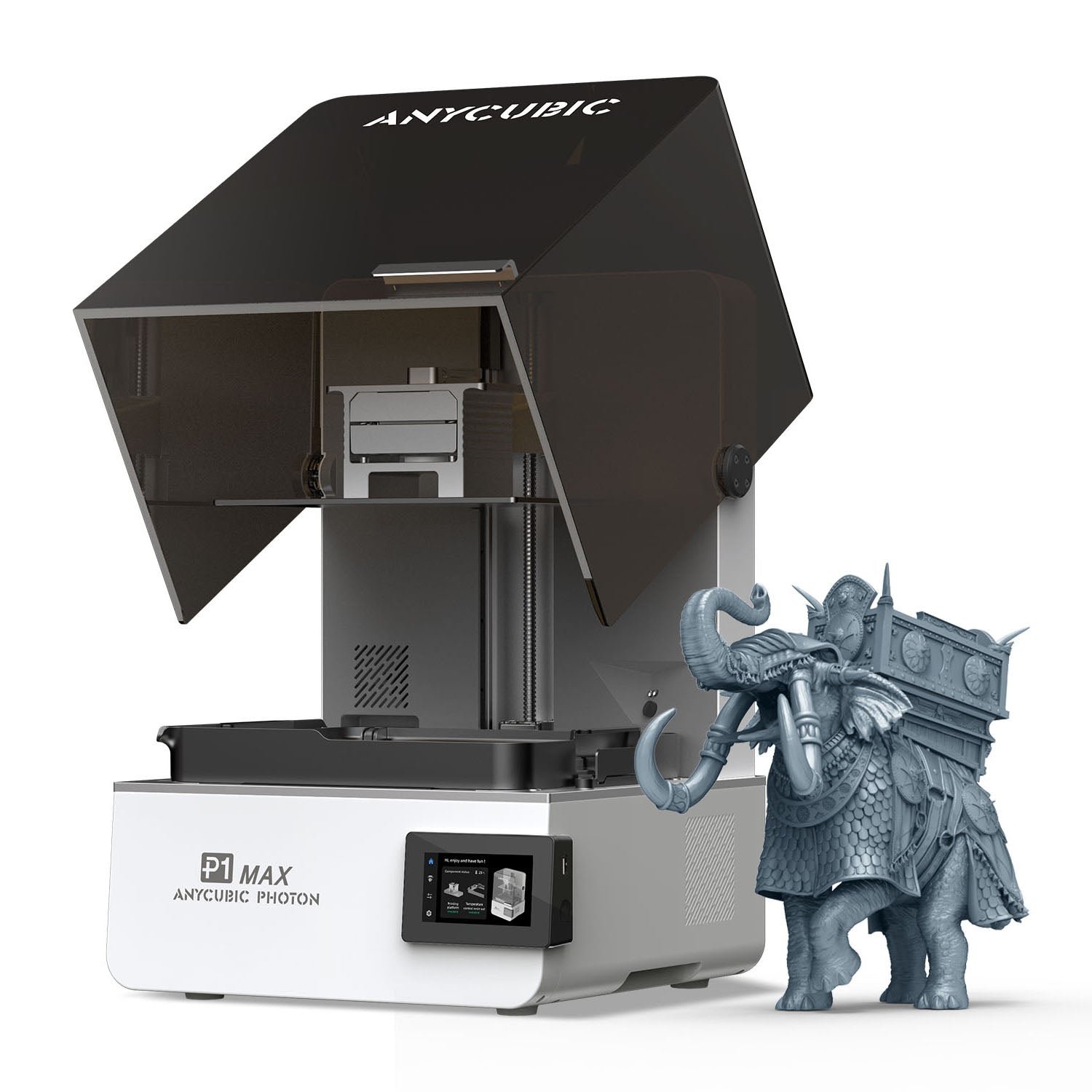

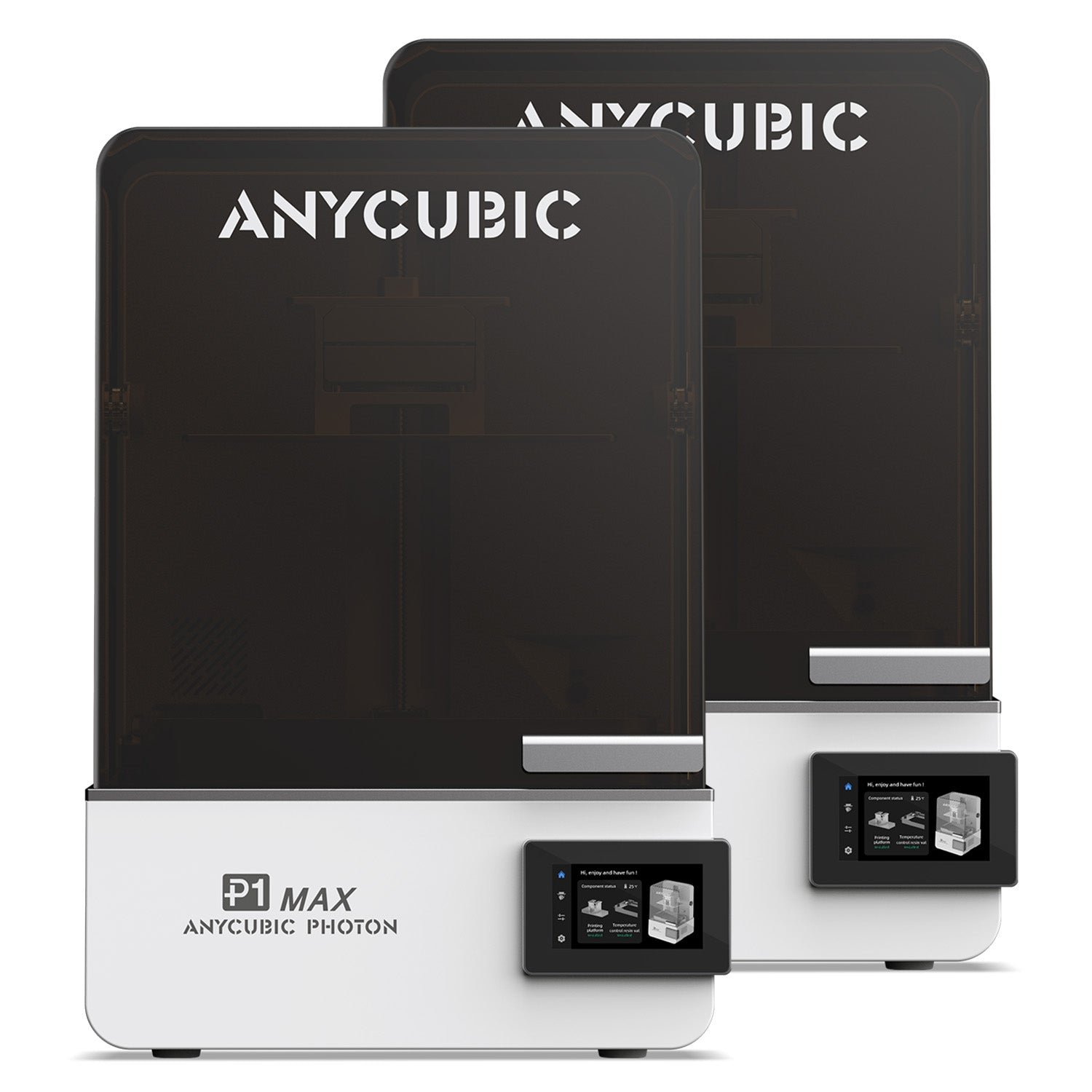

Anycubic Photon P1 Max
rate_review Be the first to review
NPR
1
alarm
Promo Ends In: 00:00:00
Out of Stock
Quantity
compare_arrows
Compare with Resin 3D Printer
1
Why choose Photon P1 Max?
Wave Release Technology

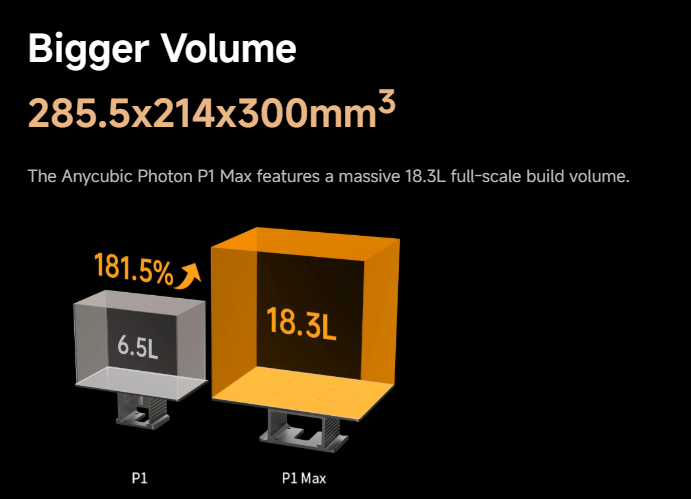

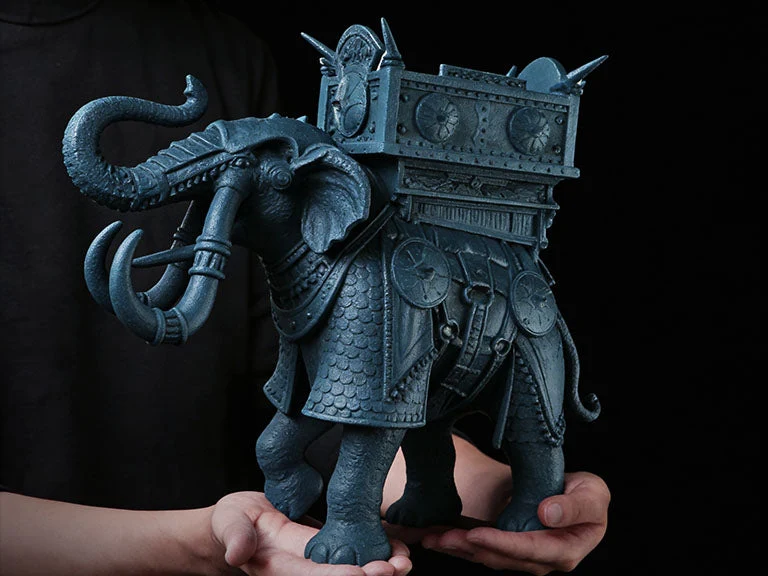

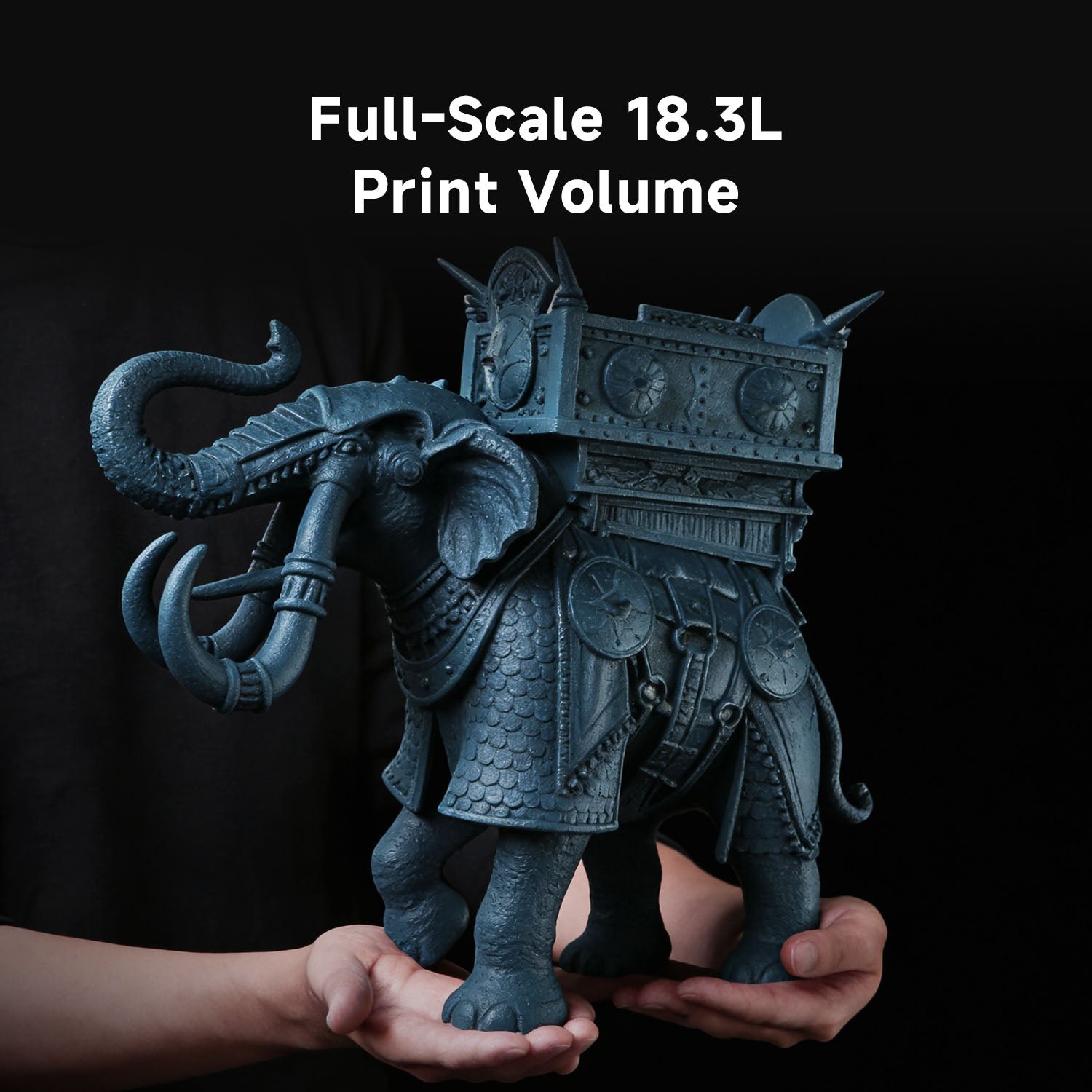

Full-Scale 18.3L Print Volume
92% Light Uniformity

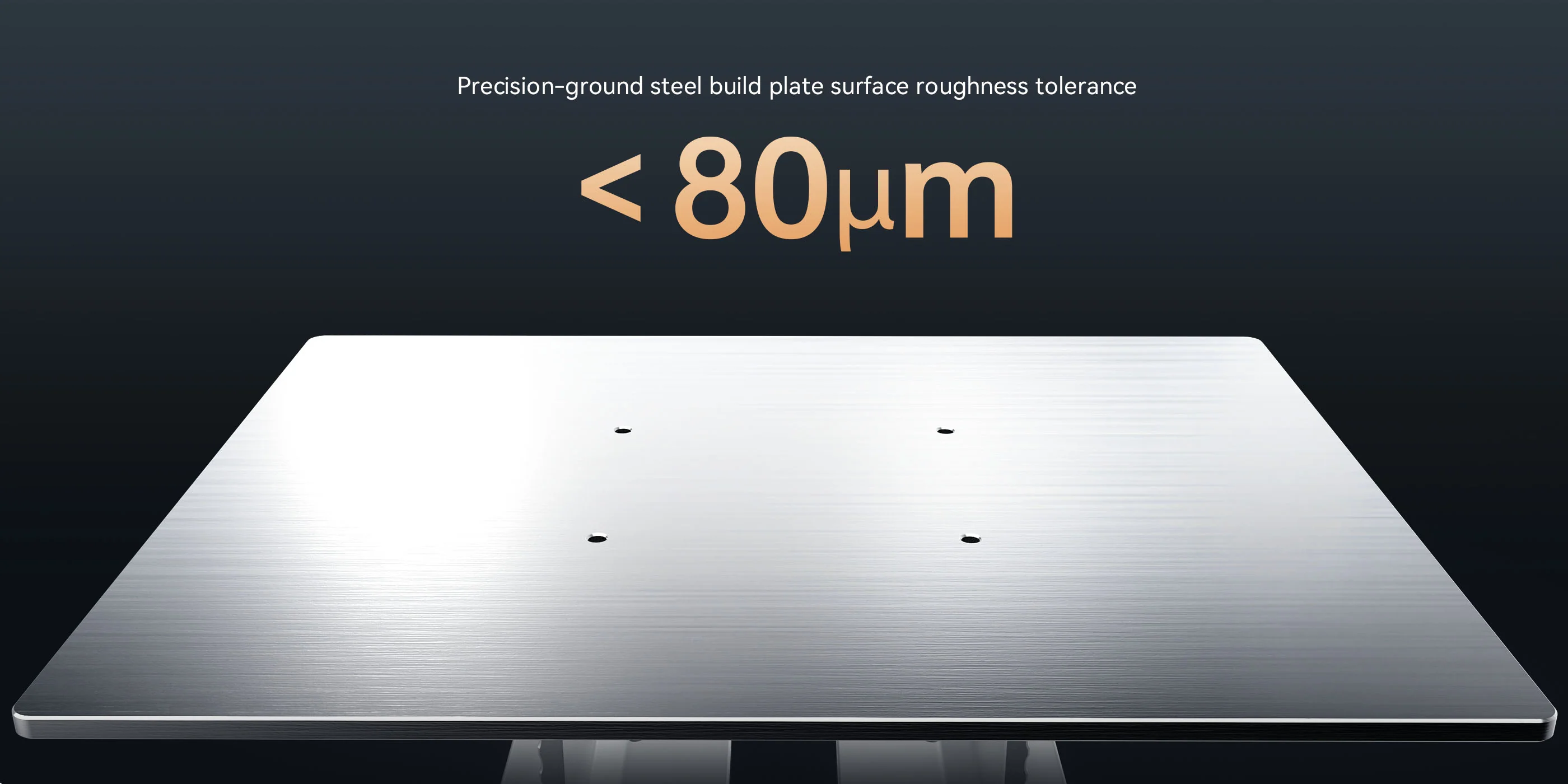

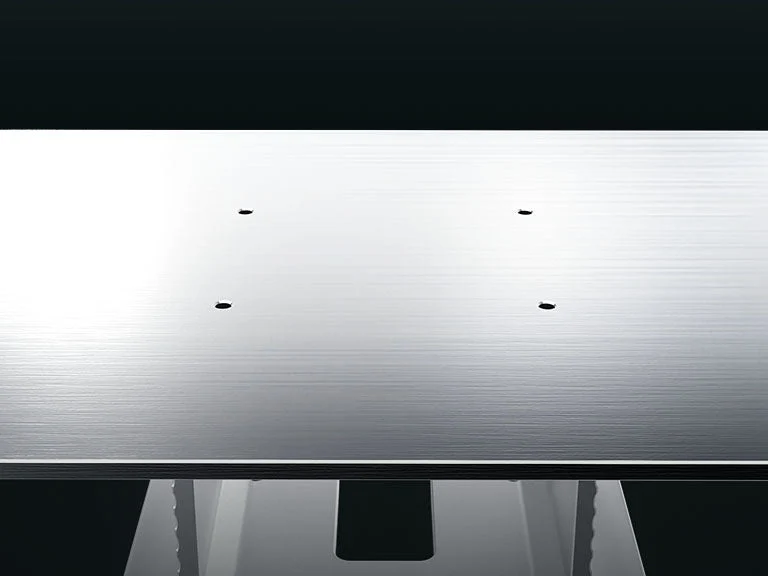

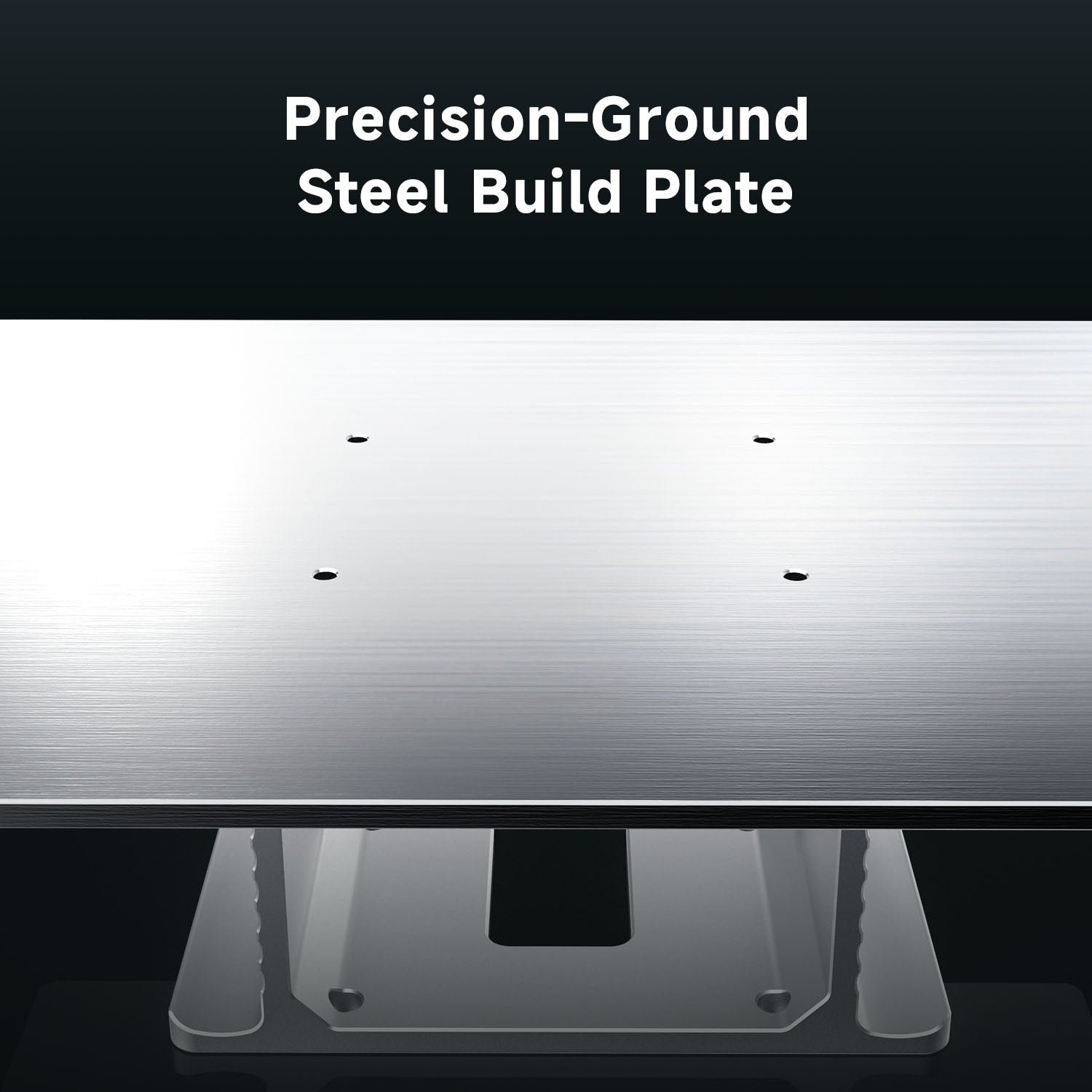

Precision-Ground Steel Build Plate
Engineered for 8000cps Resin
Intelligent Printing Assistant 3.0

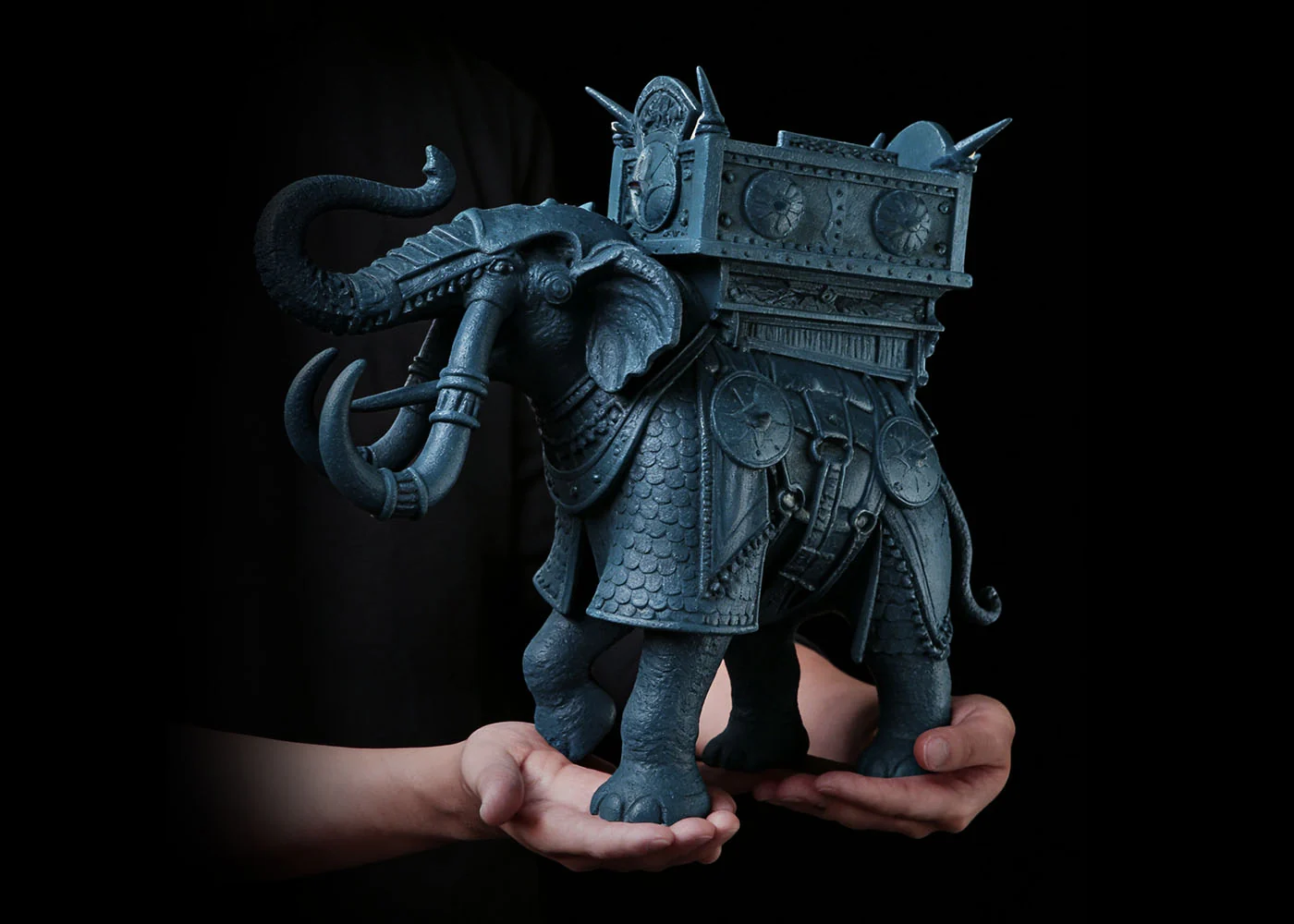

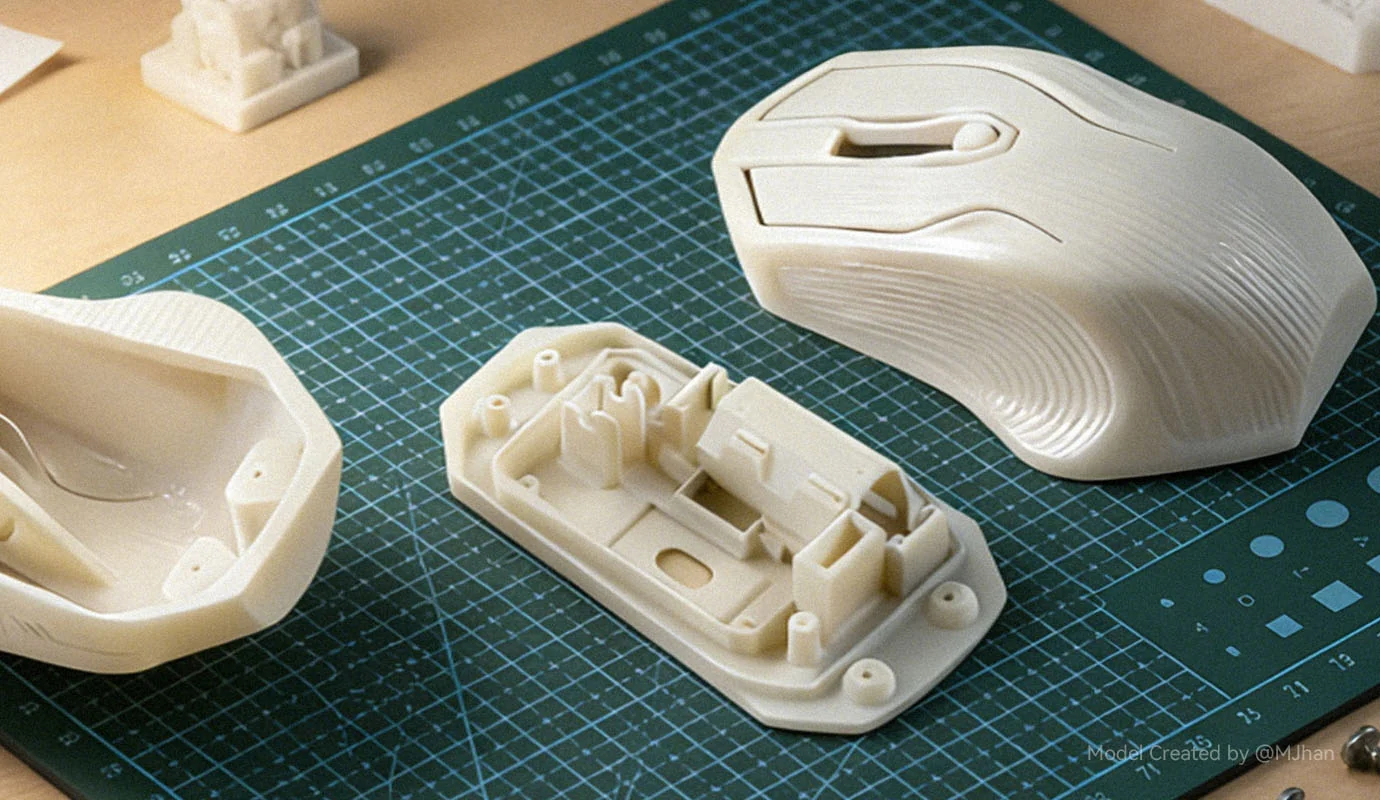

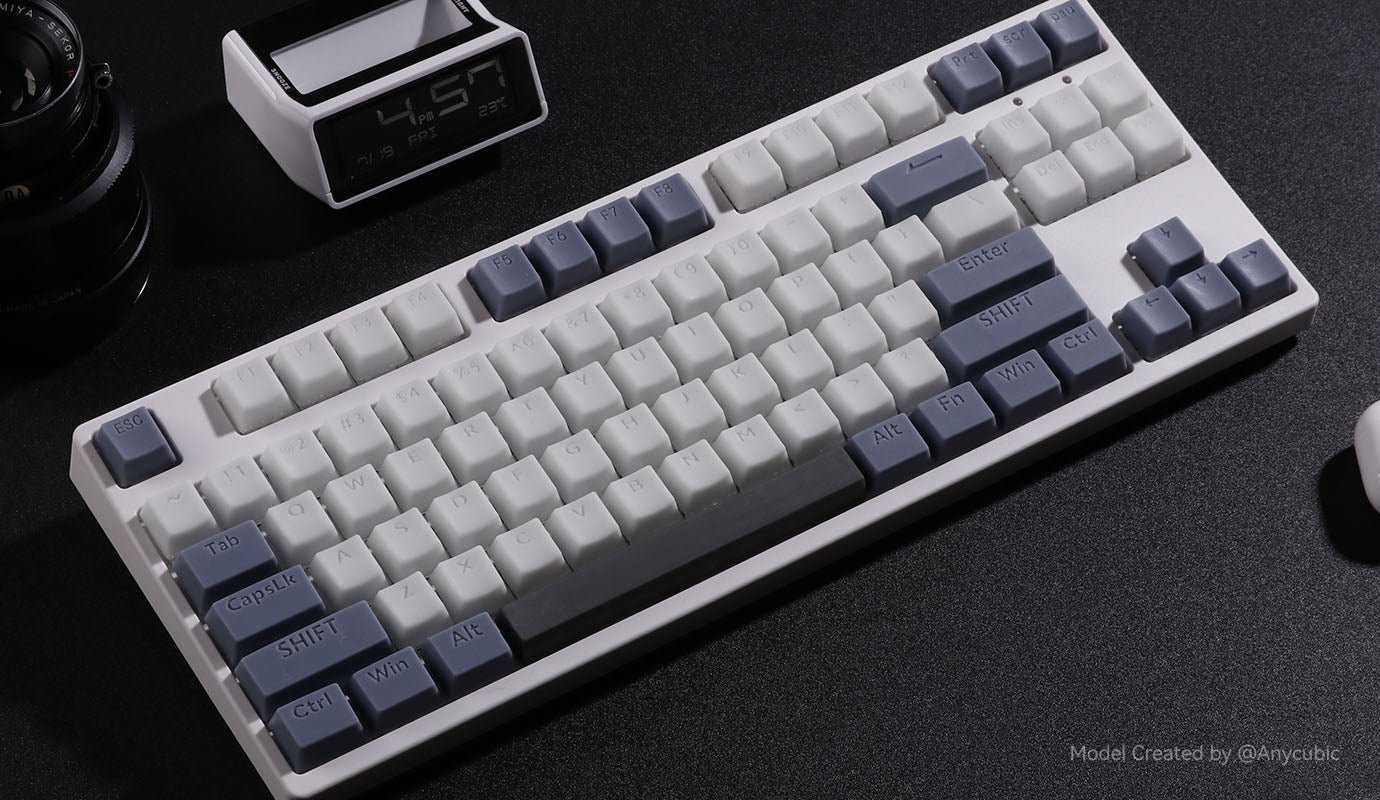

Prints from First Users
Built for Ambition,from Details Up
Next-Level Craftsmanship:Consecutive Successes over 1,000 Print Cycles[1]

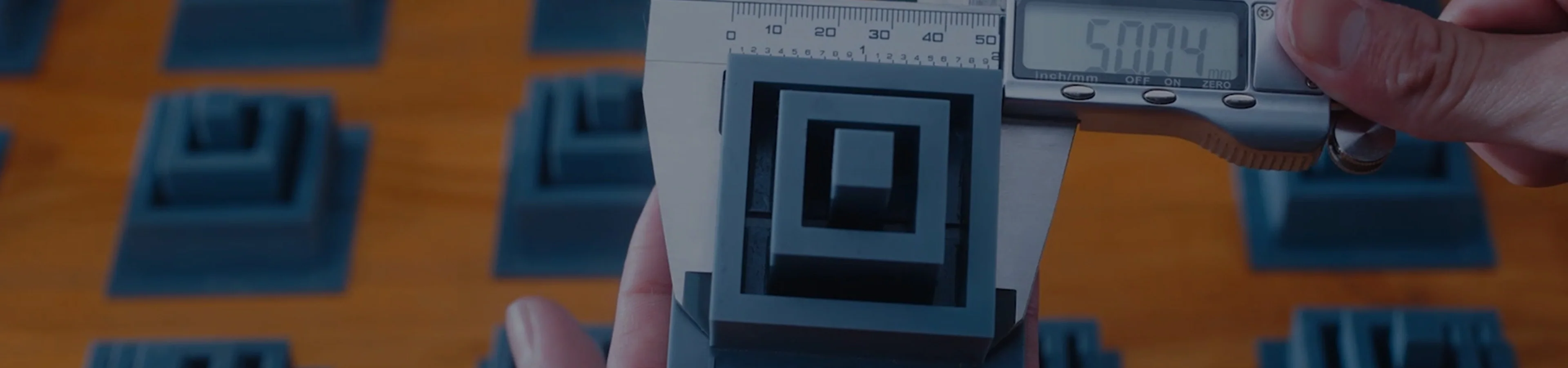

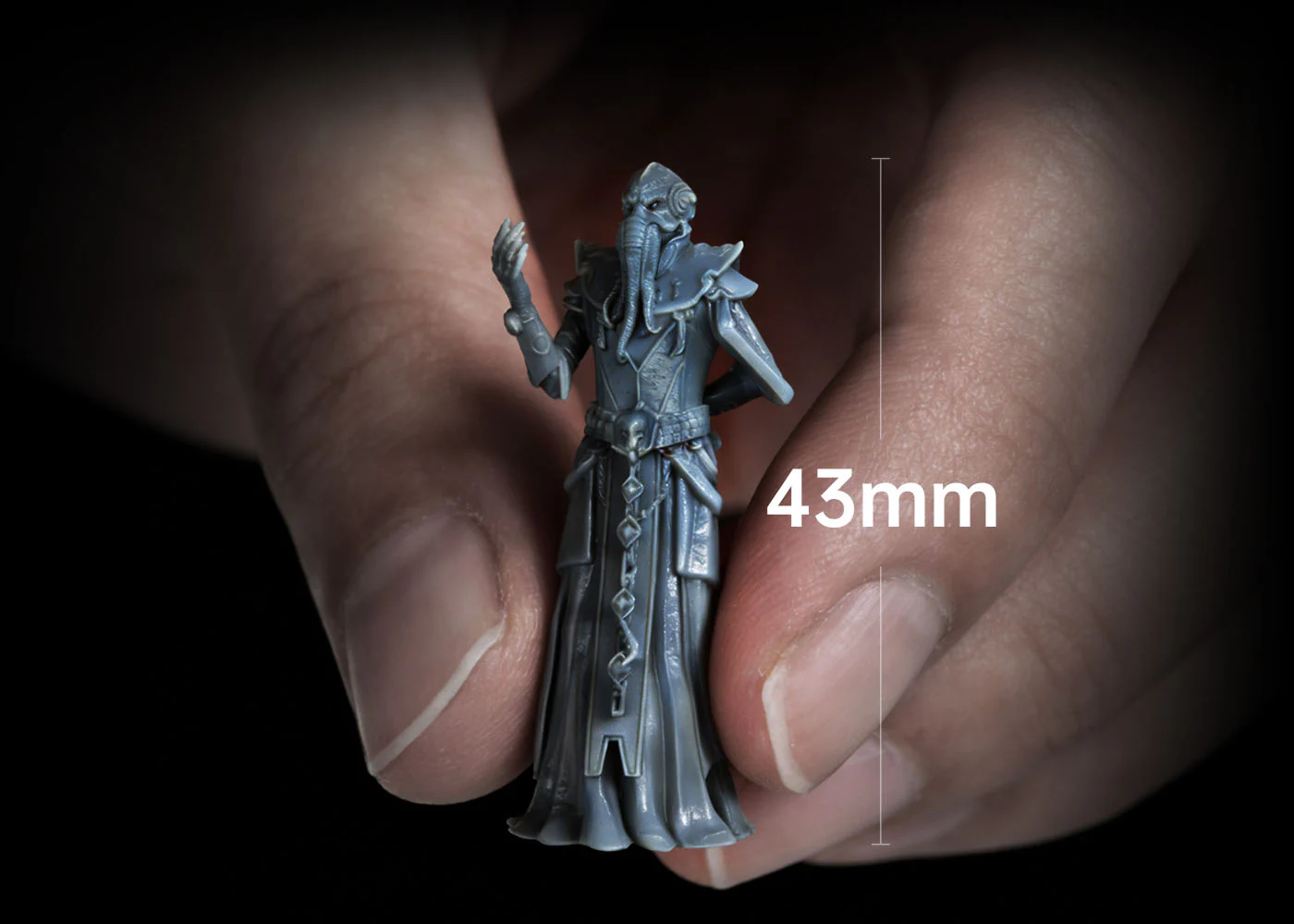

Tolerance Down to the Width of a Human Hair
Uniformed Light Exposure
The Source of Consistency:
More Light PrecisionCOB + Aspherical Fresnel Lens

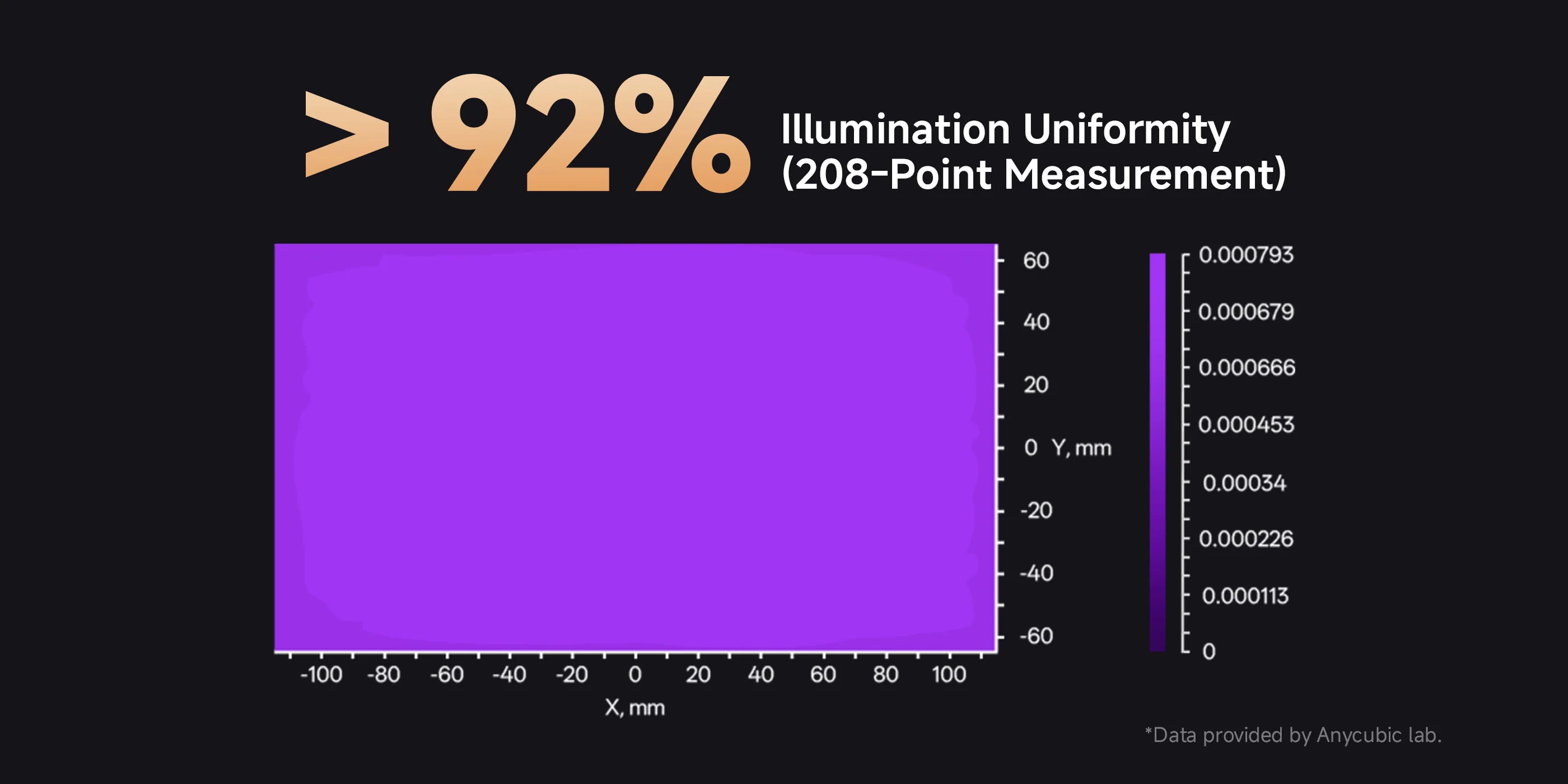

More Uniform Light DistributionFull-screen Rolling Calibration

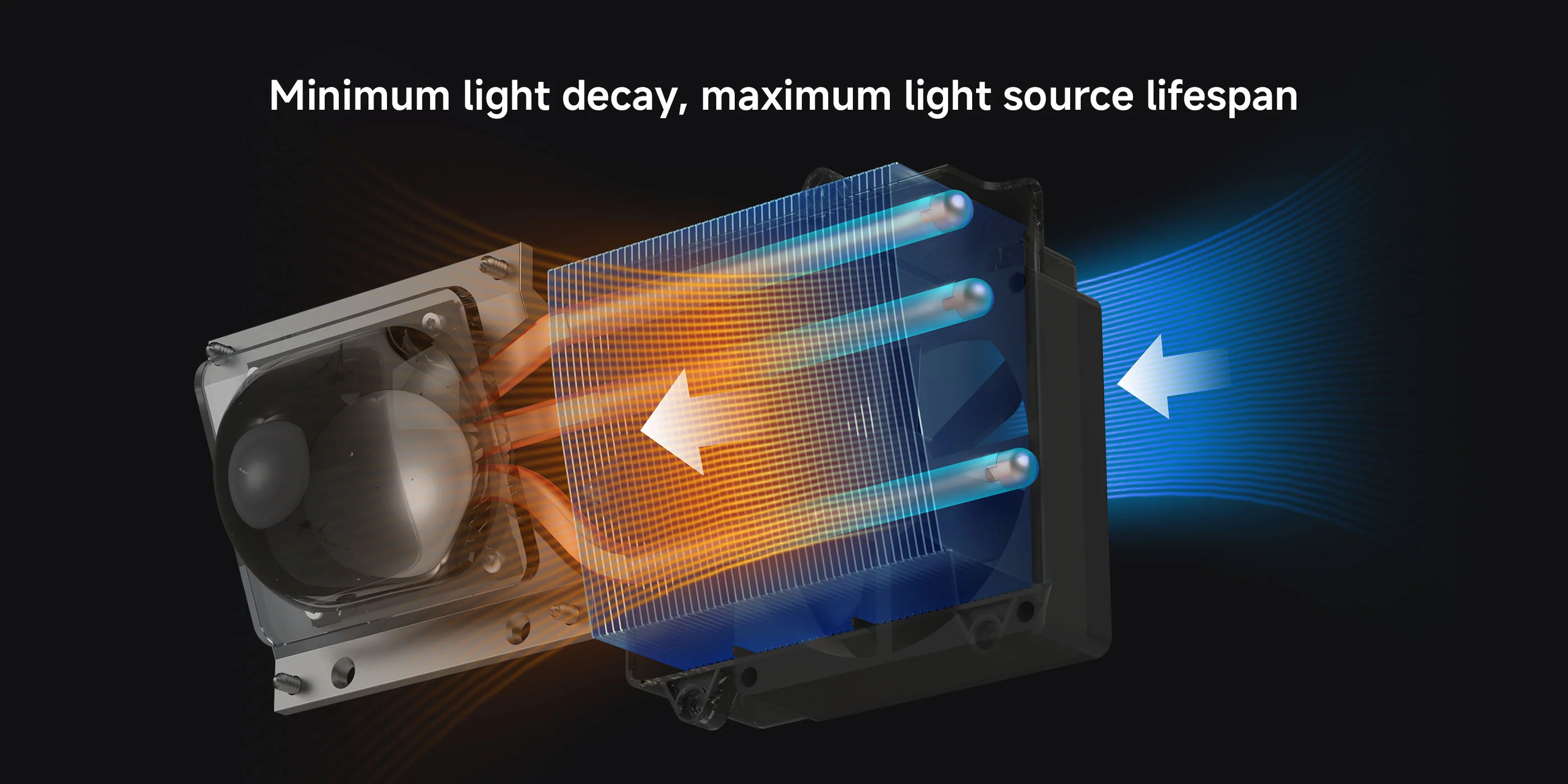

More Stable Light Output8mm Copper Cooling System

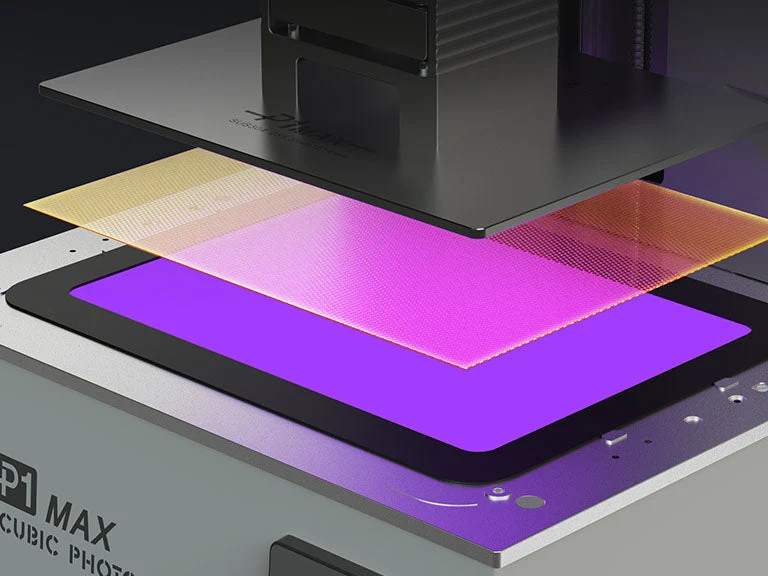

Wave Release Technology
Intelligent Leveling System 3.0, Auto-Leveling the Playing Field

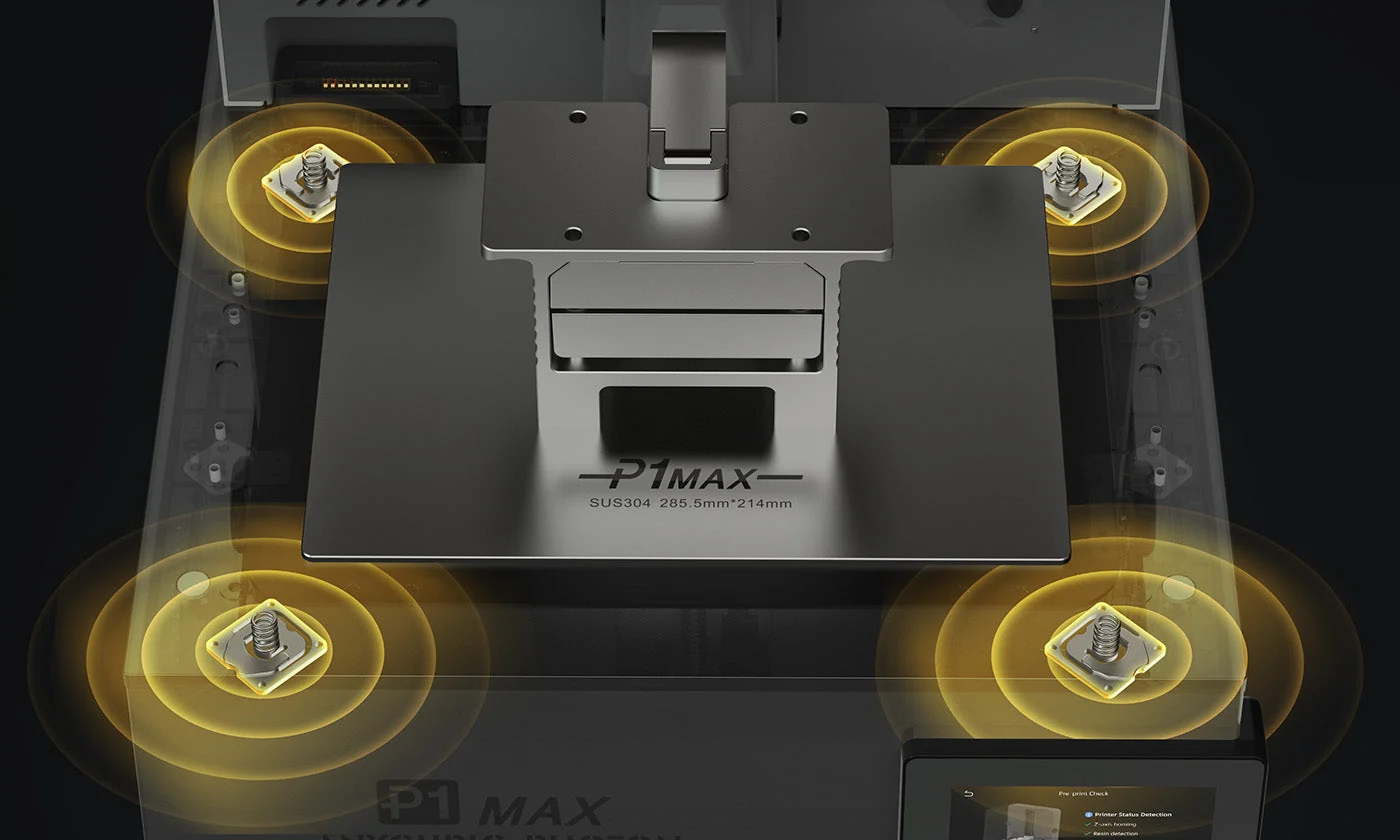

Factory Calibration
Prints right out of the box
Prints right out of the box

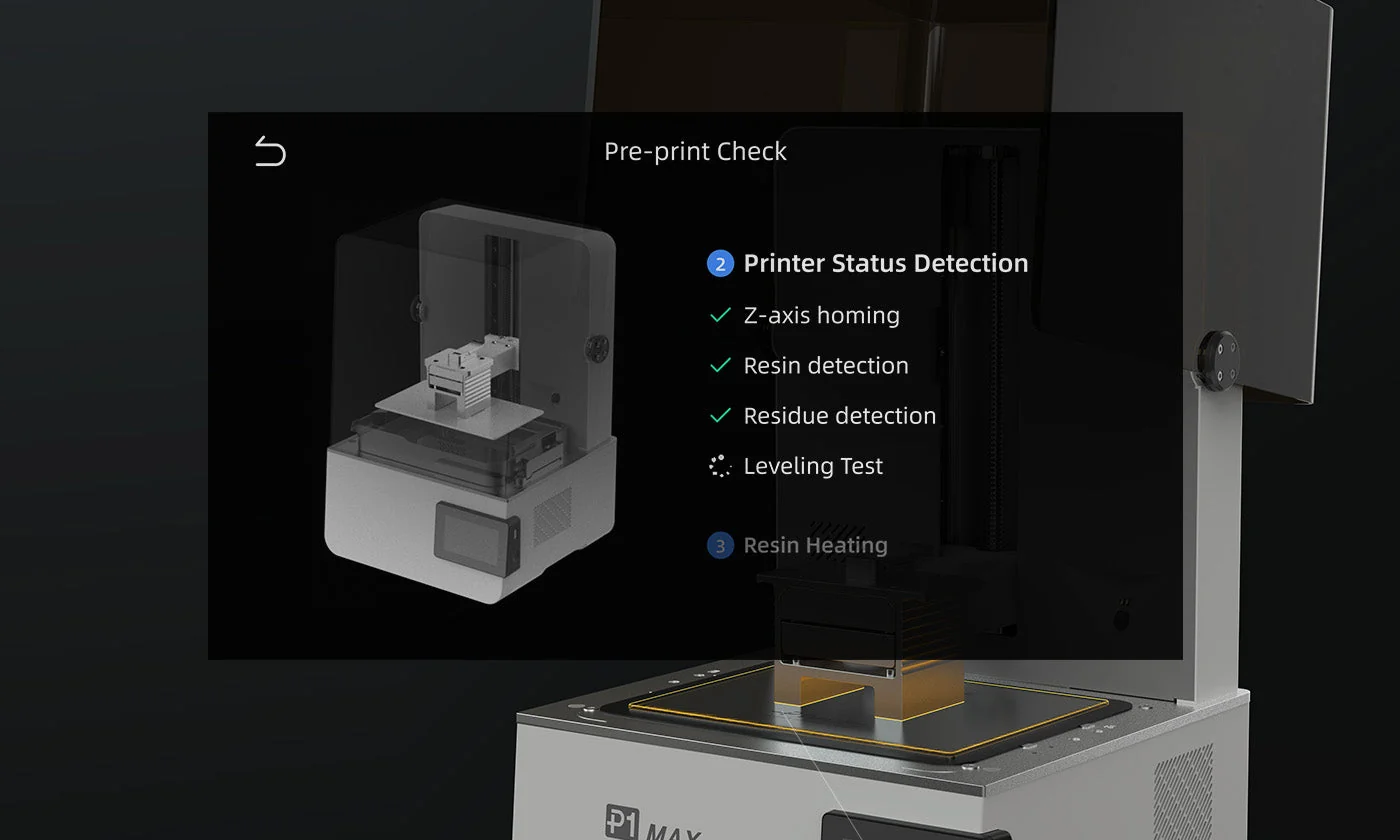

Auto-Leveling Self-Check
Automatically performs bed leveling self-check before printing to ensure optimal platform readiness.
Automatically performs bed leveling self-check before printing to ensure optimal platform readiness.

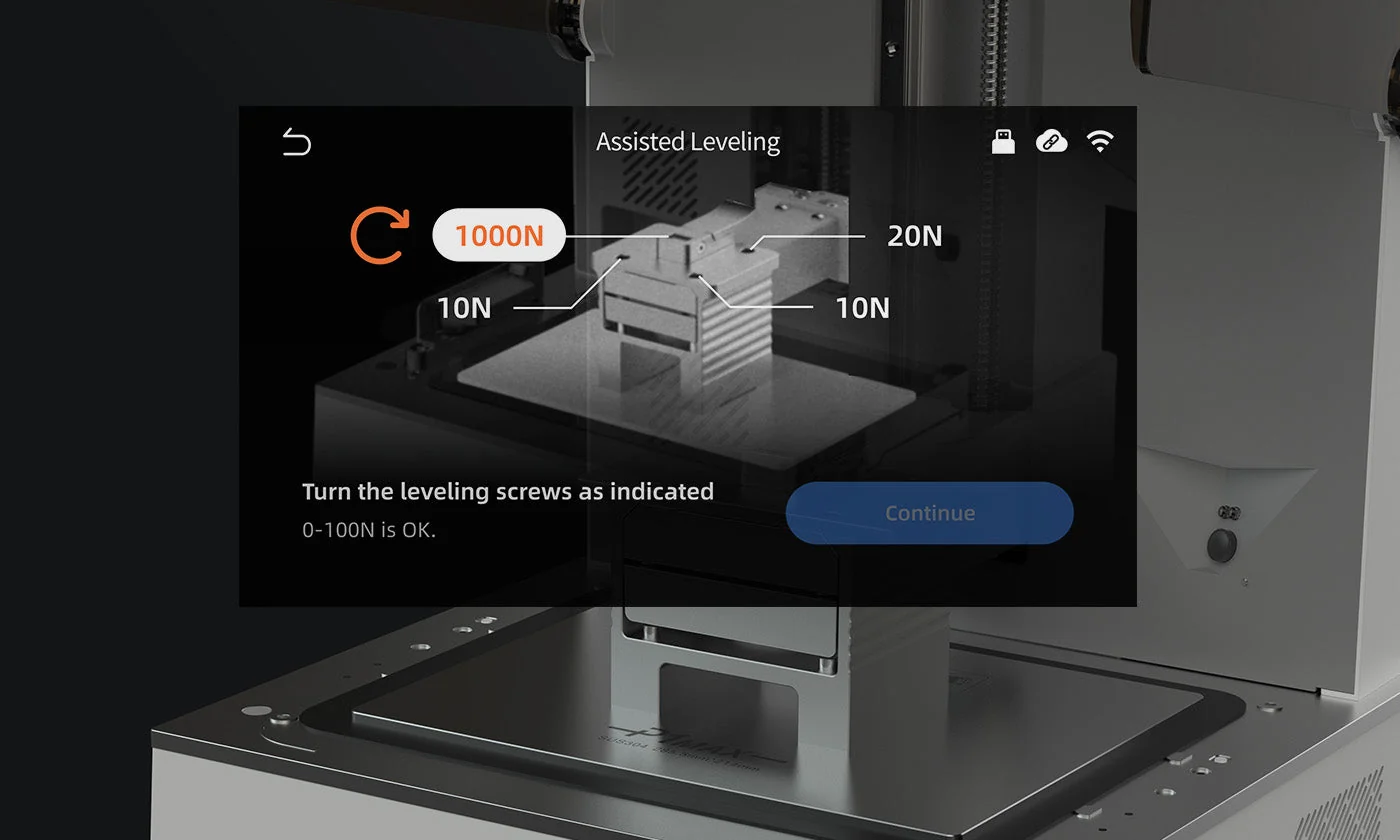

Leveling-Assist
Displays real-time force values at four corners for fine-tuning.
Displays real-time force values at four corners for fine-tuning.
Intelligent Dynamic Adjustment, Fast & Steady Wins the Race
Dynamic Release 3.0

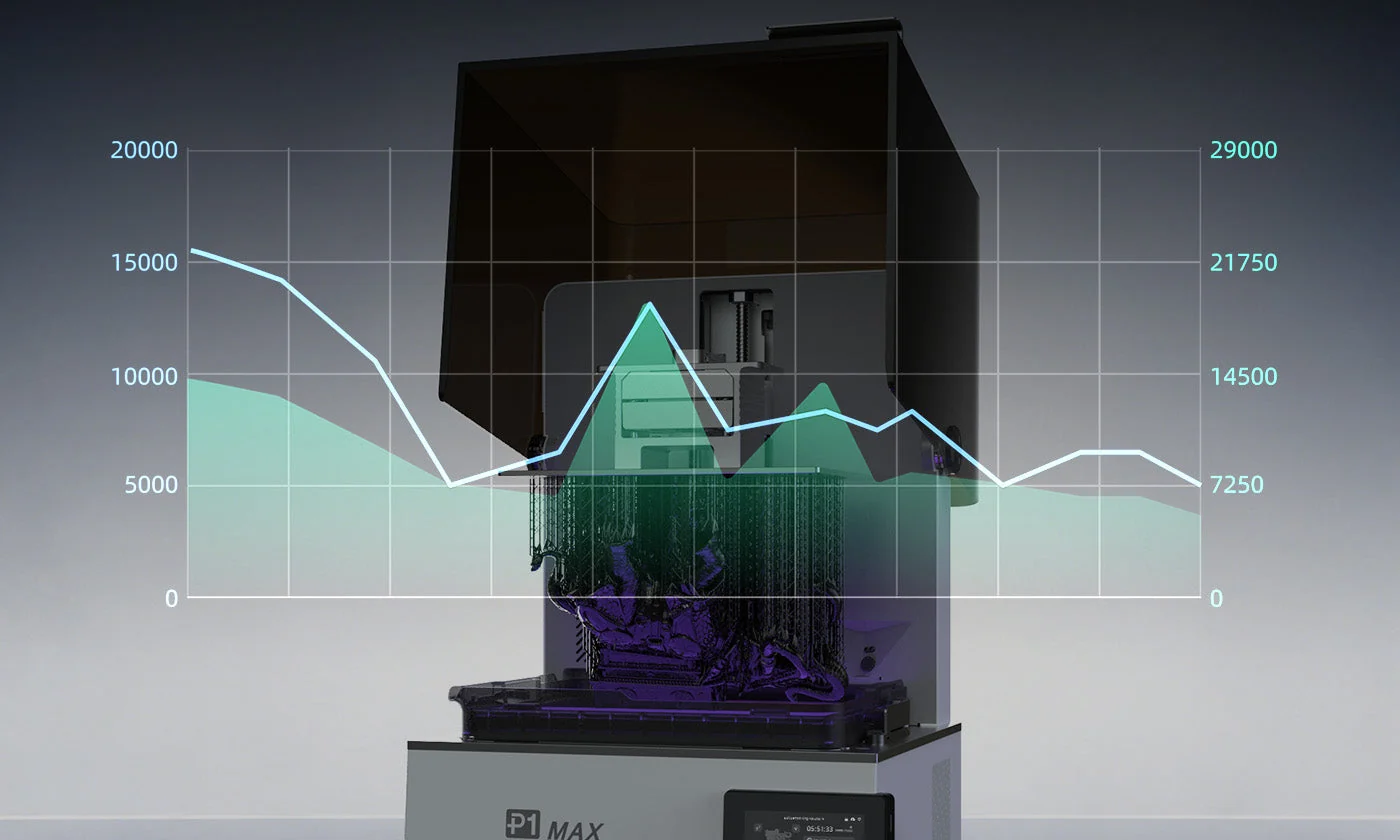

Monitors real-time layer separation forces to modulate the lift height and speed. This ensures reliable release with every layer, significantly boosting both print success rate and quality.
Dynamic Light-Off Compensation 3.0
Calculates resin flow-back rate and dynamically adjusts the light-off duration to precisely prepare each layer for exposure, ensuring optimal speed and efficiency.

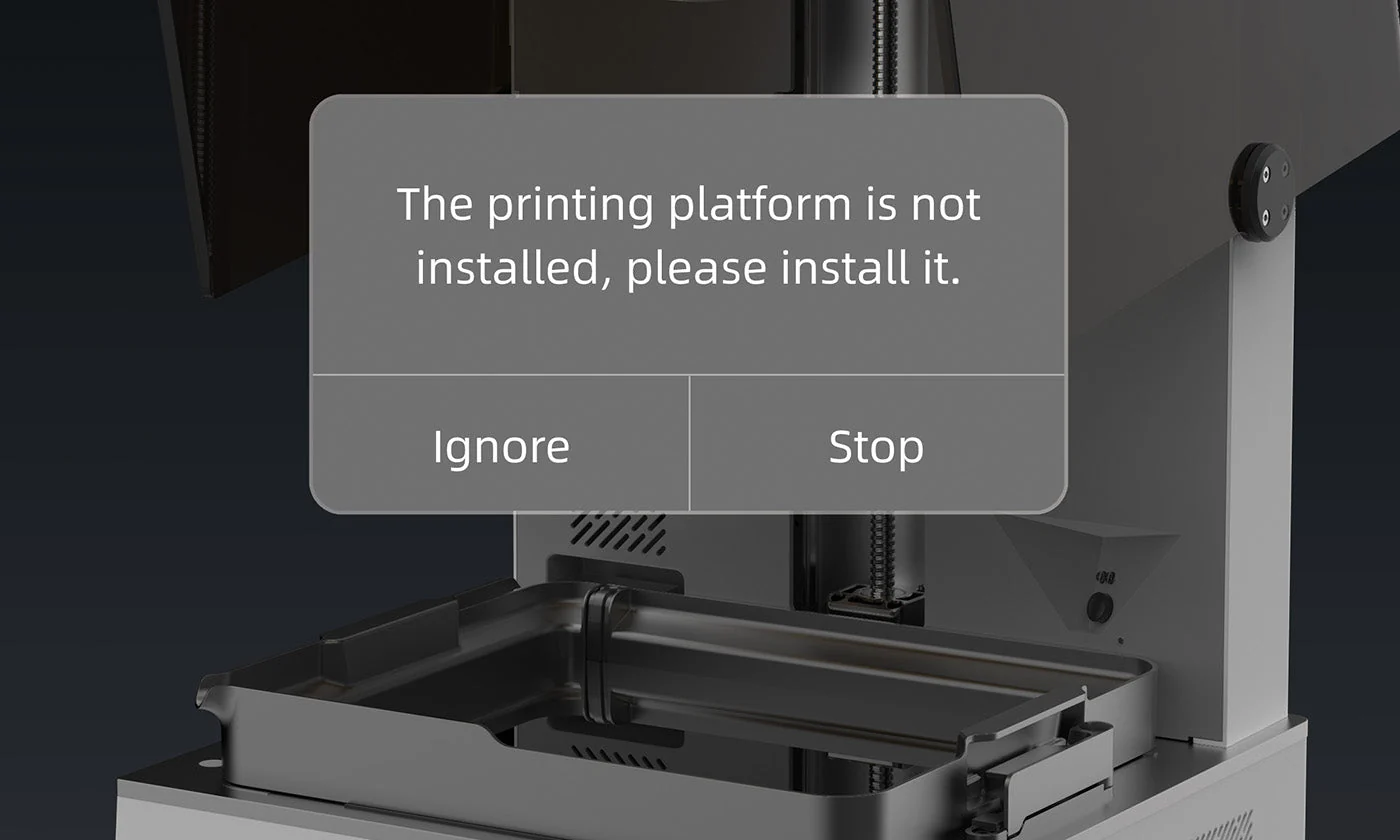

Build Plate Installation Inspection, AI Detection

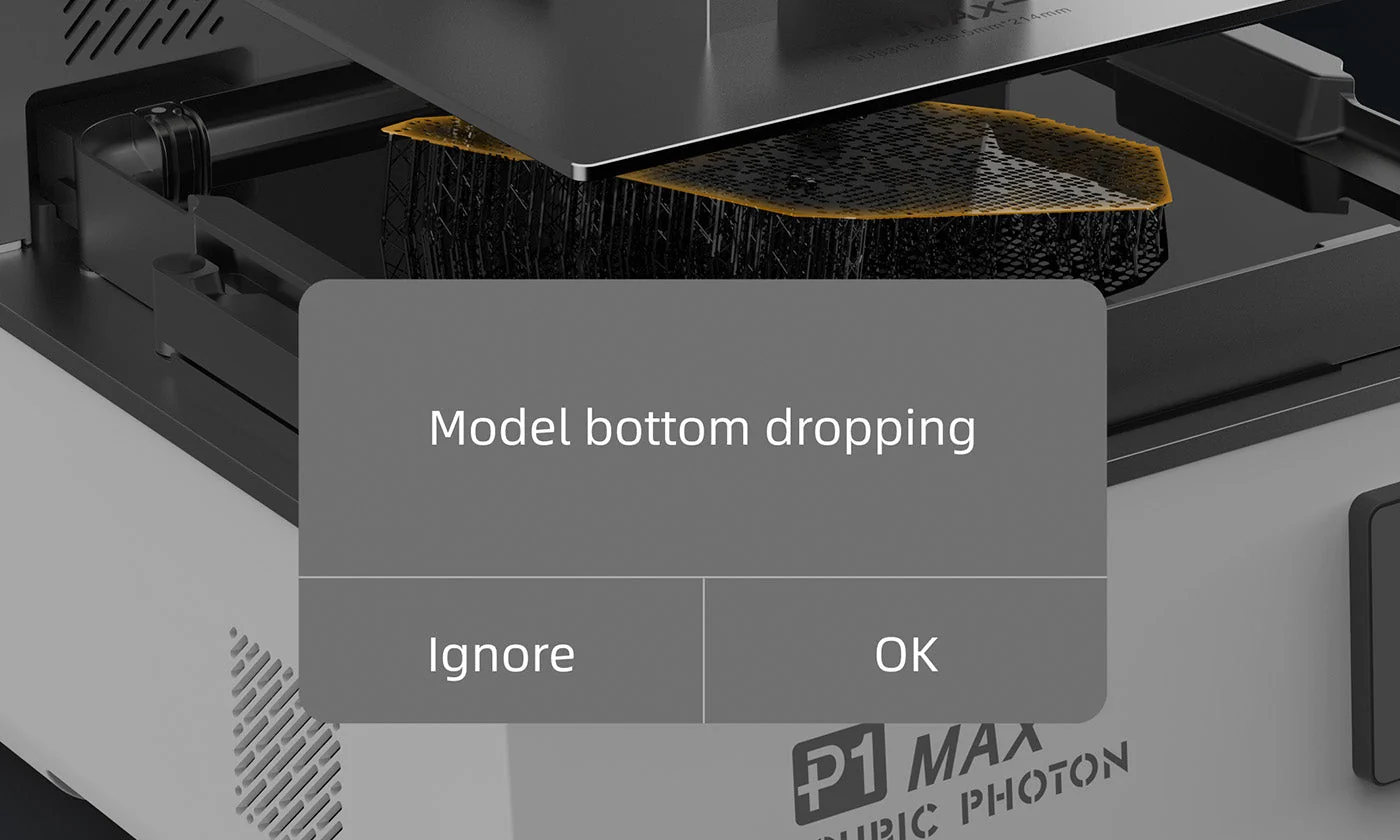

Bottom Layer Separation Inspection, AI Detection

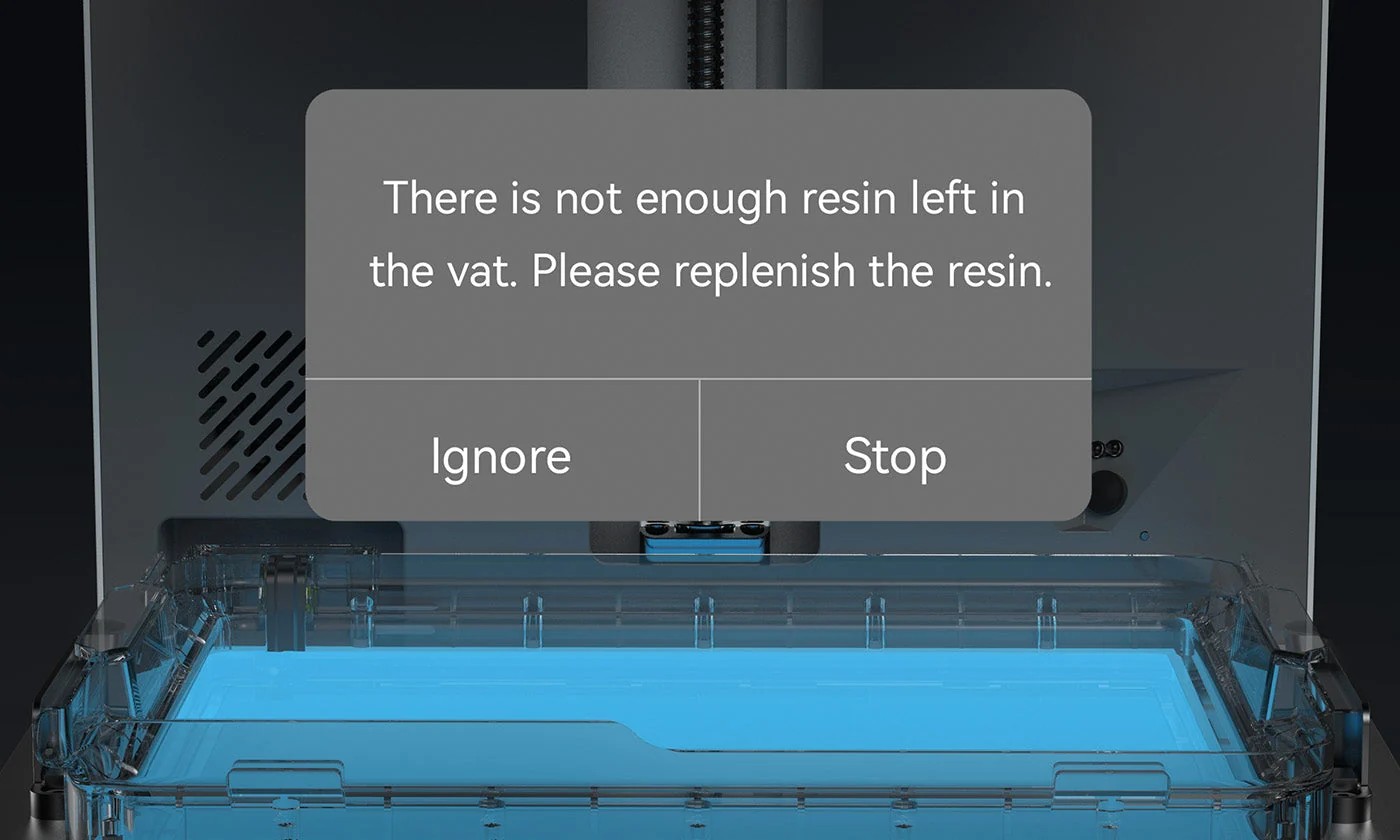

Resin Level Inspection

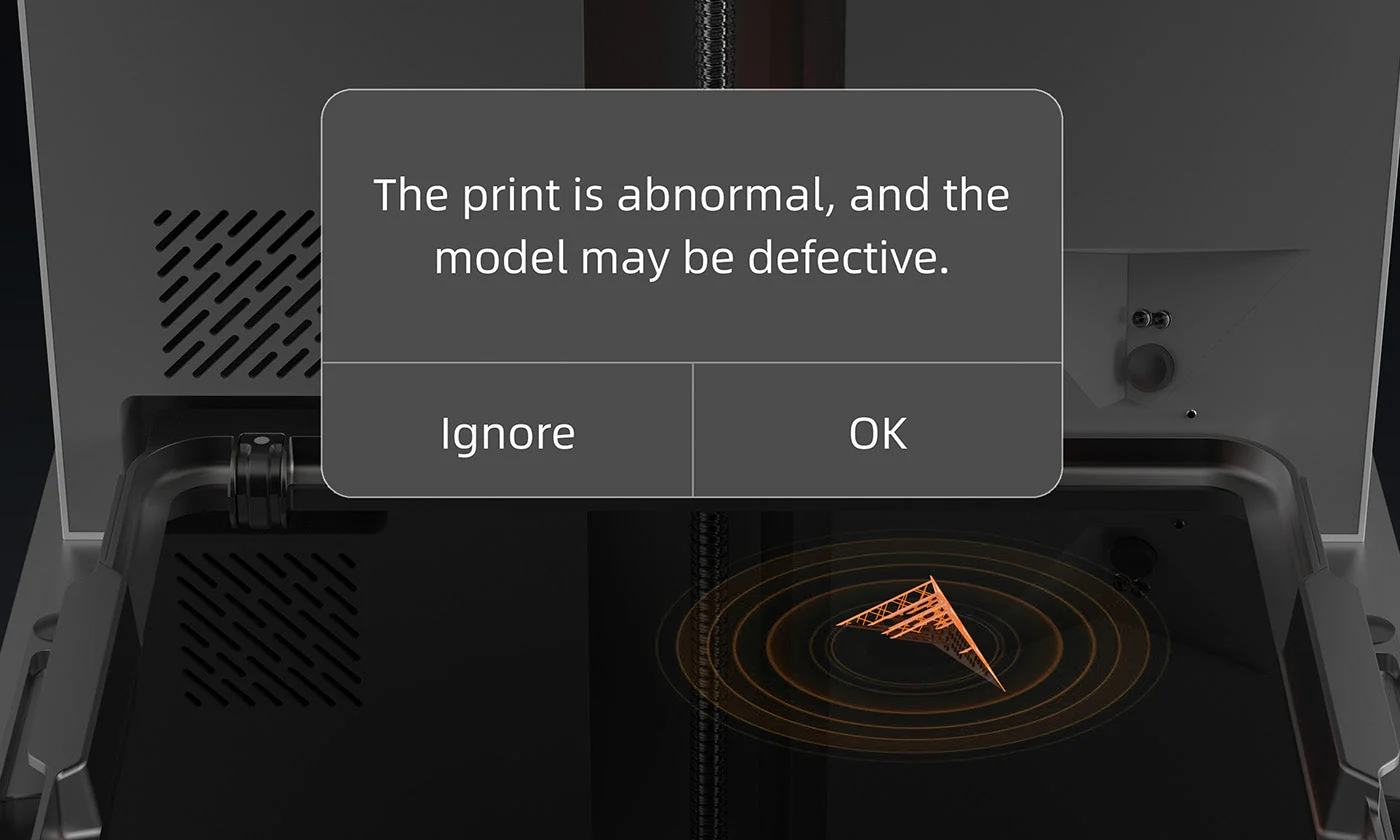

Residue Inspection

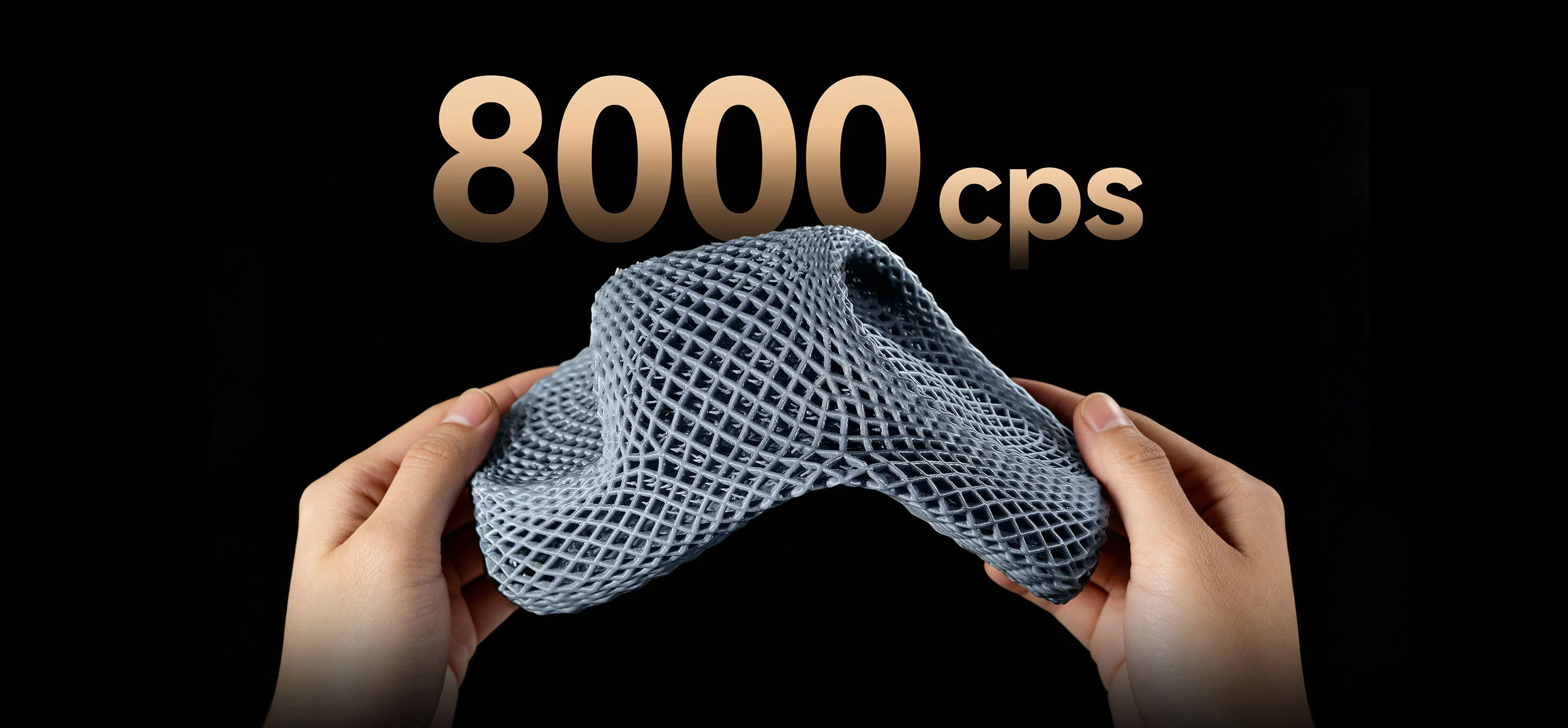

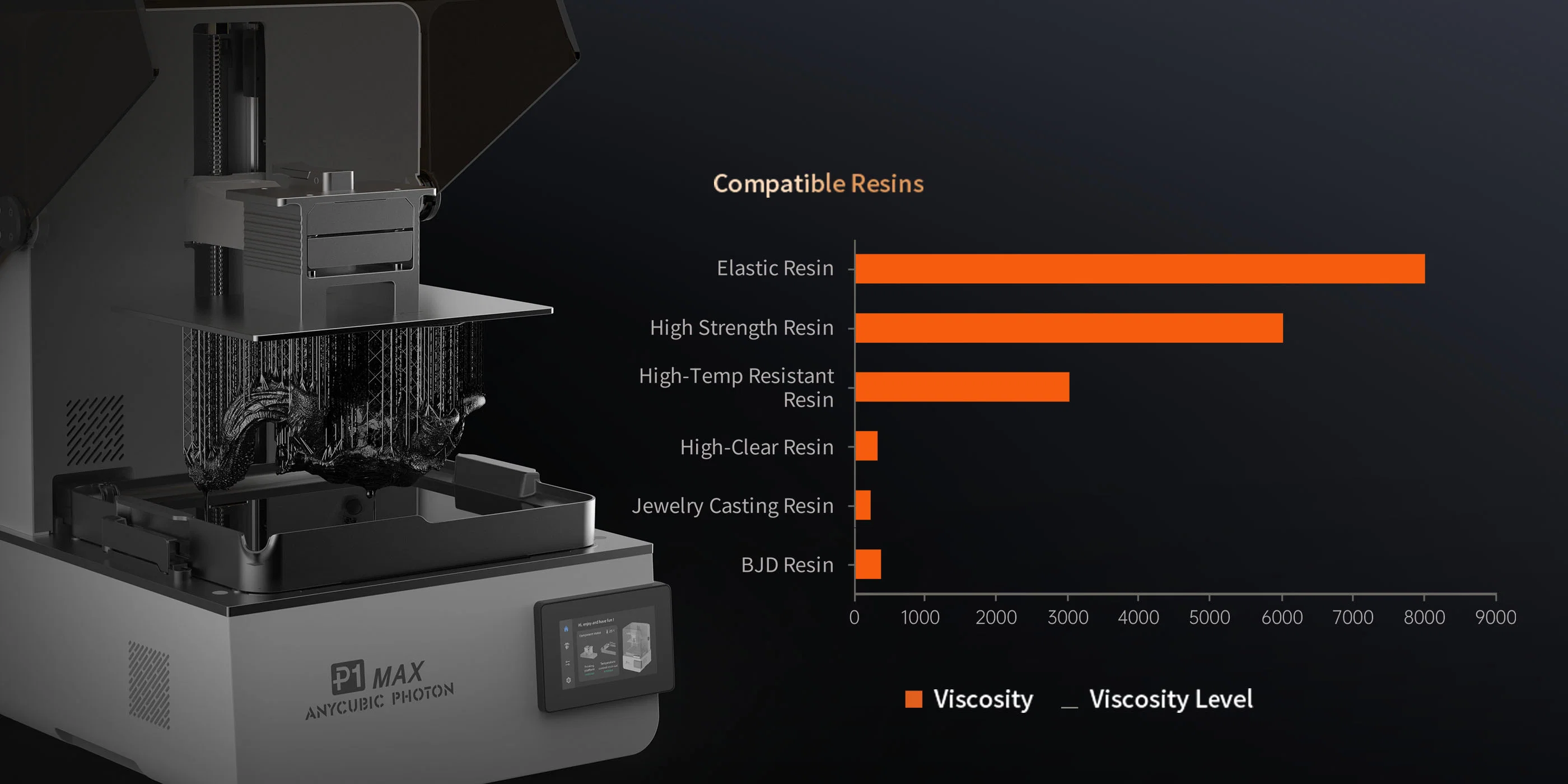

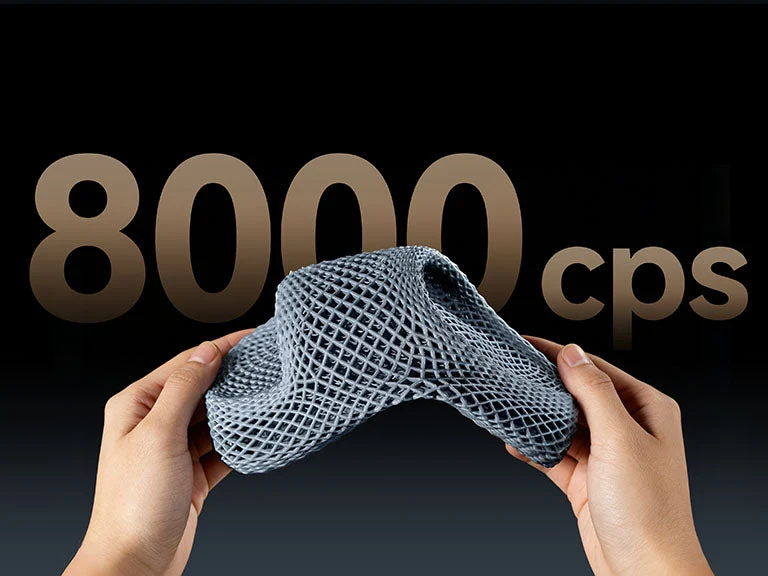

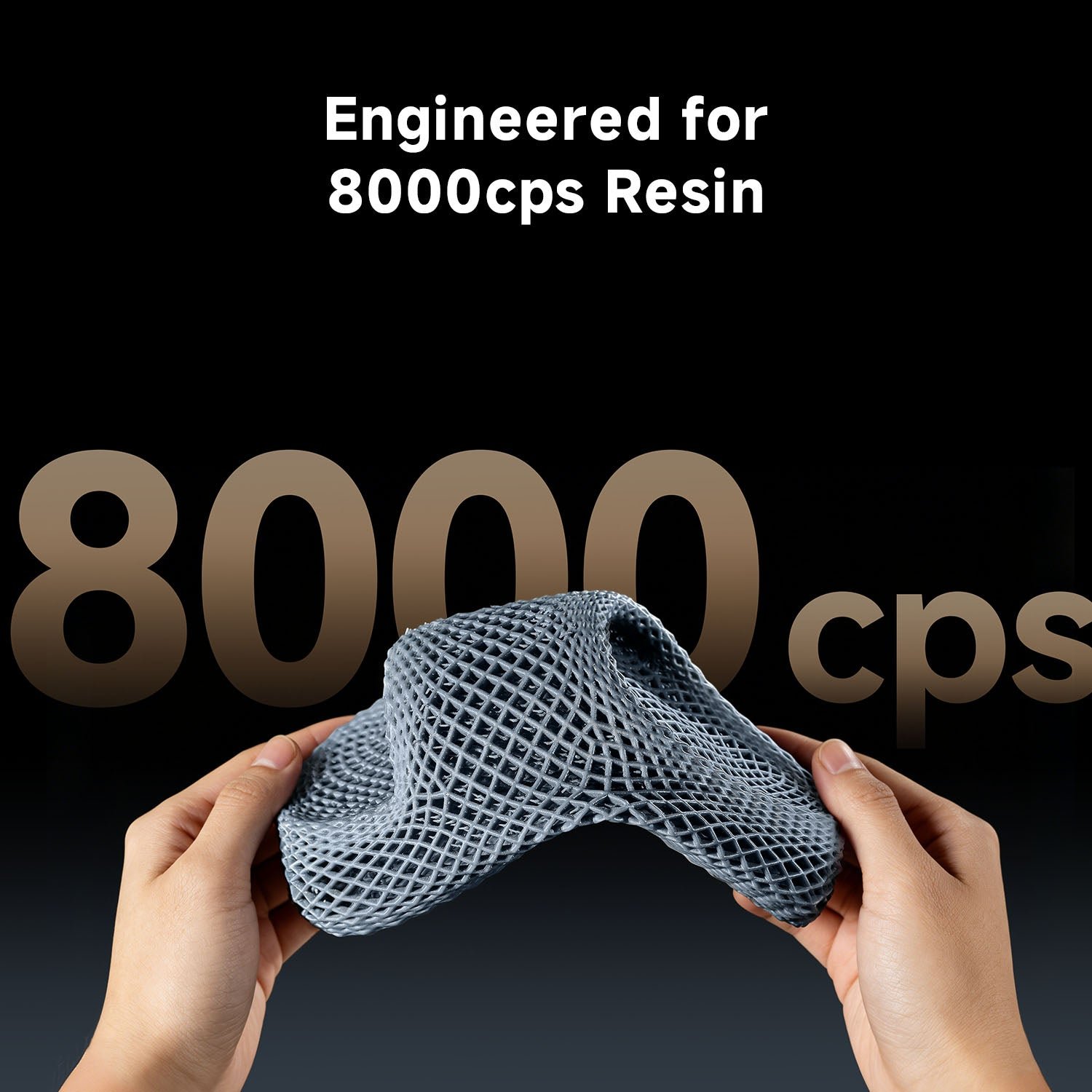

Engineered for Ultra-Viscous 8000cps Resin

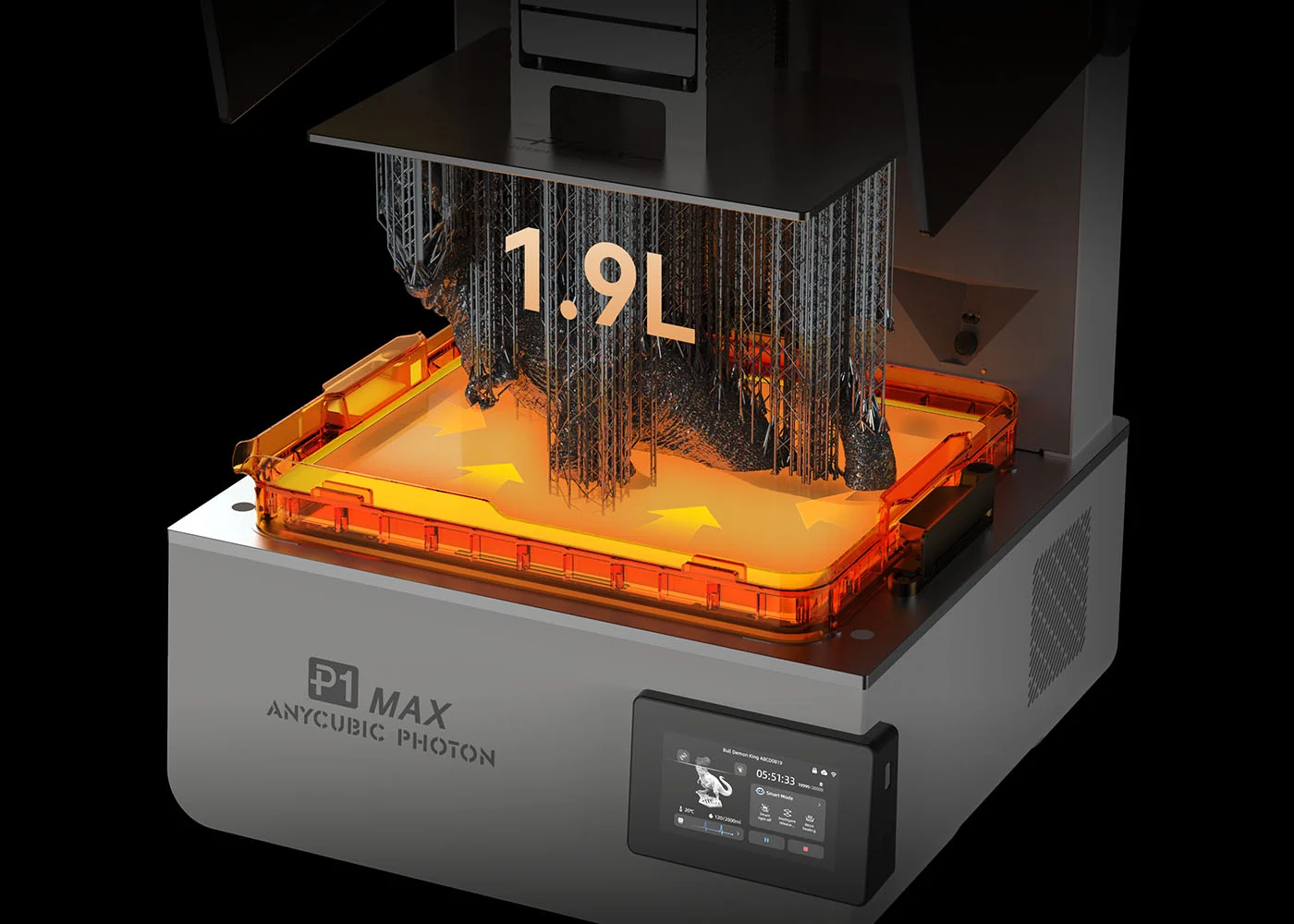

Optimal Resin Flow: 1900ml Thermal-Controlled Resin Vat[4]
Featuring a 1.9L ultra-large thermal-controlled vat, this system supports 300mm models in a single print cycle. By actively maintaining a constant resin temperature of up to 35 °C, it ensures optimal viscosity for maximum success rate.
*Heating performance is subject to resin vat capacity and ambient temperature. At ≥5℃ (41°F) ambient, the vat achieves up to 35℃ (95°F). Below this threshold, maximum temperatures may vary.

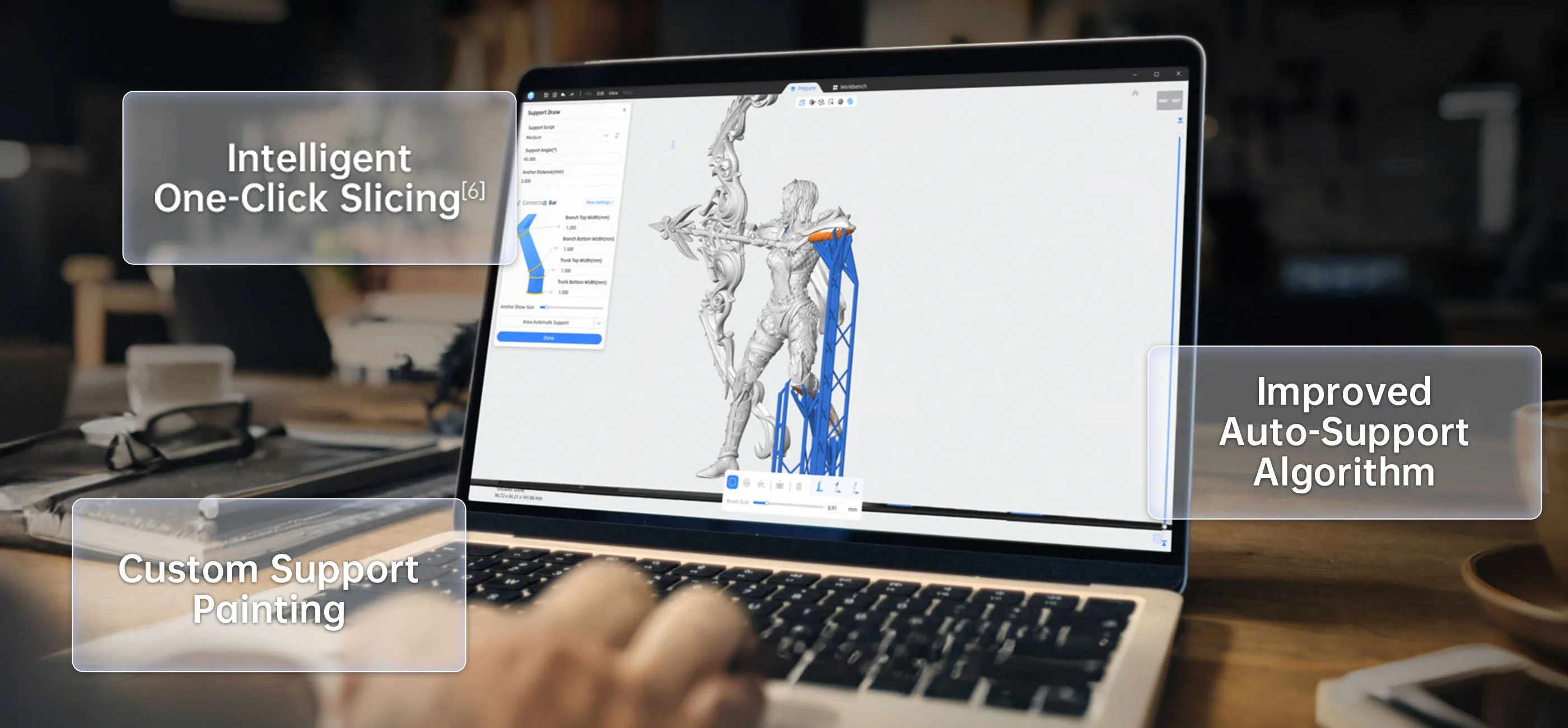

The All-New Photon Workshop 4.0

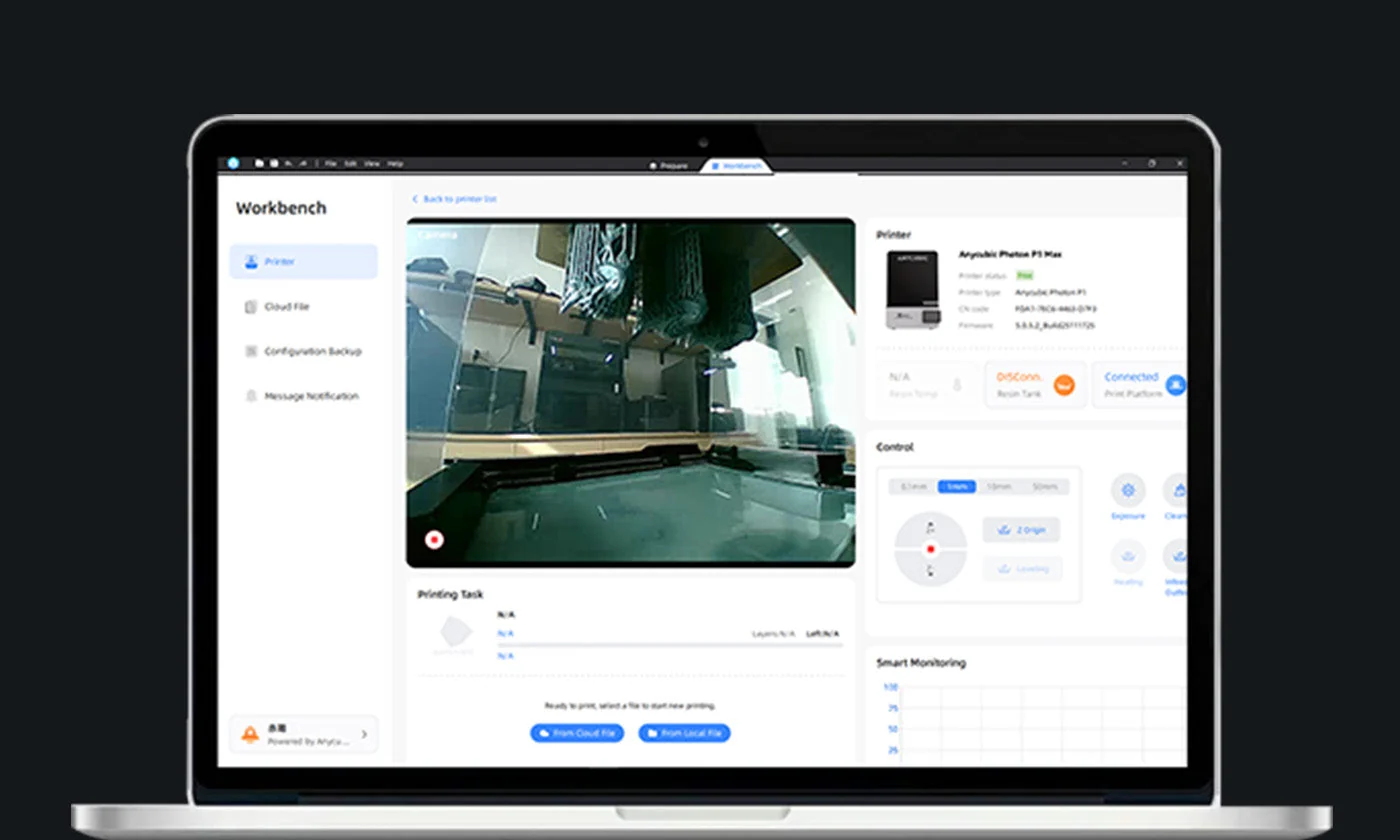

Remote OperationIntegrated camera enables remote printing submission and real-time progress monitoring via Anycubic App.

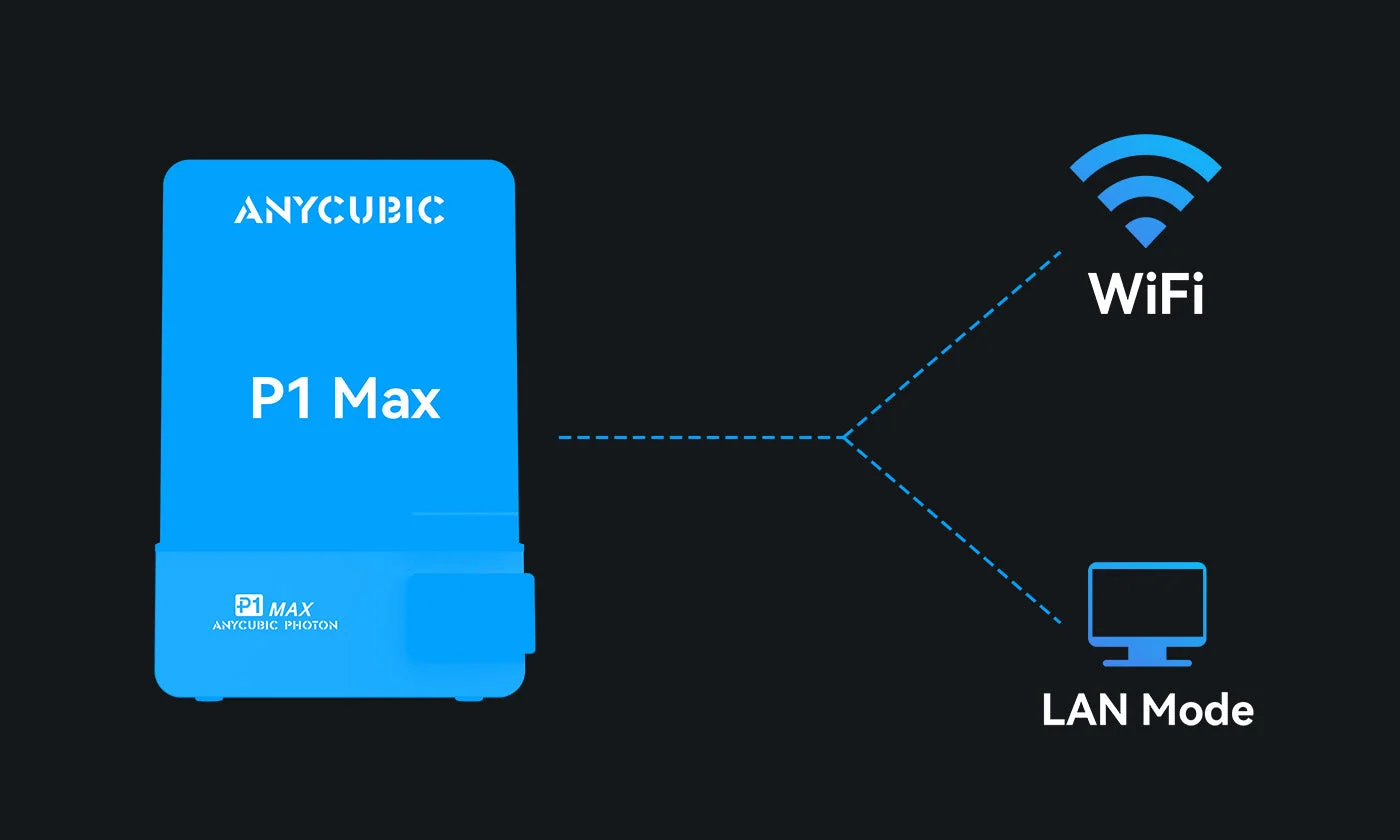

Dual-Network CnnectivityWi-Fi + Ethernet support ensures secure file transfers and full privacy protection with LAN isolation mode.
Makeronline, One of the Biggest Online Model Libraries
- Massive Model Library
- Monetize Your Designs
- Global Knowledge Exchange
- AC Wiki Troubleshooting Expert
Technical Specifications
Detailed hardware & material parameters
| Item | Specification | |
|---|---|---|
| General | Brand | ANYCUBIC |
| Category | Resin 3D Printer | |
| Core Printing Performance | Printing Volume | 285.5*214*300mm³ |
| Printing Speed | 15-25 mm/h (0.05 mm layer, Std Resin) | |
| Layer Height Range | 0.02-0.15 mm | |

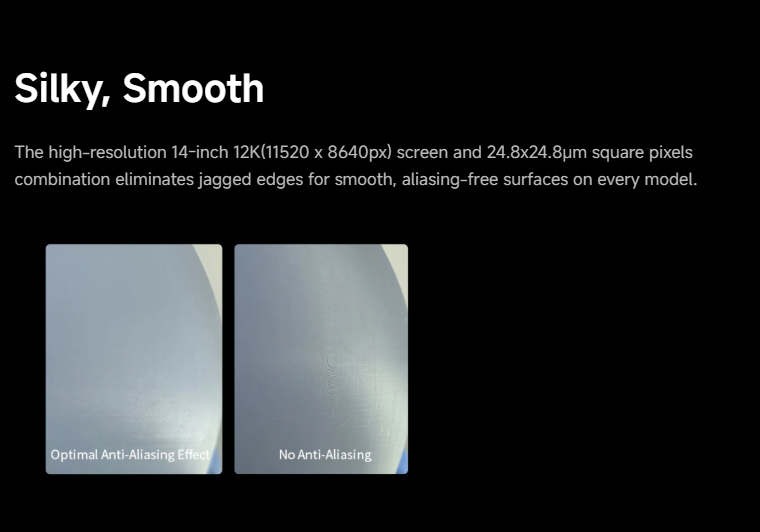

| X/Y Axis Resolution | 24.8 × 24.8 μm | |
| Light Source | COB + Fresnel + Mask | |
| Light Intensity | ≥4000μW/cm² | |
| Material Compatibility | All Anycubic Resins | |
| System & Mechanical Design | Build Platform | Precision-ground Steel Platform |

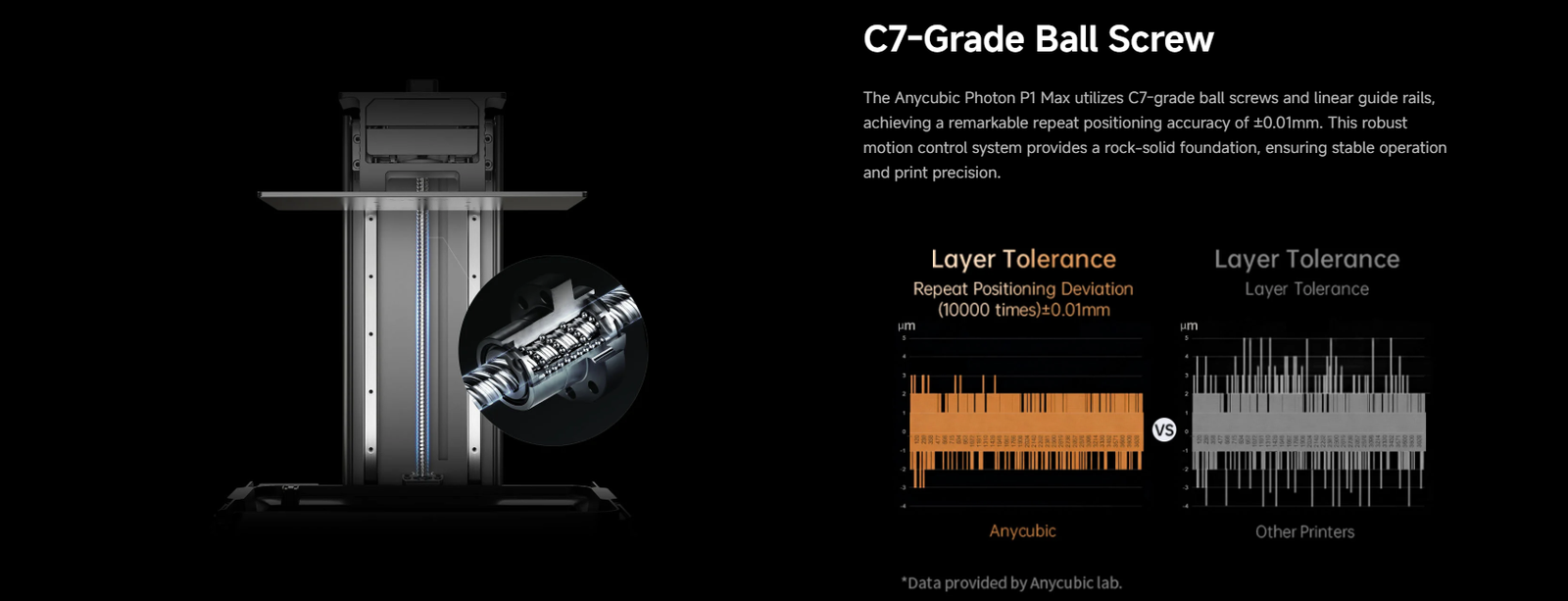

| Z Axis | Dual linear guide rails + Ball lead screws | |
| Release Film | NFEP | |
| Resin Vat | 1.9L | |
| Machine Leveling | Leveling-Free 3.0 + Leveling Feedback + Leveling Self-Check | |
| Power Loss Resume | Supported | |
| Power Supply | 296W | |
| Protection Film | Wave Release Film | |
| Resin Auto Fill Unit | Not Supported | |
| Dynamic Temperature Control Resin Vat | Supported | |
| Slicing Software | Photon Workshop( + Chitubox/Lychee/Tango) | |

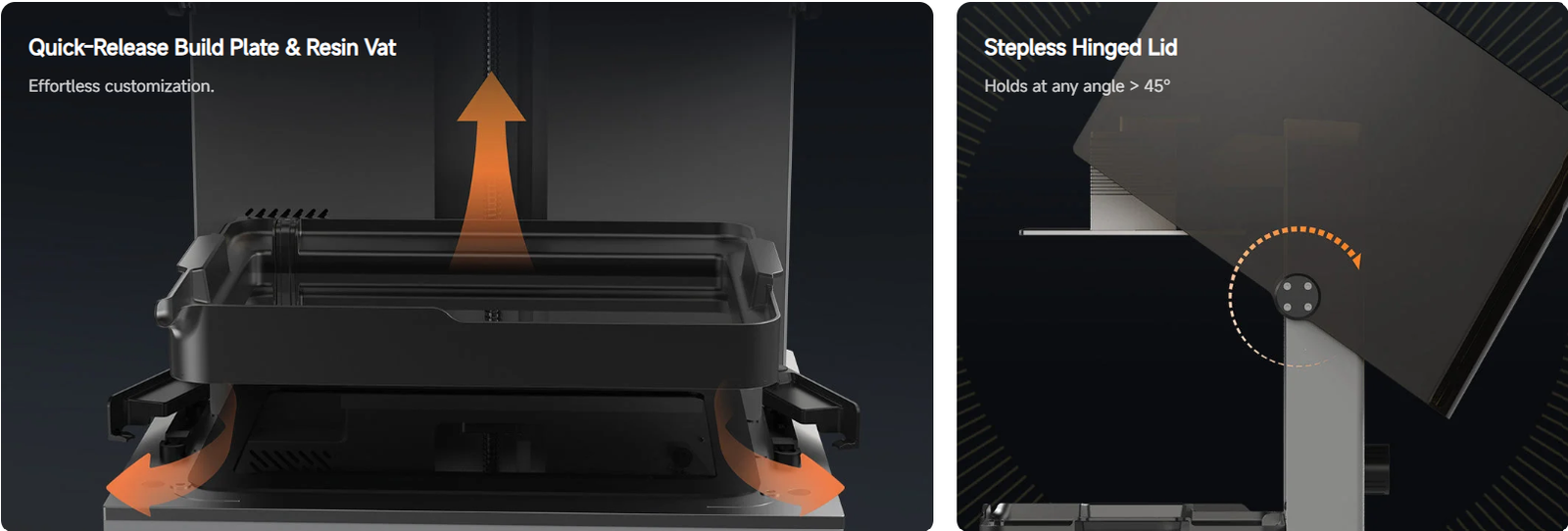

| Experience & Features | Hinged Cover | Smooth Hinge (>45° stepless) |
| Operating Screen | 4.5" Resistive Touchscreen | |

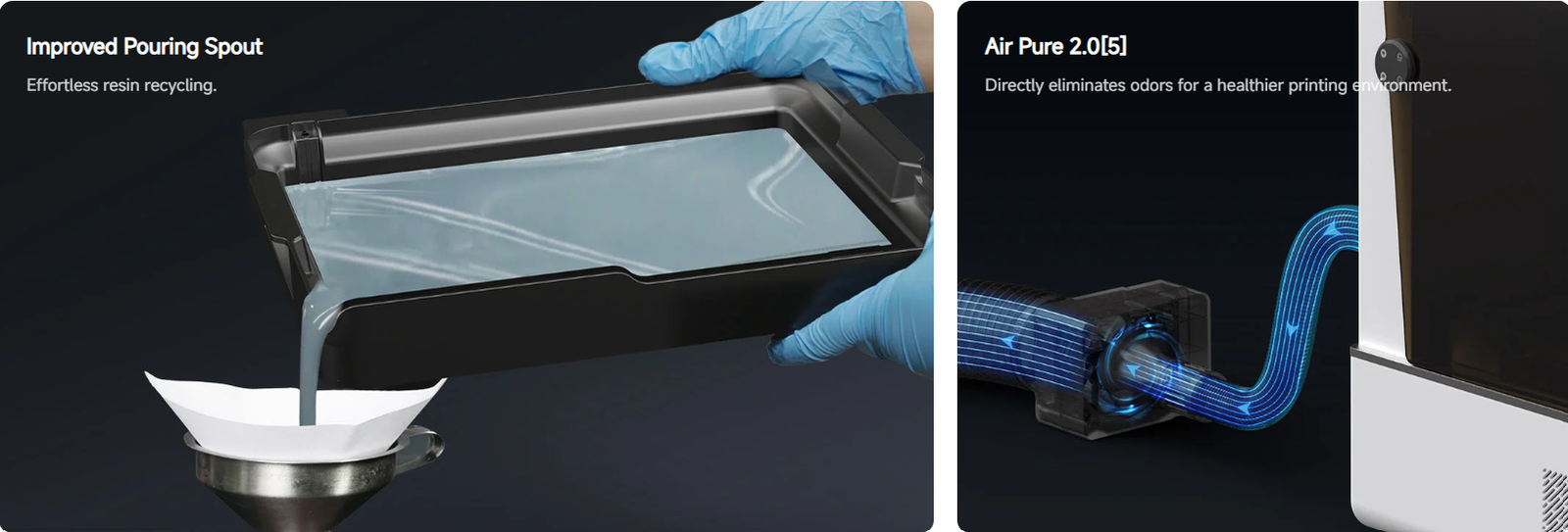

| Air Purifier | Optional AirPure 2.0 | |

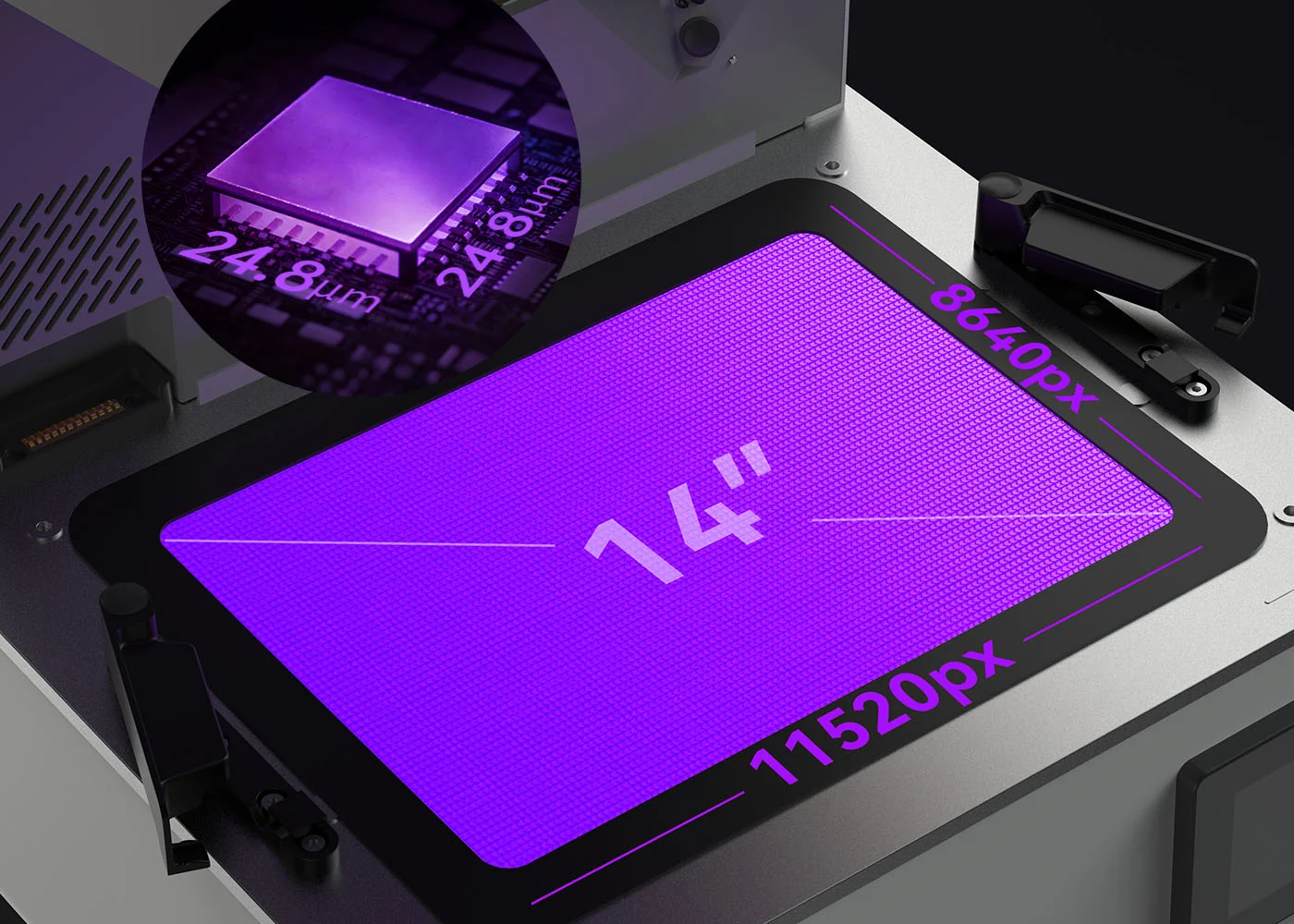

| Lcd Screen | 14" Monochrome LCD (12K) | |
| Anycubic App | Supported | |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP / PT / KR | |
| Machine Weight | 23.1kg | |
| Package Weight | 28.8kg | |
| Product Dimensions | 430*414*625mm³ | |
| Packaging Dimensions | 745*510*528mm³ | |
